ULTRASOUND BEAM PROFILES
DYNATRON® 25 SERIES™ | OPERATOR’S MANUAL 61
Ultrasound
Beam Proles
(For Dynatron 25 Series 825, and 925 users only. e Dynatron 25 Series 525 and 625 do not oer Ultrasound). e following

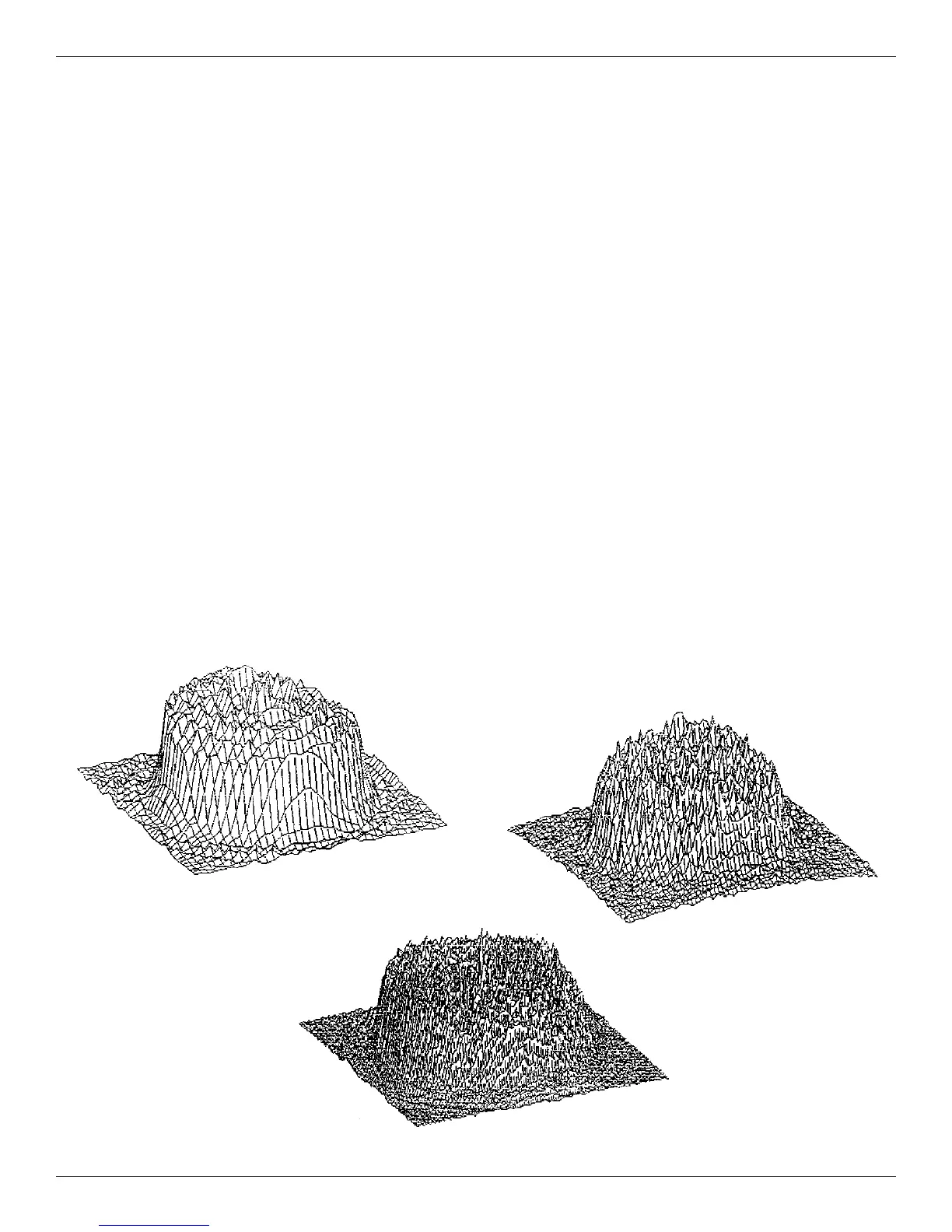

diagrams show the typical spatial distribution of the radiated eld for each size Dynatron 25 Series soundhead. is applies
to the radiation emitted into the equivalent of an innite medium of distilled, degassed water at 30˚ C and with line voltage
variations in the range of ±10 percent of the rated value.
10 cm
2
Head. Near Field
3 MHz
1MHz
2 MHz
