ULTRASOUND BEAM PROFILES
DYNATRON SOLARIS
®
PLUS SERIES | SERVICE MANUAL REV. 6 | AUGUST 29, 2017 89
Ultrasound
Beam Proles
(For Dynatron Solaris Plus 708, and 709 users only. e Dynatron Solaris Plus 705, 706, and 707 do not oer Ultrasound).

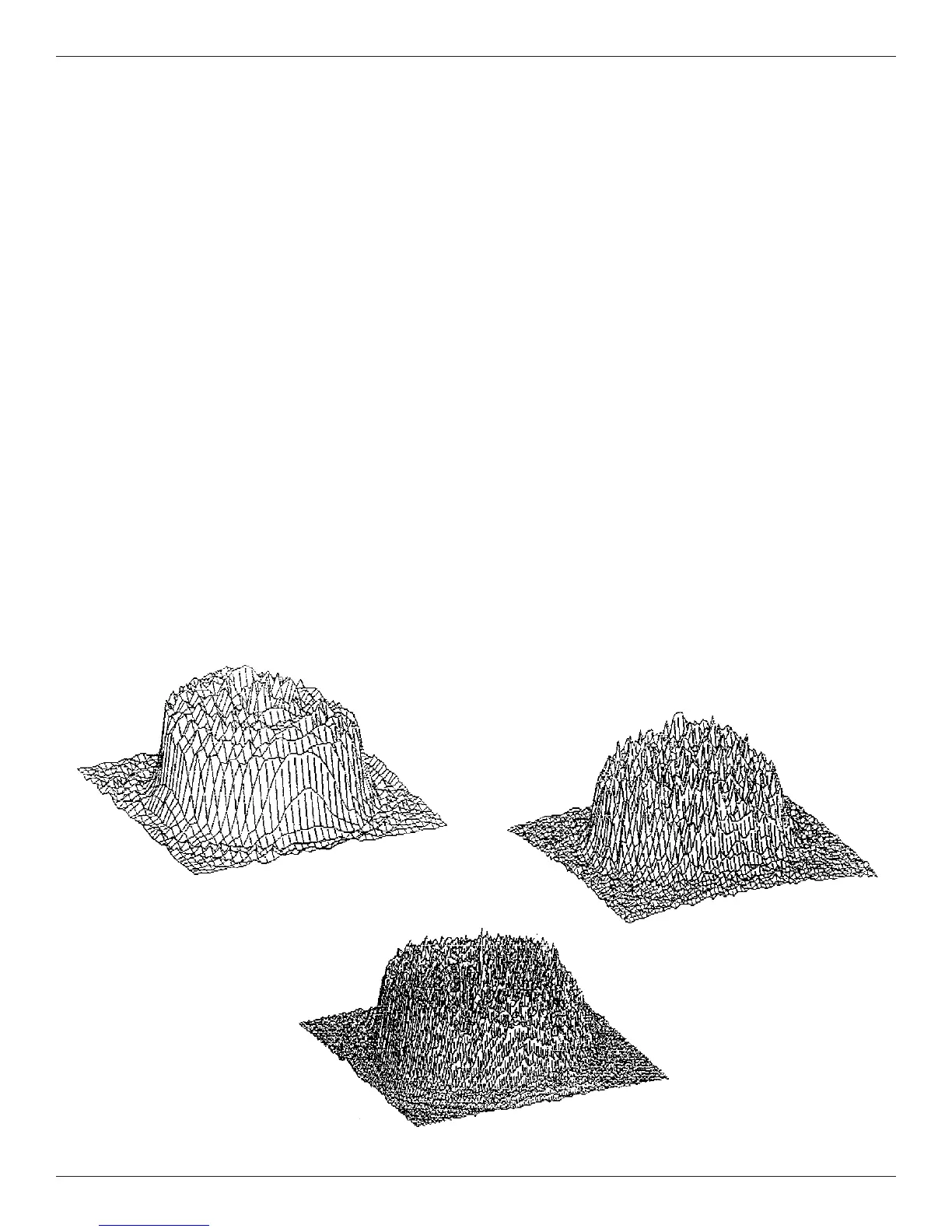

e following diagrams show the typical spatial distribution of the radiated eld for each size of Dynatron Solaris soundhead.
is applies to the radiation emitted into the equivalent of an innite medium of distilled, degassed water at 30˚ C and with
line voltage variations in the range of ±10 percent of the rated value.
10 cm
2
Head. Near Field
3 MHz
1MHz
2 MHz
