Dynaudio DBM50 User Manual

5

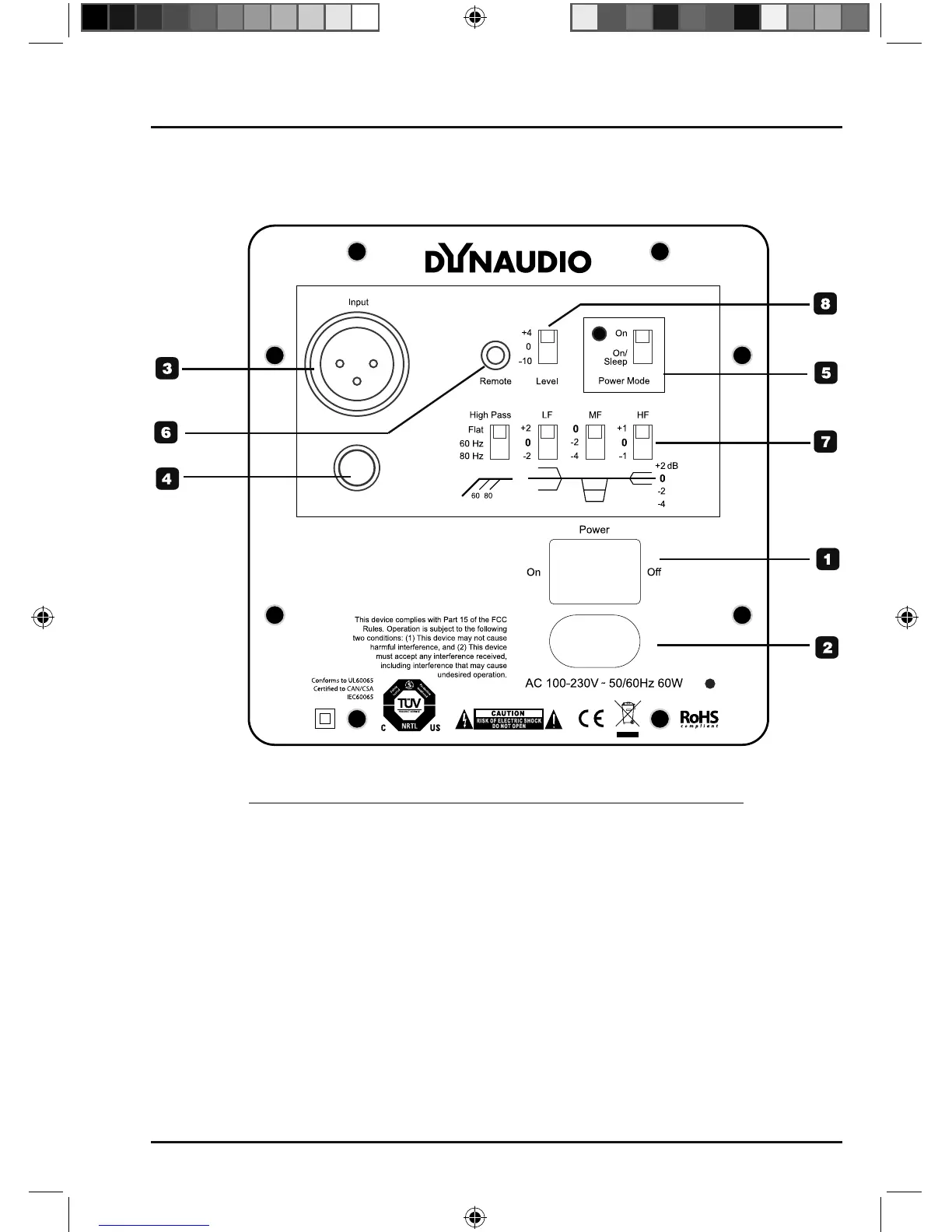

OVERVIEW - REAR PANEL
Correct setup and connections is essential to achieve optimal performance from your
monitors. Please follow the instructions on the following pages.
1. Power On/Off switch
2. AC power Input
3. Balanced analog input (XLR)
4. Unbalance analog input (RCA)
5. Power Mode switch
6. Remote
7. Filter switches
- High Pass
- LF - Low filter setting
- MF - Mid filter setting
- HF - Hi filter setting
8. Level - Sensitivity switch
DBM50_prelim_2402_2012.indd 5 15-03-2012 14:36:11
