It is better to add a circuit breaker between the inverter and the battery system. The
selection of the circuit breaker requires:
Voltage: U>60V
Current: I =Inverter power/45V

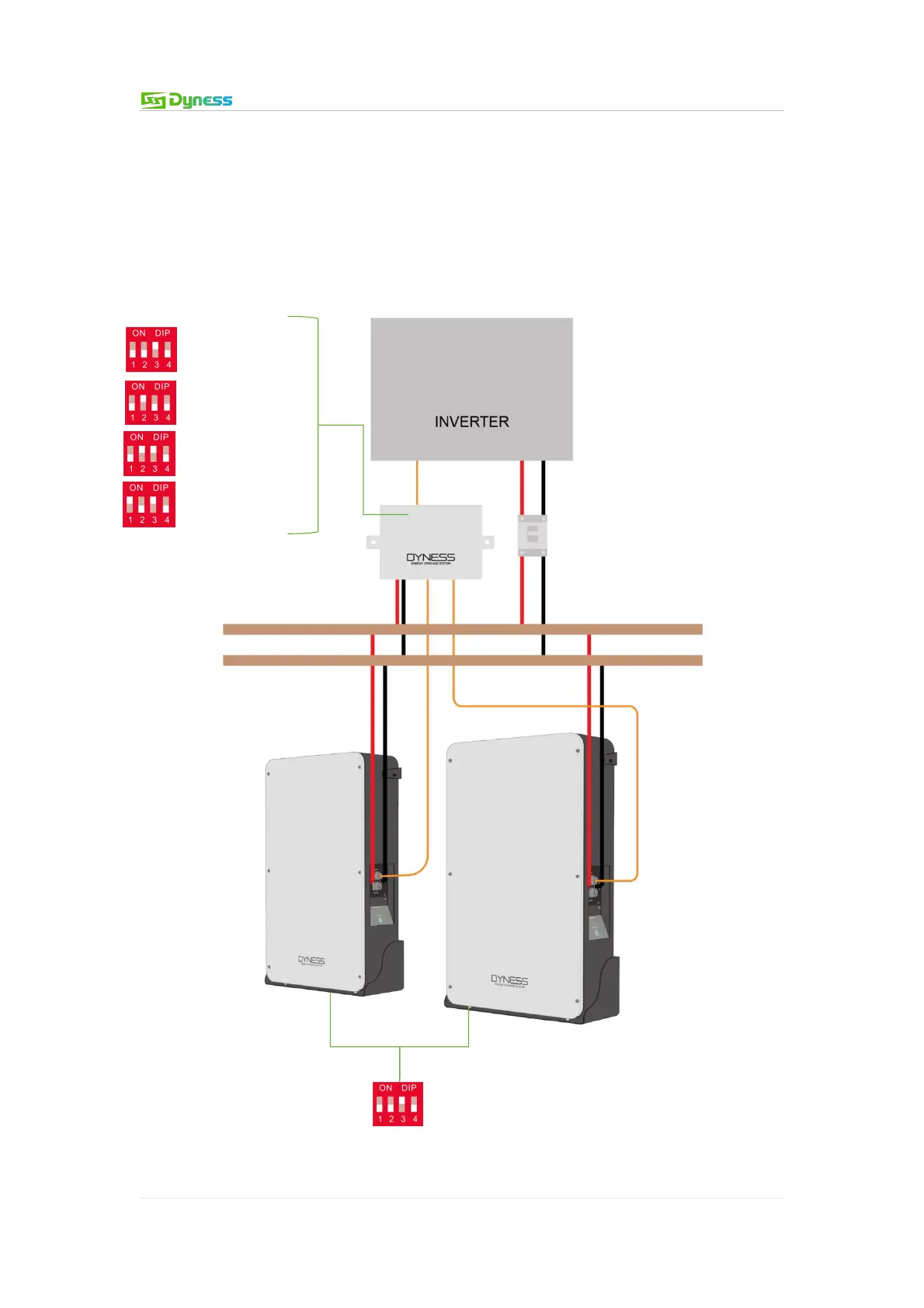

The circuit breaker is installed between the battery module and the inverter, as shown in
Figure 3-5:
Figure 3-5
