Dynisco ATC770-0-2-3 User Manual

40
upper display shows the selected type. Press the ▼ or ▲ keys until the upper display changes to the
desired value. Then press the FUNC key to lock in the value. Press A/M to return to the operating
screen.

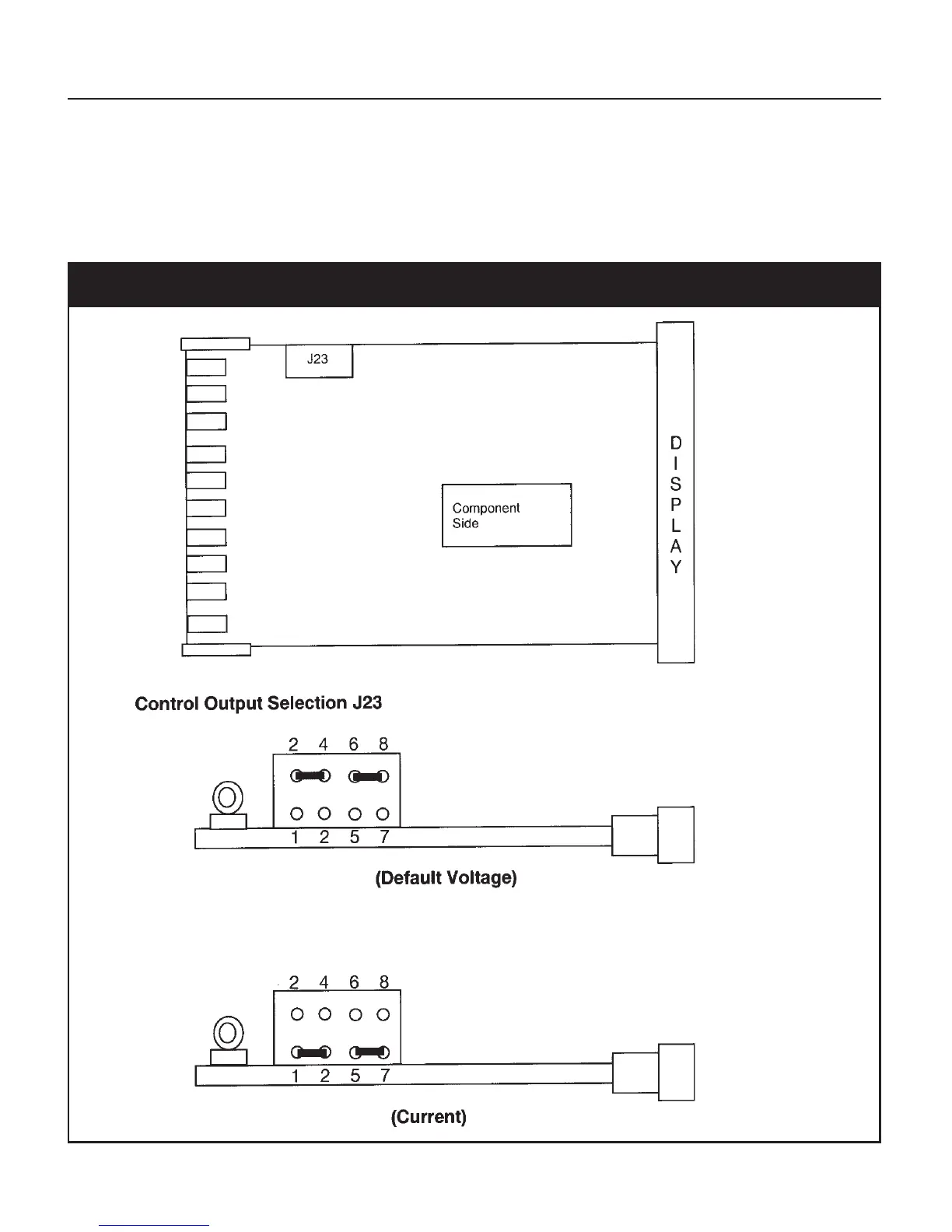

Next, select the jumper setting necessary. See Figure 10 below:
Fig. 10 Input/Output Jumper Location

Dynisco ATC770-0-2-3 Specifications

General

Brand	Dynisco
Model	ATC770-0-2-3
Category	Controller
Language	English
