42
using jumpers. To select the voltage or amperage range, press the FUNC key until
nonE
and
GROUP
show on the display. Press the ▲ key until
5
shows in the upper display. Press the FUNC
key until the lower display shows
CO.TYP
. Using the ▼ or ▲ keys, select the desired value:
0-5
(VDC),
0-20
(mA),
4-20
(mA),
0-10
(VDC), or
-10.10
(VDC). When finished, press the FUNC key to
lock in the value and A/M to return to the main screen.

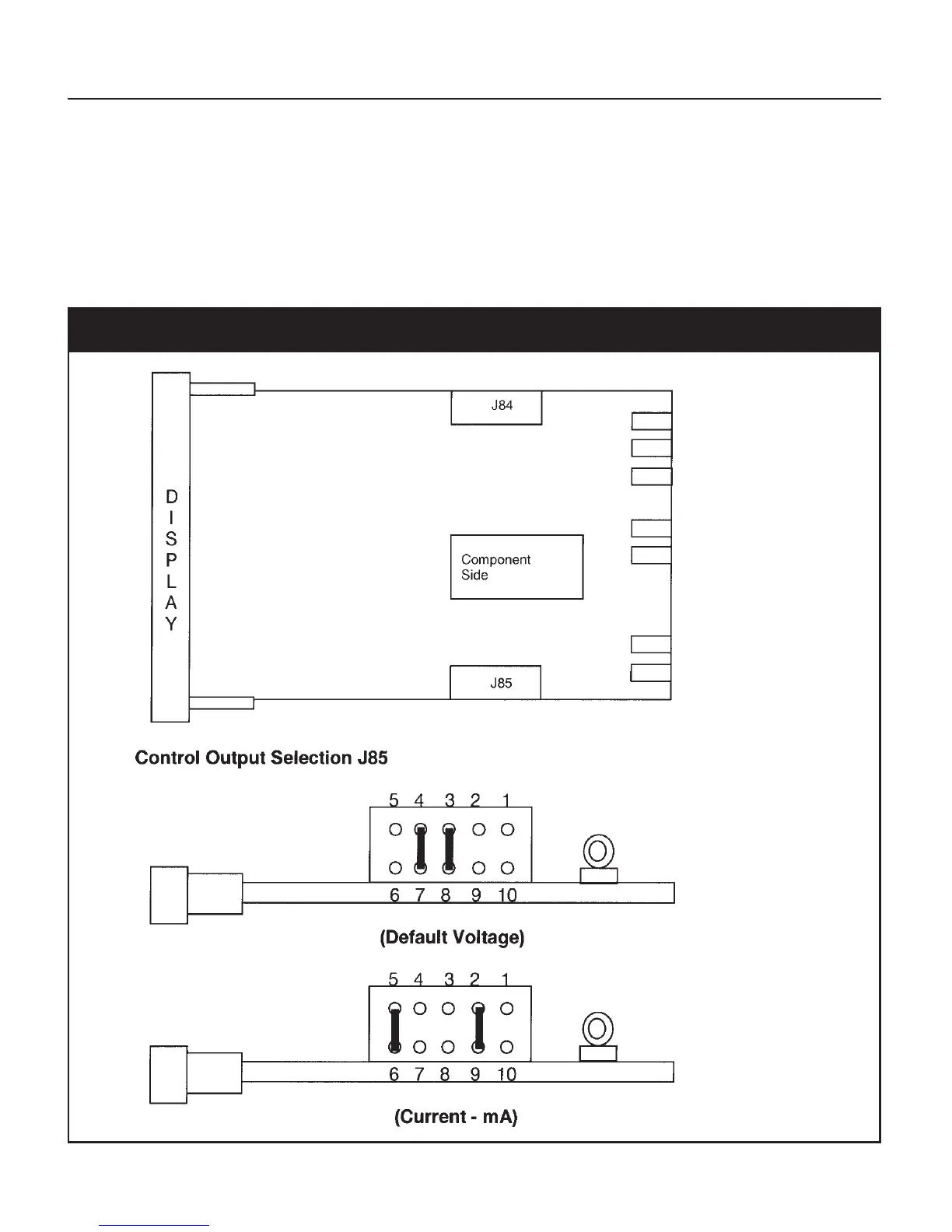

Next, select the jumper setting necessary. See Figure 11 below:
Fig. 11 Input/Output Jumper Location
