CHAPTER 1
Model 250i Motorcycle Dynamometer
Above Ground Model 250i Motorcycle Dynamometer Installation Guide
1-12
MODEL 250i MOTORCYCLE DYNAMOMETER

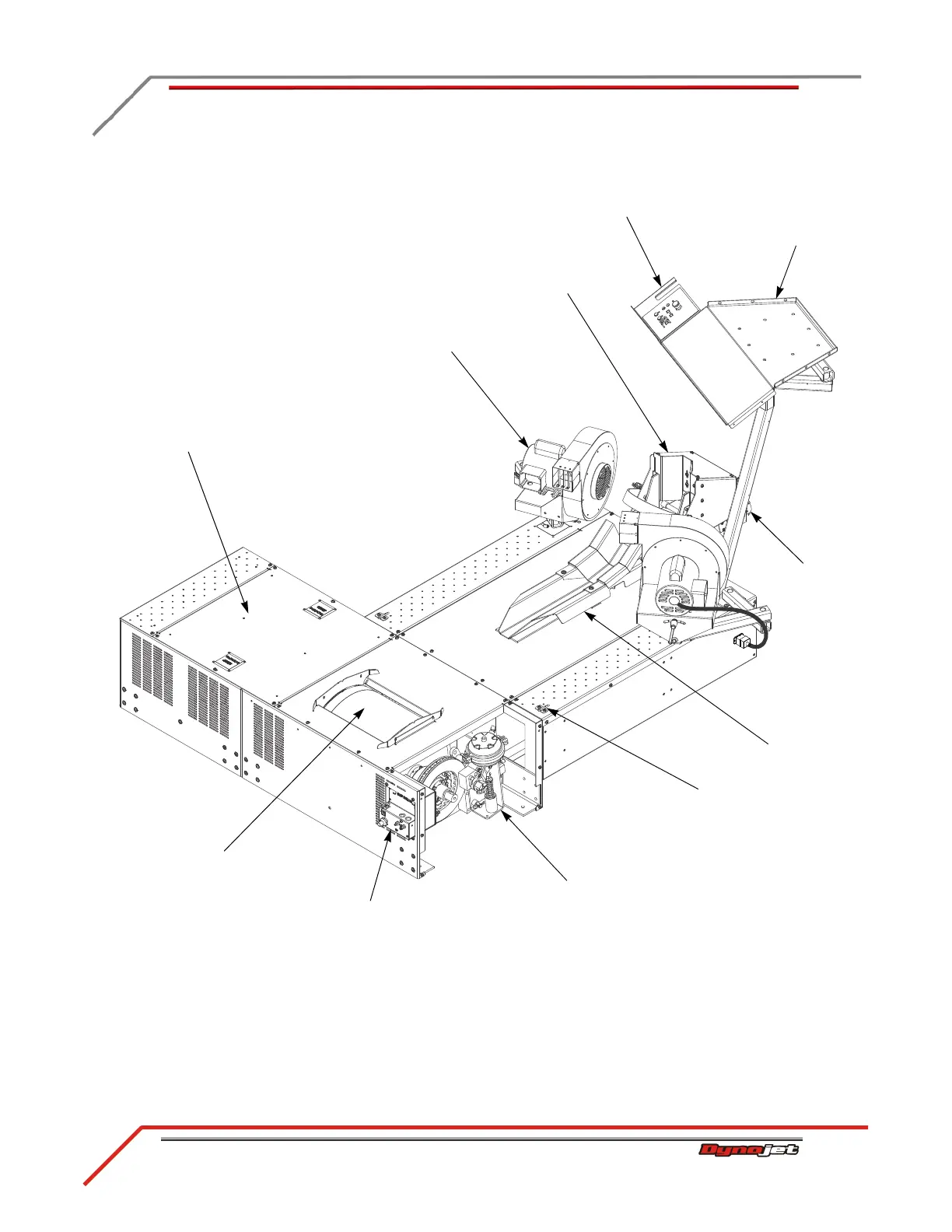

Figure 1-4: Model 250i With Optional Accessories
MC157
High Pressure Blower
cools the bike’s engine
Eddy Current
Brake Module
Air Brake
Air Pump
Assembly
Power
Carriage
Monitor Tray
supports the monitor,
keyboard, and mouse
Tire Carriage
Tie-down Loop
used to secure the
motorcycle to dyno
Drum
precision balanced
and knurled
Wheel Clamp
Control Panel
