CHAPTER 2
Eddy Current Brake Installation
Above Ground Model 250i Motorcycle Dynamometer Installation Guide
2-22
8 Secure the side panels on the eddy current brake to the panels on the dyno using a
1/4-20 bolt. Do this on each side.

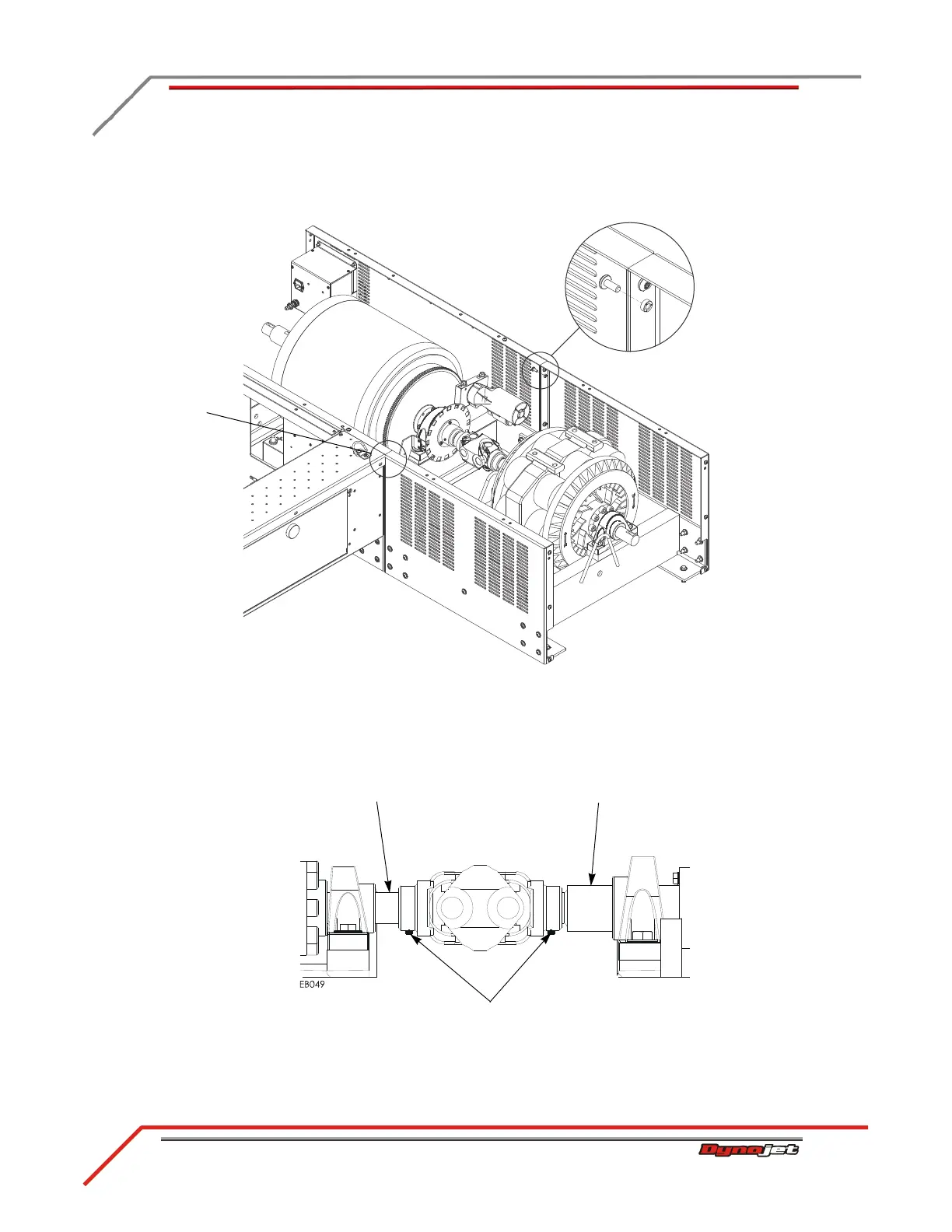

Figure 2-18: Secure the Side Panels to the Dyno
9 Replace the existing set screws on the coupler with the thread-lock set screws
provided.
10 Tighten the coupler set screws.
Figure 2-19: Tighten the Set Screws
not visible from
this view
brake shaft
dyno shaft
set screw
To Next Page
