2-27
DYNO INSTALLATION
Support Arm and Monitor Tray Installation
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide

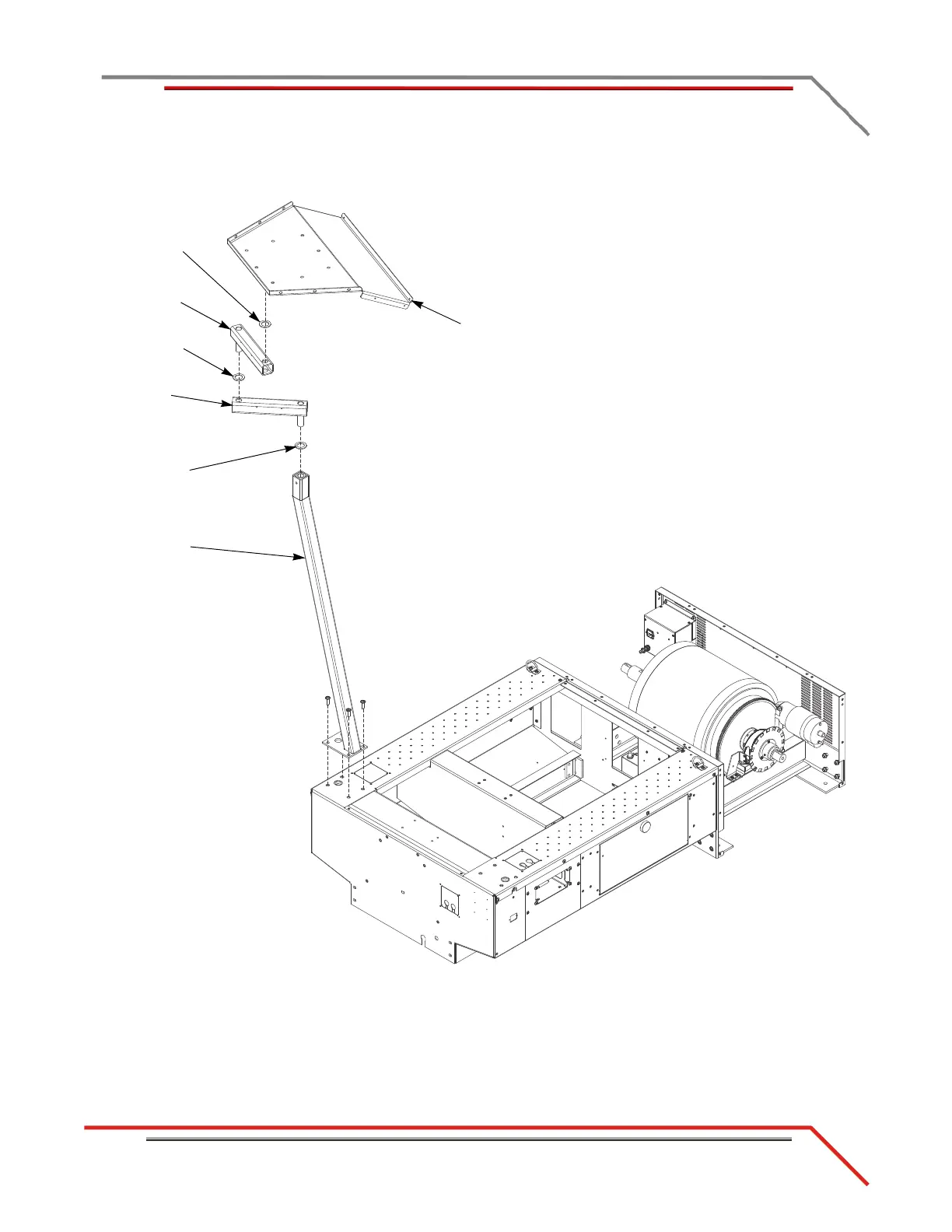

Figure 2-24: Install the Support Arm and Monitor Tray
MA021
second arm
poly washer
first arm
monitor tray
support arm
poly washer
poly washer
