ACCESSORIES
Extended Carriage
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
3 Secure the extended carriage strap to the dyno using two 5/16 x 1-inch bolts and
two 5/16-inch lock washers.
4 Secure the strap to the support bracket using two 5/16 x 1-inch bolts,
two 5/16-inch lock washers, two 5/16-inch flat washers, and two 5/16-inch nuts.
Note: If your support bracket does not have holes, use the strap as a template to
drill them.

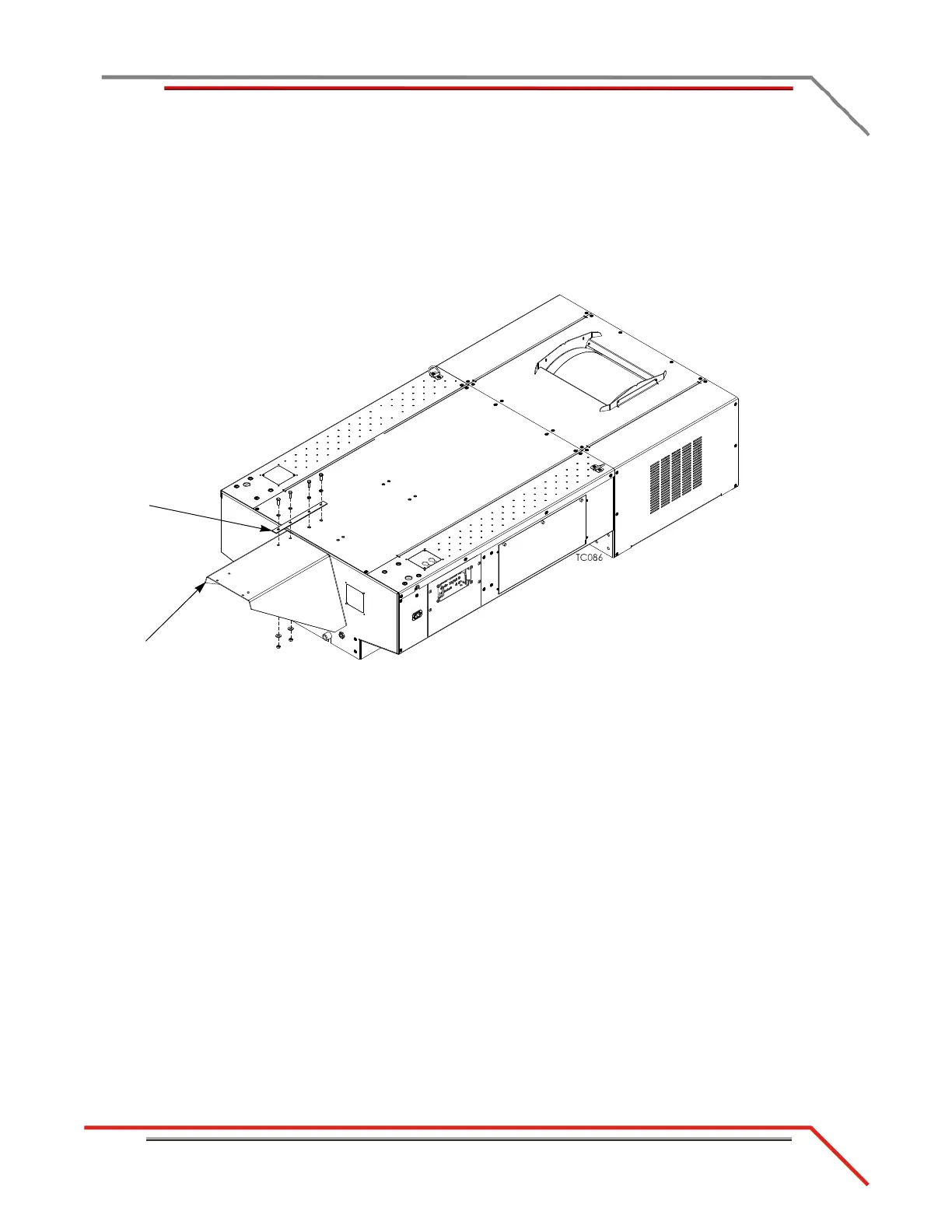

Figure 3-20: Secure the Strap to the Dyno and Support Bracket
To Next Page
