Wiring Overview
WIRING SYSTEM OVERVIEW

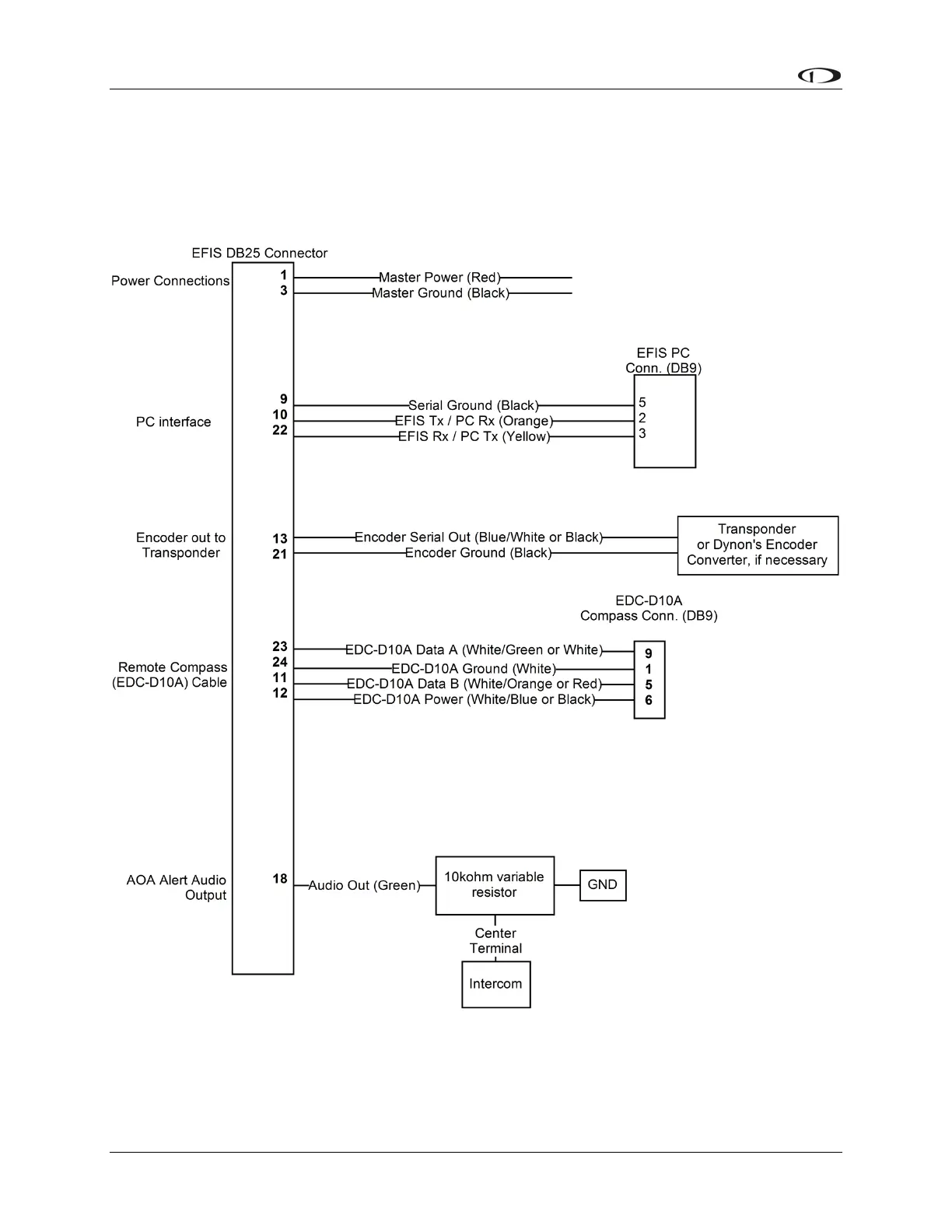

The following block diagram depicts the basic layout of the EFIS DB25 electrical connections
and is for reference only. Read the specific instructions for each connection prior to installation.
The colors shown refer to the Dynon-supplied EFIS harness.
2-4 EFIS-D6 Installation Guide
