SkyView System Installation Guide - Revision AA 17-1
17. SV-COM-X83 Installation and Configuration
Note: SV-COM-X83 is the complete radio system, consisting of the SV-COM-PANEL
control panel installed on the panel, and the SV-COM-T8 transceiver installed
elsewhere.
Installation instructions for the SV-INTERCOM-2S (referenced in these instructions)
has its own, separate manual with much more technical detail than is included in
this guide, available for download at http://docs.dynonavionics.com.
Do not transmit without an antenna connected. Doing so will damage your SV-
COM-X83.

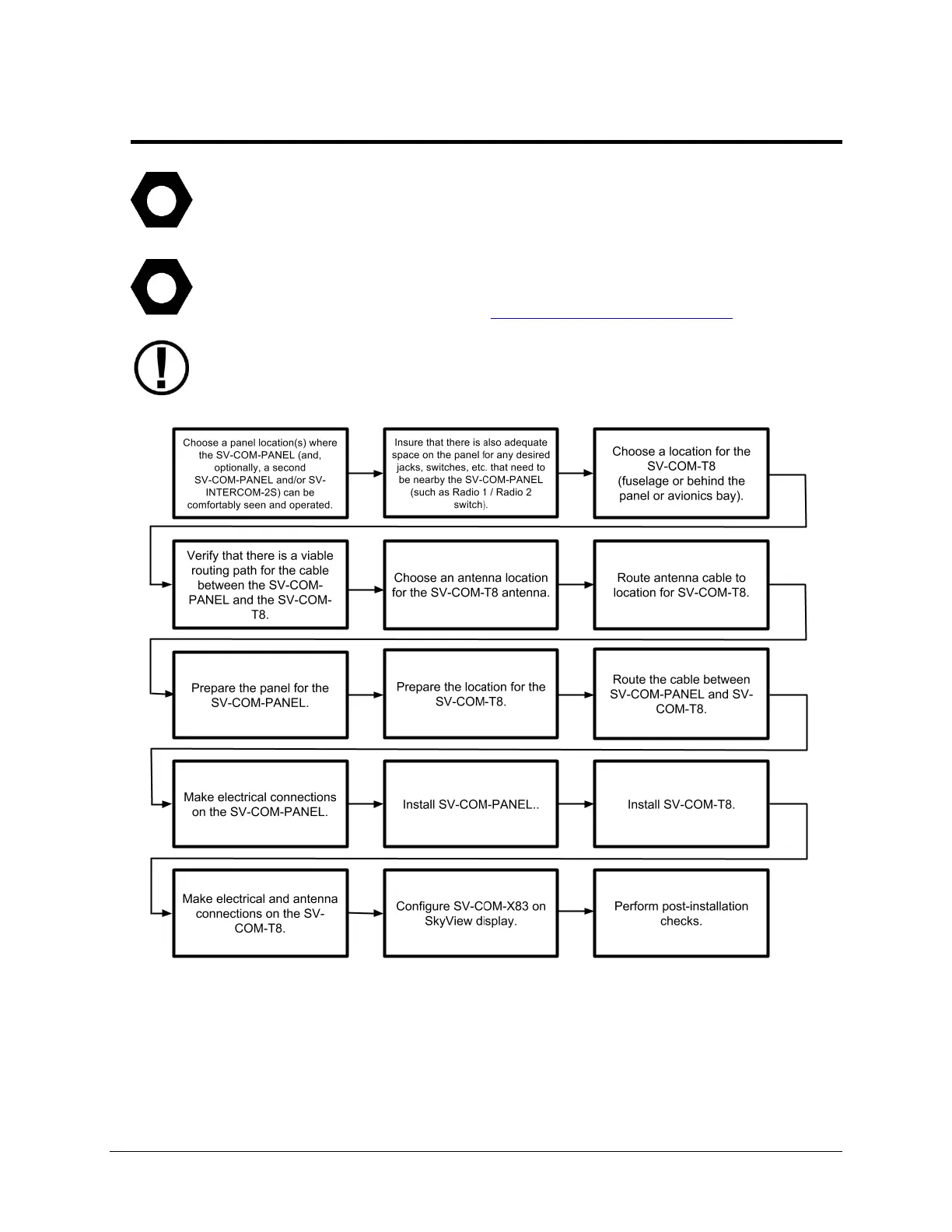

Figure 184 – Suggested SV-COM-X83 Installation, Configuration, and Testing Procedure
