Service manual
Fitting notes

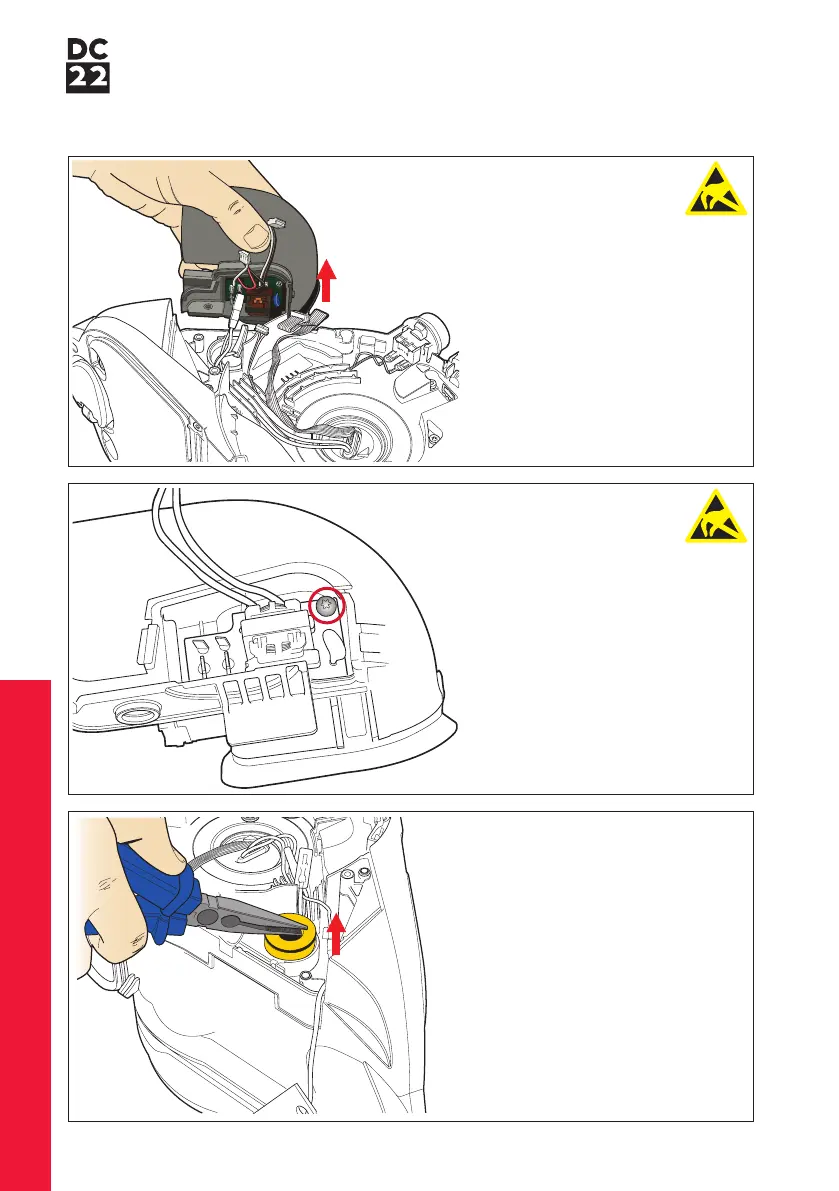

44 If the cyclone inlet assembly
or PCB assembly EMC need
replacing the parts should be
separated by undoing the Torx T-8
screw.
43 Lift the cyclone inlet assembly off
the side of the product.
45 If any of the parts that make up
the bleed valve need replacing,
they can be removed at this stage
using a pair of long nosed pliers.
AC models only
25
Models with finger
tip controls only
