Dyson Pure Cool Service Manual

02
02
Ensure that at all times during the repair and testing of products
that customers, pets, children and you are not exposed to any
Live electrical supply.
Insulation test
The following tests must be performed prior
to and upon completion of all repairs to
Dyson floorcare products and before any
functional checks.
You must ensure that a full visual inspection
of the product is completed prior to repair.
Test results
An insulation test reading of >2 MW
is acceptable.
A reading of below 2 MW is considered
unsafe and further investigation,
rectification and testing must be completed
before the product is used. The following
components must be visually inspected.
• Dust sensor loom and AMP assembly
loom.
The socket and see PDIT 360
(or equivalent) should be used to test
the electrical insulation of a Class 11
appliance; it indicates any electrical
leakage.
Insulation test points:

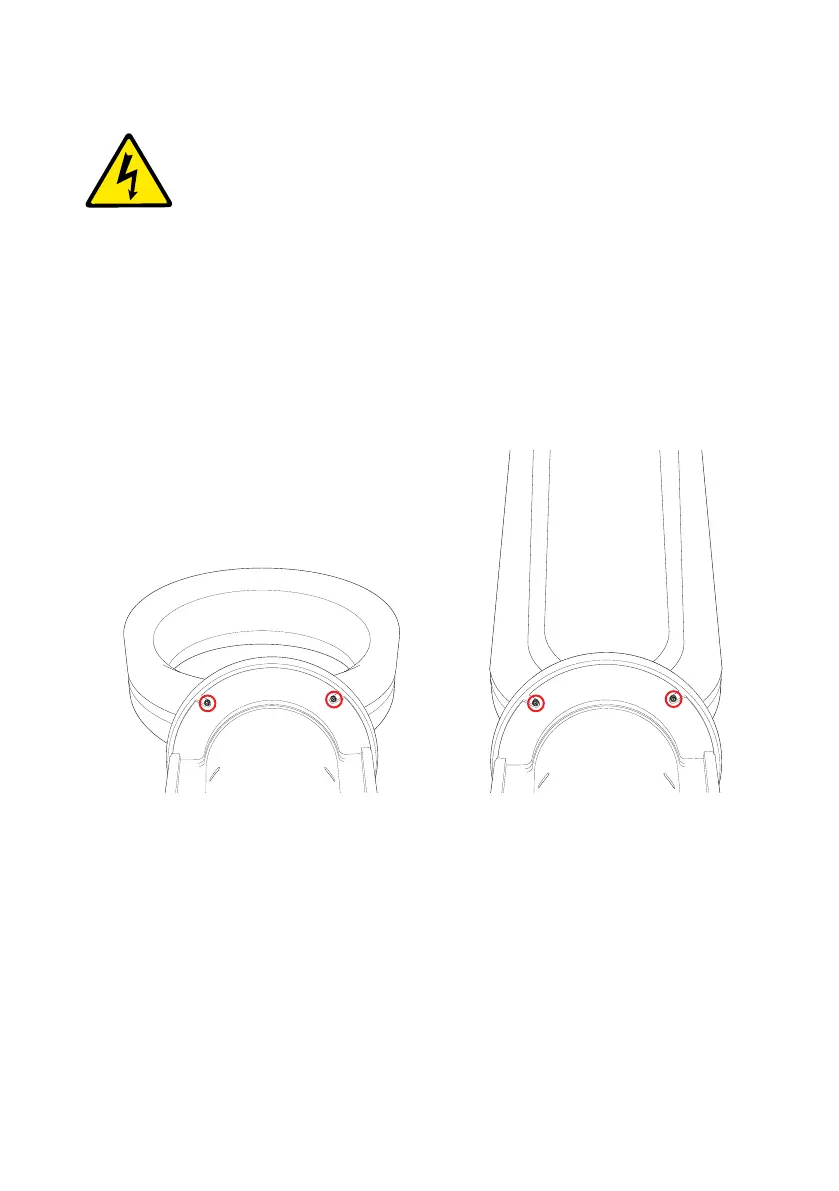

Test directly onto the four T-10 screws in the
Main body.
Note: the filters will need to be removed to
gain access to the screws.
These tests are vital to avoid any possibility
of personal injury to the end user.
If you cannot repair a product with an
insulation test reading of below 2MW you
must inform the customer that the product is
unsafe to use.
Please inform the customer of the required
actions to repair the product (including the
charge structure).
If the product is left un-repaired please
indicate on your paperwork/hand held
device that the product is electrically
unsafe and attach a ‘WARNING’: product
electrically unsafe’ sticker in
a visible location on the product.
Technical infomation
Electrical safety testing
03

Dyson Pure Cool Specifications

General

Placement	Floor
Product color	Anthracite, Blue
Built-in display	No
Efficiency	99.95 %
Night mode	Yes
Noise level	- dB
Air purify rate	- m³/h
Number of speeds	-
Suitable for room area up to	- m²

Weight and Dimensions

Width	355 mm
Height	616 mm
Weight	3120 g
