Accessing the diagnostic menu
Diagnostic menu
Built into DP04 and TP04’s software there is an engineers diagnostic menu designed to
enable the repair agent a quick diagnosis of the machines failure.
The menu is accessed by pressing a sequence of buttons via a standard remote control.
Once you have finished accssing the engineering menu, press any button on the remote
except the ‘i’ button to exit the diagnostic menu.
If the engineering screen does not appear press any button to reset and start again.
Repeat all steps ensuring the flow button is pressed between 11 and 13 seconds detailed in
step 3.

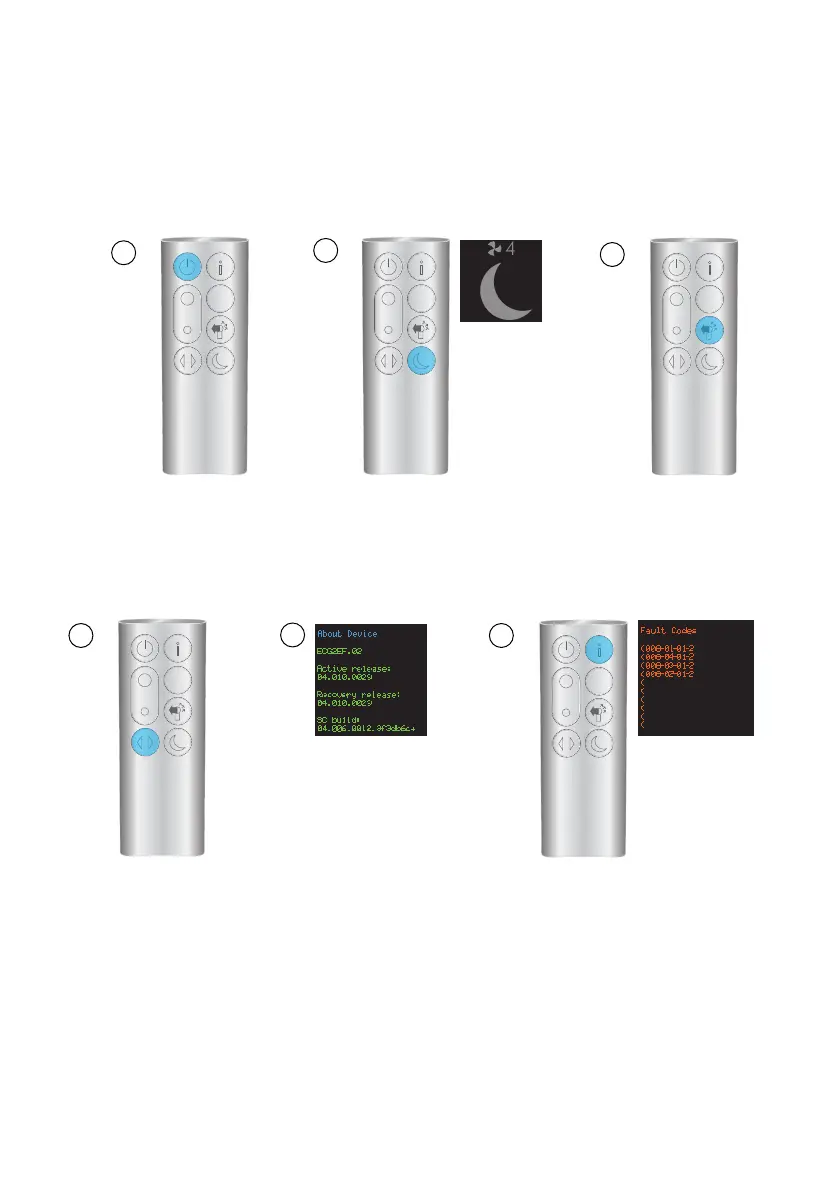

AUTO AUTO
AUTO
AUTO
AUTO
Switch
machine on.
Press night mode
button once.
Hold down flow
mode direction
button for 11 to
13 seconds.
Immediately press
the oscillation
button once.
Press i button three times to
show fault code screen
(the screen above is an
example).
1
3
4 6
5
2
Engineering screen
will appear.
