Rudder Throw

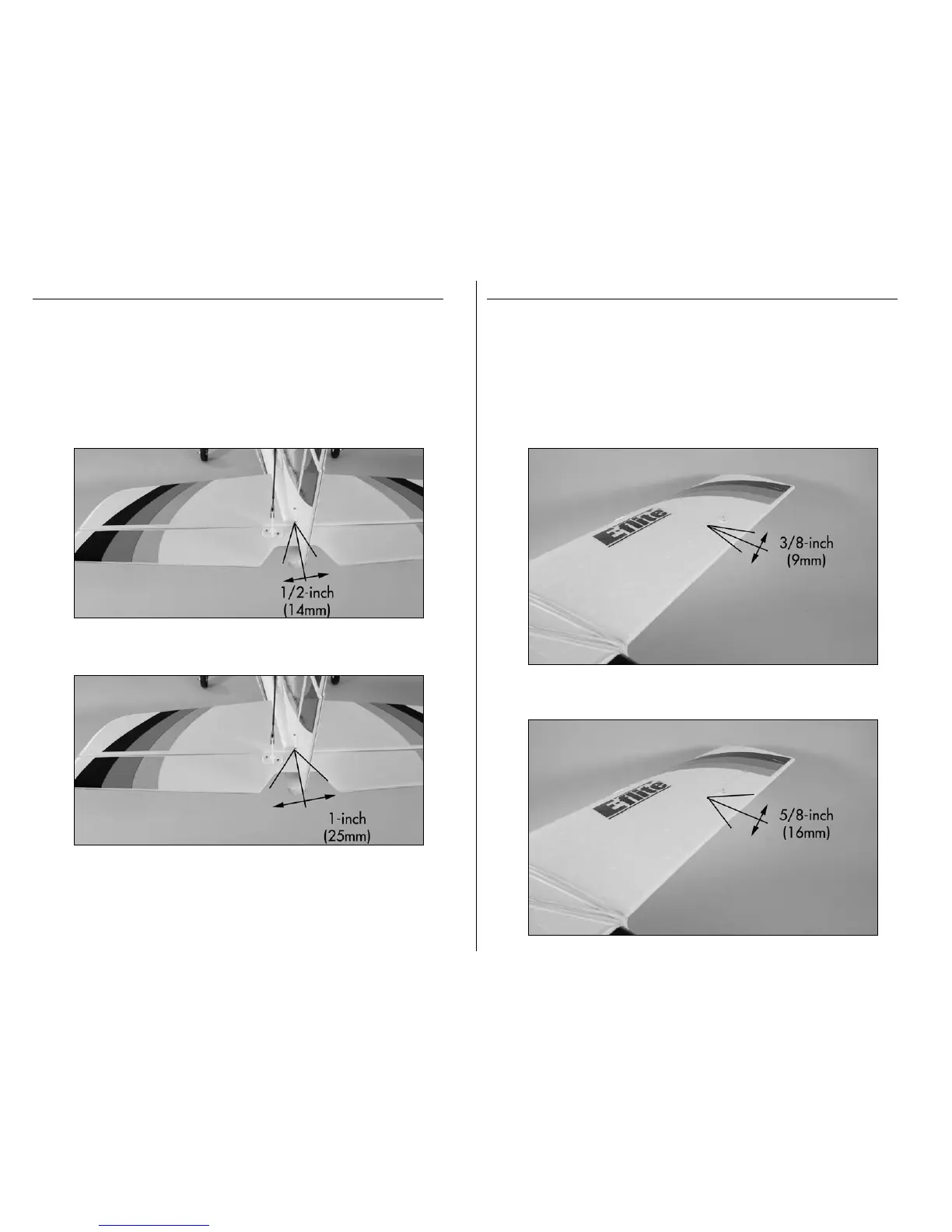

 4. Use a ruler to check the control throws on your rudder.
The dimensions are shown below. For your reference
the rudder pushrod is set up in the following holes: The
outside hole on the rudder control horn and the outside
hole on the rudder servo arm.
Low Rate: 1/2-inch (14mm) (Right/Left)
High Rate: 1
-
inch (25mm) (Up/Down)
Aileron Throw
 5. Use a ruler to check the control throws on the ailerons.
The dimensions are shown below. For your reference the
aileron pushrods are set up in the following holes: The
outside hole on the aileron control horn and the outside
hole on the aileron servo arm.
Low Rate: 3/8-inch (9mm) (Up/Down)
High Rate: 5/8-inch (16mm) (Up/Down)
