6 - Appendix
Word Clock In/Out
E-MU Digital Audio System 107
Word Clock
Word Clock
Word Clock Termination ON
Word Clock Termination OFF
SYNC CARD
DIGITAL BREAKOUT CABLE
IN
Digital Mixer
S/PDIF
Digital
IN
T - connector
S/PDIF
ADAT Optical

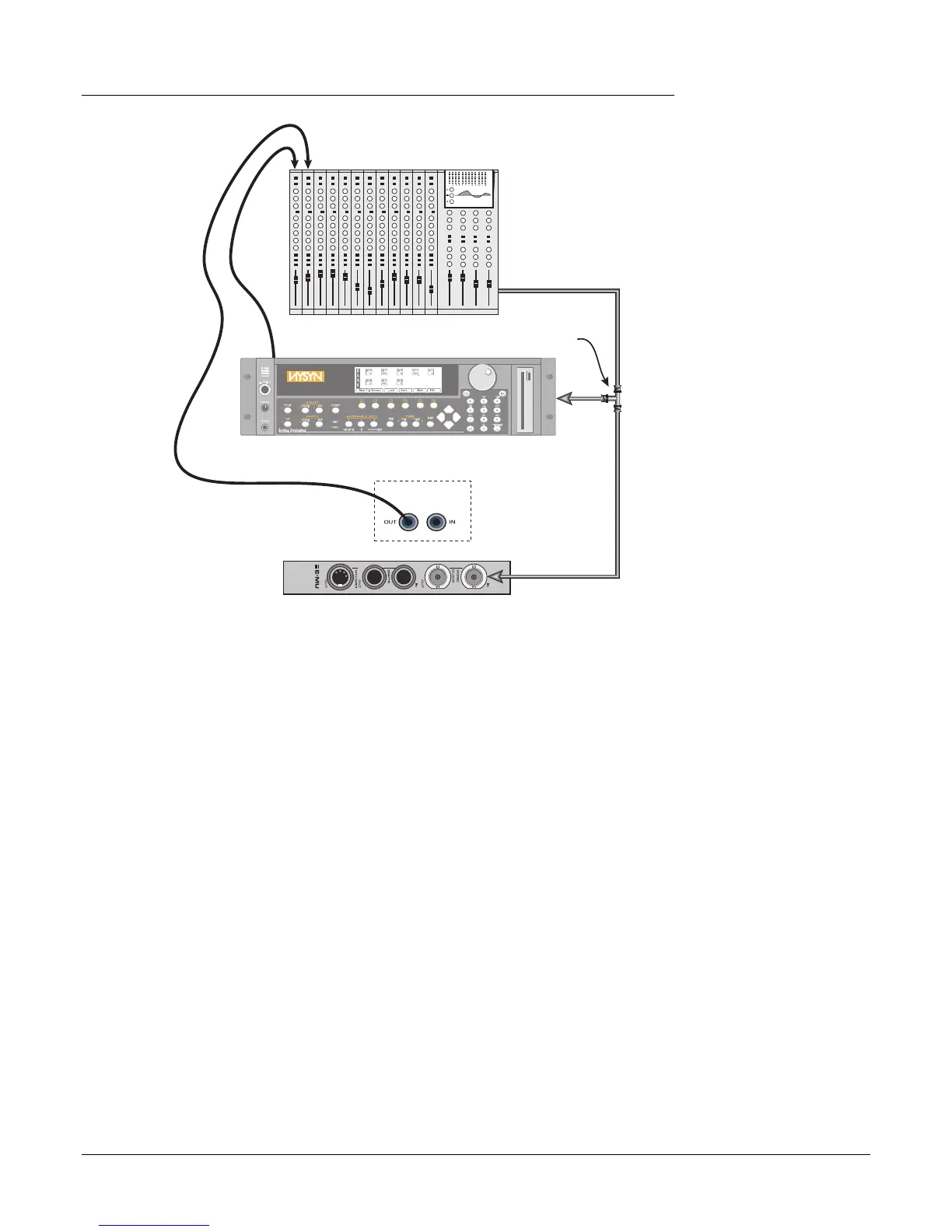

This diagram shows the proper way to connect word clock if you don’t have a multi-output
word clock generator. The last device in a Word Clock chain should have Termination ON.
