Install the Sync Card
12 Creative Professional
Install the Sync Card
1.
Unwrap the Sync Card if you have one and get ready to install it.
2.
Connect the ribbon cable provided with the kit between the E-MU 0404 card and
the Sync Daughter Card as shown in figure 3. The cable is keyed so it cannot be
incorrectly inserted. Seat the connectors firmly in the sockets and arrange the cable
neatly.
3.
Align the Sync Card with the slot and press gently but firmly down into the slot as
shown in figure 2 on the preceding page.
4.
Do not force the Sync Card into the slot. Make sure that the connector of the card is
aligned with the PCI bus connector on the motherboard before you insert the card
into the PCI slot. If it doesn’t fit properly, gently remove it and try again.
5.
Secure the card into the slot using one of the screws you placed aside earlier.

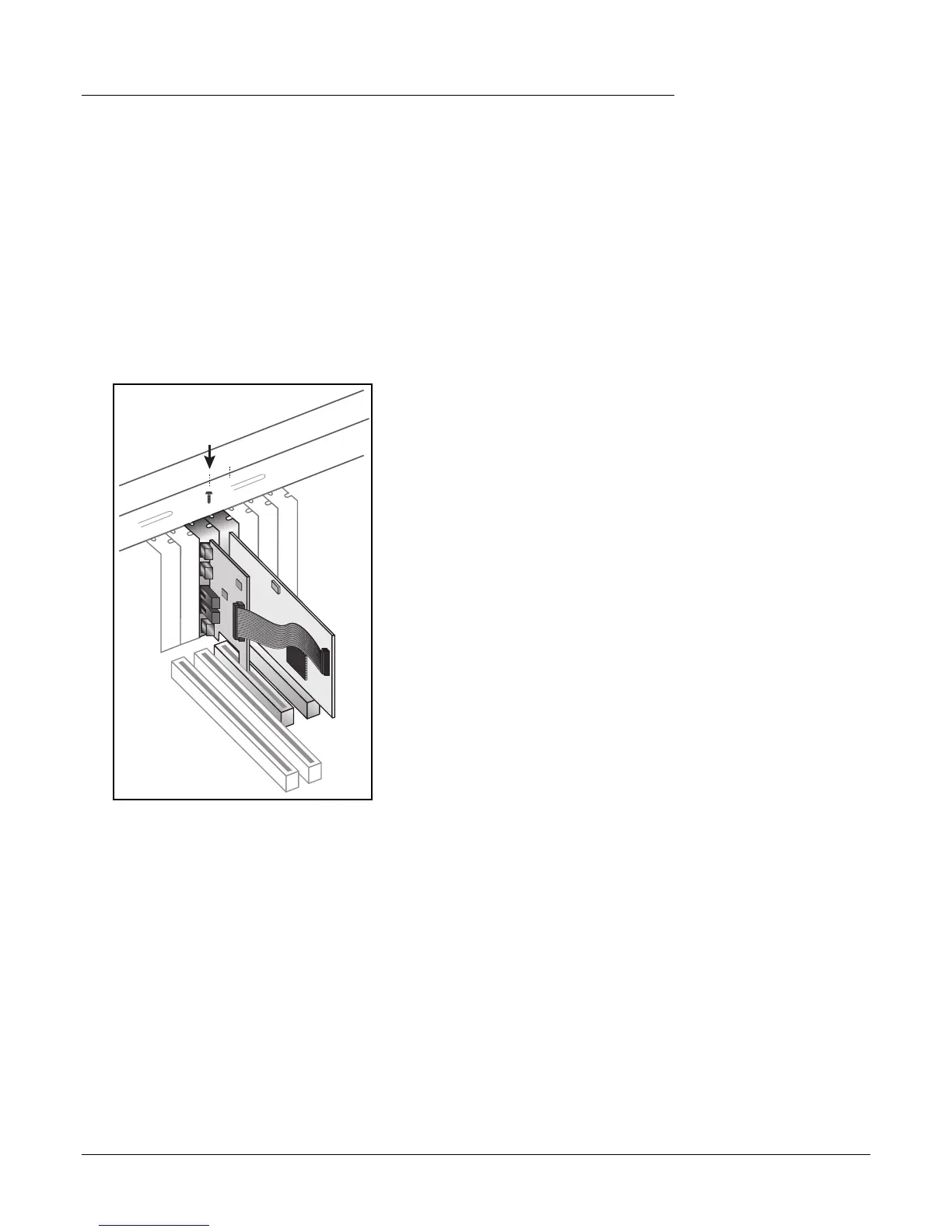

Figure 3
Sync Daughter
Card
To Next Page
