Read all of manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings
apply pressure to the auxiliary contact and slide board in
and out of plug approximately 10 to 20 times, keeping
pressure applied to the auxiliary contact surface.
Plug charger into vehicle receptacle and wait for relay to
turn on. Check to see if charger turns off by moving plug
back and forth in receptacle. If charger does turn off,
repeat cleaning procedure once again. If, after recleaning
and retesting, the charger still turns off while the handle
is moved back and forth, check plug for a broken red wire
in DC cord.

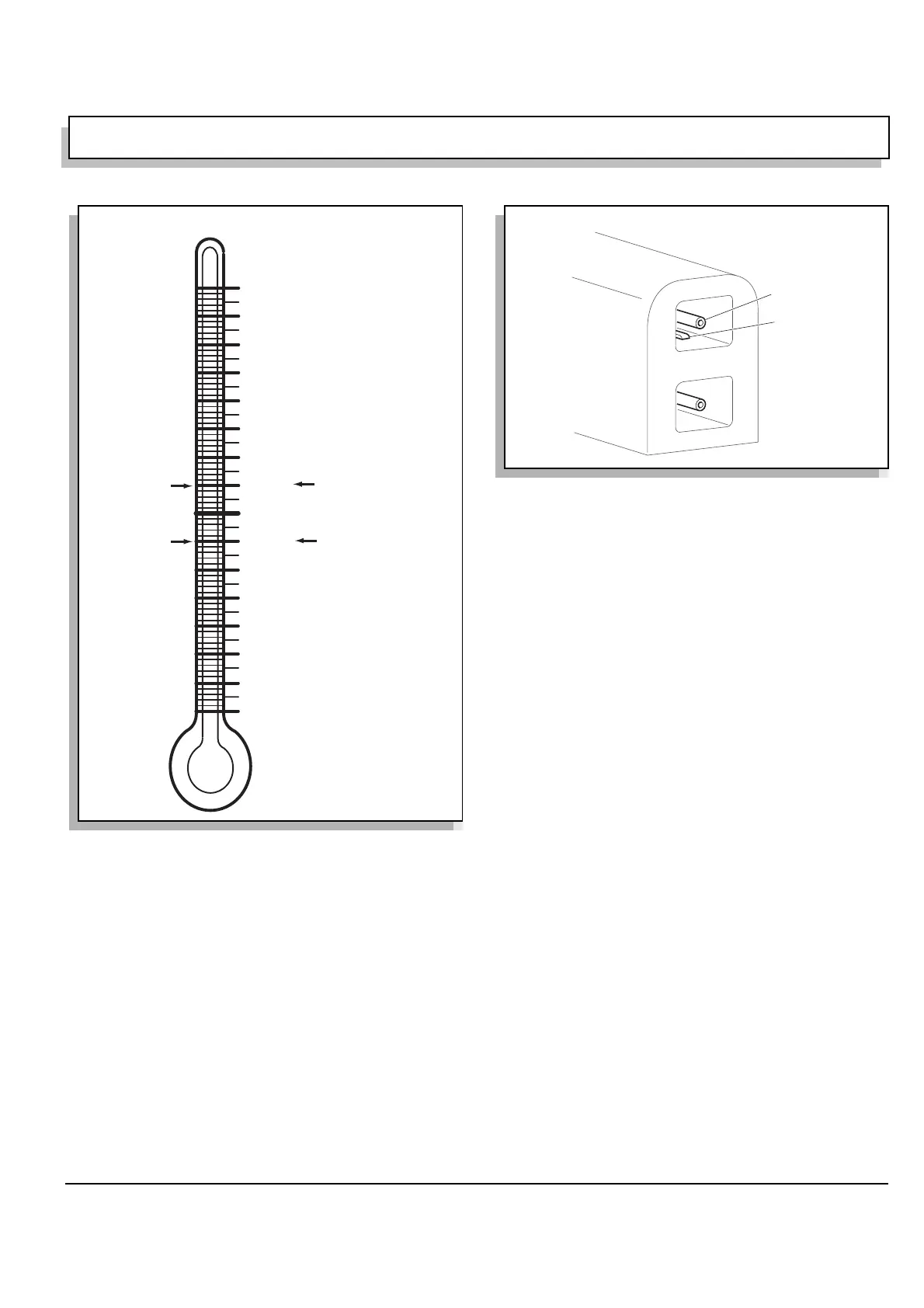

Fig. 31 Hydrometer Temperature Correction
160 71.1 +.032
+.030
150 65.6 +.028
+.026
140 60.0 +.024
+.022
130 54.4 +.020
+.018
120 48,9 +.016
+.014
110 43.3 +.012
+.010
100 37.8 +.008
+.006
90 32.2 +.004
+.002
80 26.7 0
–.002
70 21.1 –.004
–.006
60 15.6 –.008
–.010
50 10 –.012
–.014
40 4.4 –.016
–.018
30 –1.1 –.020
–.022
20 –6.7 –.024
–.026
10 –12.12 –.028
EXAMPLE #1:
Electrolyte Temperature
Above 80°F (27°C)
Electrolyte temperature
90° F (32° C)
Hydrometer reading 1.250
1.250 + .004 = 1.254
corrected specific gravity
EXAMPLE #2:
Electrolyte Temperature
Below 80°F (27 °C)
Electrolyte temperature
70° F (21° C)
Hydrometer reading 1.250
1.250 - .004 = 1.246
corrected specific gravity
° F ° C
Electrolyte
Temperature
R
ef Htc 1
Fig. 32 Cleaning Auxiliary Contact in Charger Plug
Main Contact
Auxiliary Contact
R
ef Cac 1
