E-Z-GO SHUTTLE 2+2 User Manual

OPERATION AND SERVICE INFORMATION
Page 4
Owner’s Manual and Service Guide
Read all of manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings
Before attempting to tow vehicle, move
the Run-Tow/Maintenance switch to the
‘Tow/Maintenance’ position. Failure to do so will damage the
controller or motor.
Before disconnecting or connecting a battery, or any other wir-
ing, move the Run-Tow/Maintenance switch to the ‘Tow/Mainte-
nance’ position.
After connecting a battery, or any other wiring, wait a minimum
of 30 seconds before moving the Run-Tow/Maintenance switch
to the ‘Run’ position.
The PDS vehicle is equipped with a two position switch
located under the passenger side of the seat on the con-
troller environmental cover (Ref Fig. 7 on page 4).
With the switch in ‘TOW/MAINTENANCE’ position:
• the controller is deactivated
• the electronic braking system is deactivated which
allows the vehicle to be towed or roll freely
• the warning beeper is deactivated
With the switch in ‘RUN’ position:
• the controller is activated
• the electronic braking system and warning beeper
features are activated
PDS vehicles operate only in the ’RUN’ posi-
tion.
The PDS is a low power consumption unit but it will drain
the vehicle batteries over a period of time. If the vehicle
is to be stored for a prolonged period of time, the PDS
should be disconnected from the batteries. See ‘Pro-
longed Storage’ on page 22.
HORN
The horn is operated by pushing the horn button located on
the floor to the left of the brake pedal (Ref Fig. 8 on page 4).
OPERATING THE VEHICLE
Improper use of the vehicle or the lack
of proper maintenance may result in
damage or decreased performance.
Read and understand the following warnings before
attempting to operate the vehicle.
To reduce the possibility
of severe injury or death
resulting from loss of
vehicle control, the following warnings must be
observed:
When driving vehicle, consider the terrain, traffic
conditions and the environmental factors which
effect the terrain and the ability to control the
vehicle.
Use extra care and reduced speed when driving
on poor surfaces, such as loose dirt, wet grass,
gravel, etc.

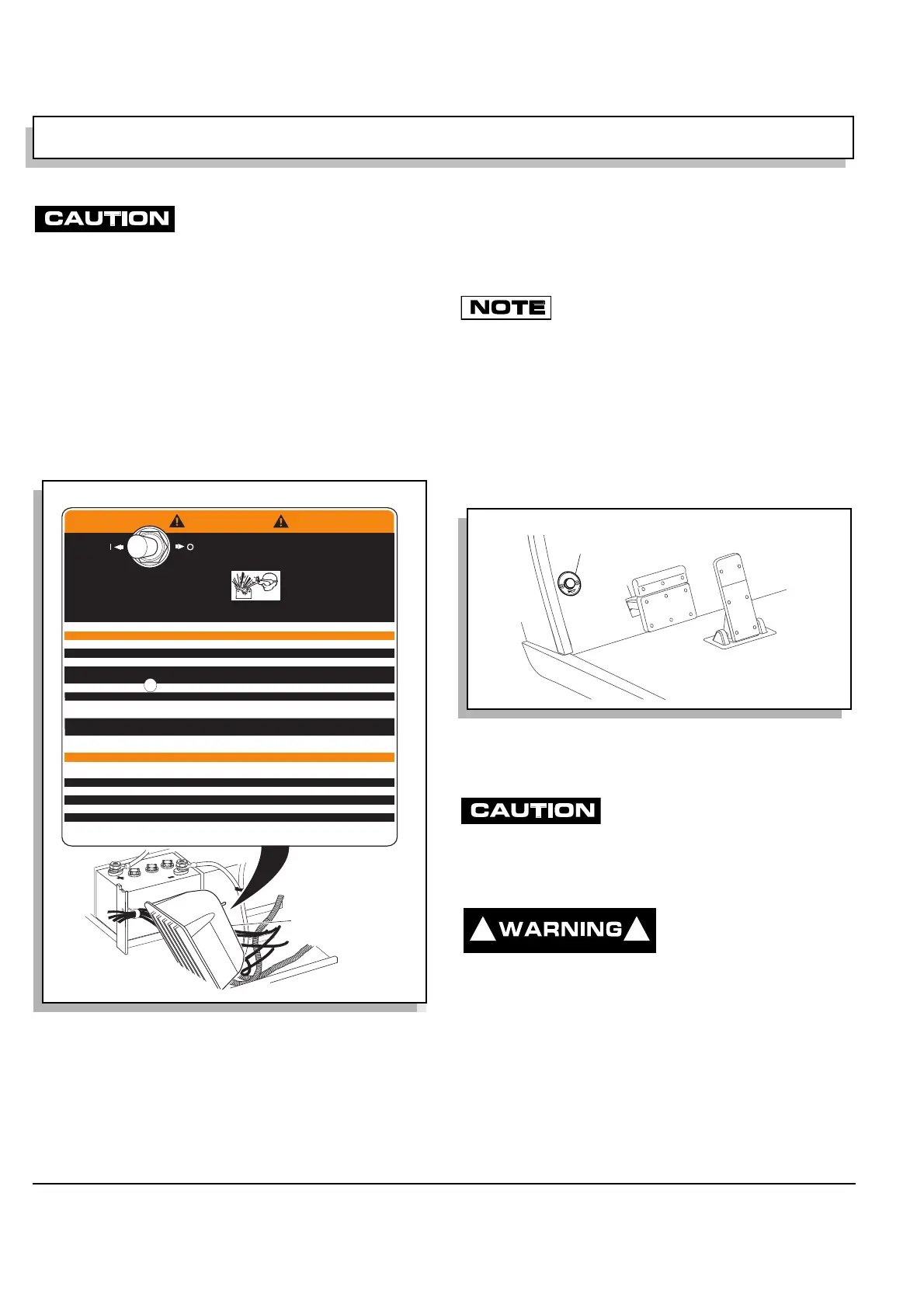

Fig. 7 Run-Tow/Maintenance Switch
Controller
Environmental
Cover
■ To disable electrical system, place switch in 'TOW/ MAINTENANCE' position and remove battery wire
■ After reconnecting batteries, allow a minimum of 30 seconds before selecting 'RUN' position
THE FOLLOWING CODES REQUIRE THAT THE REAR WHEELS BE RAISED BEFORE PERFORMING TESTS
Beep Fault Symptoms Correction Required
1-1 Controller Failure Vehicle will not run Check motor wiring & motor Ω. Replace controller
1-2 Throttle fault Solenoid clicks, will not run Replace/adjust pedal box, harness
1-4 High pedal disable Vehicle will not run Release pedal/check pedal box, linkage & switch
2-4 Solenoid coil failure Vehicle will not run Check coil connections/wiring,
or disconnected replace solenoid if required
3-1 Solenoid driver fail Vehicle will not run Check coil wiring for shorts, replace controller
3-3 Solenoid did not close Vehicle will not run Check all solenoid wiring, replace solenoid if required
3-4 Field winding open Solenoid clicks, will not run Check motor & controller field connections,
replace power harness or motor if required
4-1 Armature open Solenoid clicks, will not run Check motor & controller armature connections,
replace power harness or motor if required
4-3 Solenoid drop out Vehicle stops Check solenoid/wiring, replace if required
THE FOLLOWING CODES REQUIRE THAT THE VEHICLE BE OPERATED UNDER LOAD WHILE PERFORMING TESTS
Beep Fault Symptoms Correction Required
1-3 Speed sensor fault Vehicle runs slowly Check speed sensor connections & magnet/torque,
replace speed sensor if required
2-1 Low battery voltage Vehicle performance reduced Charge batteries/replace bad batteries
2-2 High battery voltage Regen performance reduced Check that battery voltage is less than 48 VDC
2-3 Thermal cutback Vehicle performance reduced Allow controller to cool, check heat sink bolt torque
3-2 Solenoid welded Vehicle runs slowly Check auxiliary power. Replace solenoid
4-2 Motor stalled Vehicle stopped Remove mechanical blockage
■ Tampering with or unauthorized modification of this unit
by non E-Z-GO personnel could result in serious personal
injury, will void the warranty and result in permanent
damage to the vehicle
■ Possibility of electrical arc or battery
explosion. Before removing/connecting
batteries or electrical components, turn
switch to 'TOW MAINTENANCE' position
WARNING
TOWING
Always select 'TOW/MAINTENANCE'
position before towing
RUN
TOW
MAINTENANCE
To enter diagnostic mode ◆ Turn key switch to 'OFF' ◆ Move 'RUN/TOW MAINTENANCE' switch to 'RUN'. ◆ Move direction
selector switch from neutral position to 'REV' position five (5) times ◆ After a confirming beep(s) sounds, the diagnostic fault
code will sound when a fault is detected. To exit diagnostic mode: Select 'TOW MAINTENANCE' position.
73093-G01
Ref Rtm 1
Fig. 8 Horn Button
H
O
R
N
Horn
PARK
Ref Hor 1
! !
