E-Z-GO SHUTTLE 2+2 User Manual

Appendix A - 3
Owner’s Manual and Service Guide

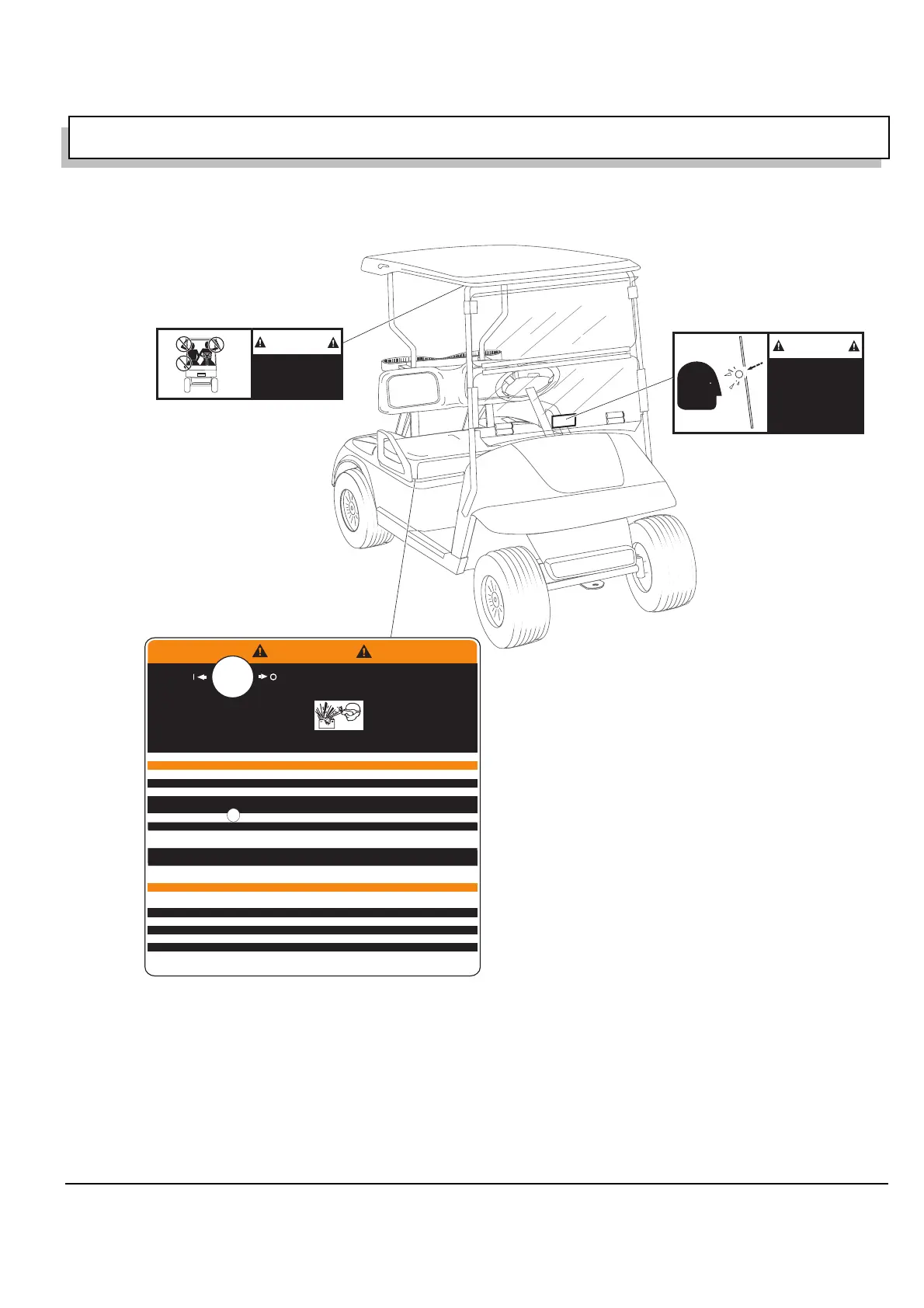

LABELS AND PICTOGRAMS
73093G01
See Following Pages
For Explanation Of These
Pictograms (1,43,44,50)
WARNING
Keep entire body
inside car.
27653G01
Raise Seat To Find This Label Located On The
Passenger Side Affixed To The Controller Cover.
See Following Pages For
Explanation Of Pictogram (49)
R
ef Lal 1-2
■ To disable electrical system, place switch in 'TOW/ MAINTENANCE' position and remove battery wire
■ After reconnecting batteries, allow a minimum of 30 seconds before selecting 'RUN' position
THE FOLLOWING CODES REQUIRE THAT THE REAR WHEELS BE RAISED BEFORE PERFORMING TESTS
Beep Fault Symptoms Correction Required
1-1 Controller Failure Vehicle will not run Check motor wiring & motor Ω. Replace controller
1-2 Throttle fault Solenoid clicks, will not run Replace/adjust pedal box, harness
1-4 High pedal disable Vehicle will not run Release pedal/check pedal box, linkage & switch
2-4 Solenoid coil failure Vehicle will not run Check coil connections/wiring,
or disconnected replace solenoid if required
3-1 Solenoid driver fail Vehicle will not run Check coil wiring for shorts, replace controller
3-3 Solenoid did not close Vehicle will not run Check all solenoid wiring, replace solenoid if required
3-4 Field winding open Solenoid clicks, will not run Check motor & controller field connections,
replace power harness or motor if required
4-1 Armature open Solenoid clicks, will not run Check motor & controller armature connections,
replace power harness or motor if required
4-3 Solenoid drop out Vehicle stops Check solenoid/wiring, replace if required
THE FOLLOWING CODES REQUIRE THAT THE VEHICLE BE OPERATED UNDER LOAD WHILE PERFORMING TESTS
Beep Fault Symptoms Correction Required
1-3 Speed sensor fault Vehicle runs slowly Check speed sensor connections & magnet/torque,
replace speed sensor if required
2-1 Low battery voltage Vehicle performance reduced Charge batteries/replace bad batteries
2-2 High battery voltage Regen performance reduced Check that battery voltage is less than 48 VDC
2-3 Thermal cutback Vehicle performance reduced Allow controller to cool, check heat sink bolt torque
3-2 Solenoid welded Vehicle runs slowly Check auxiliary power. Replace solenoid
4-2 Motor stalled Vehicle stopped Remove mechanical blockage
■ Tampering with or unauthorized modification of this unit
by non E-Z-GO personnel could result in serious personal
injury, will void the warranty and result in permanent
damage to the vehicle
■ Possibility of electrical arc or battery
explosion. Before removing/connecting
batteries or electrical components, turn
switch to 'TOW MAINTENANCE' position
WARNING
TOWING
Always select 'TOW/MAINTENANCE'
position before towing
RUN
TOW
MAINTENANCE
To enter diagnostic mode ◆ Turn key switch to 'OFF' ◆ Move 'RUN/TOW MAINTENANCE' switch to 'RUN'. ◆ Move direction
selector switch from neutral position to 'REV' position five (5) times ◆ After a confirming beep(s) sounds, the diagnostic fault
code will sound when a fault is detected. To exit diagnostic mode: Select 'TOW MAINTENANCE' position.
73093-G01
WARNING
Windshields do not
provide protection
from golf balls or
other flying objects.
EGWHL14
See Following Pages For
Explanation Of Pictogram (30)
