TYRO69

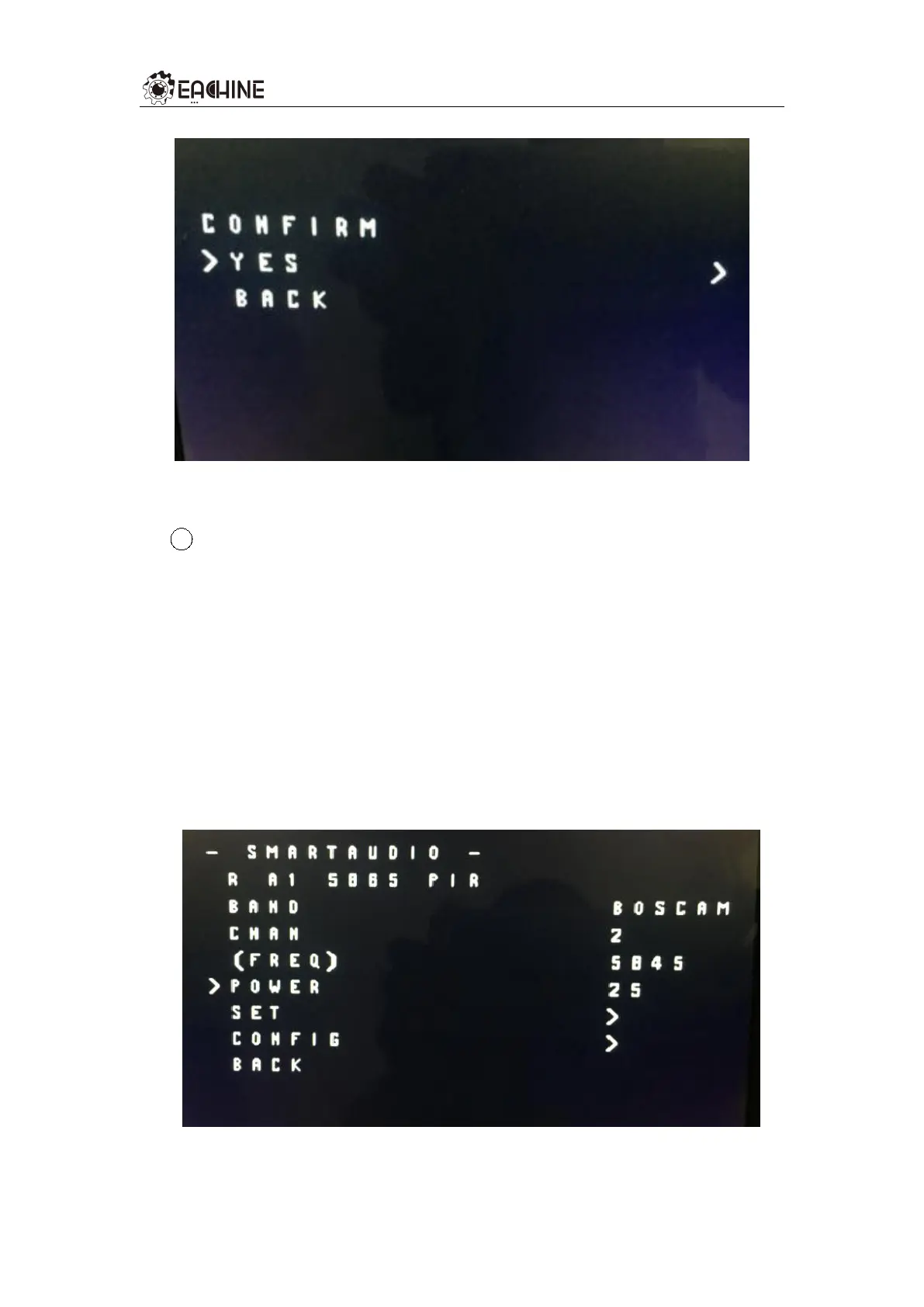

Figure 6 Grouping and channel configuration validation
3 Output power configuration
As in the previous section, the POWER item can be entered by
remote control selection, and the required transmission power can be
selected (Fig. 7). VTX1 currently supports only 25 mW power options,
while the POWER menu with OSD parameters has four options: 25 mW,
200 mW, 500 mW and 800 mW. Therefore, users need to pay attention
to the choice of 200 mW, 500 mW, 800 mW options will be VTX1 set to
25 mW transmission power.
Note: Unlike configuring BAND and CHAN, POWER settings do not
need to enter the SET entry confirmation, and take effect immediately.
Figure 7 Transmission Power Selection
