Eagle Access Control Systems EAGLE Open - Step-by-Step Installation; Connecting Wires and Mounting; Operation Mode Considerations

GARAGE
MOTOR
1.
12 13
2.
1. Putthewiresof thegateopener intotheirplaces(connector)
The outputs of the device are dry contact relay outputs. The inputs can only be drivenby
dry contactoutputs.
Each outputandinput reserves2 pinsin the connector of the device.Regarding the pinout
of device please checkthe wiringdiagramon pages 10-11.
The operation mode of the relay outputs can be configuredin the application. Momentary
pulsemode withadjustable pulselengthor static on/offmode can be chosen.
NOTE: Most of the garage door/gate openers are compatible with the pulse mode only
thereforeit mightbe harmful for these devicesto be usedwithon/off mode.Avoidswitching
to static on/off mode unlessyou knowwhatyouare doing.
2.

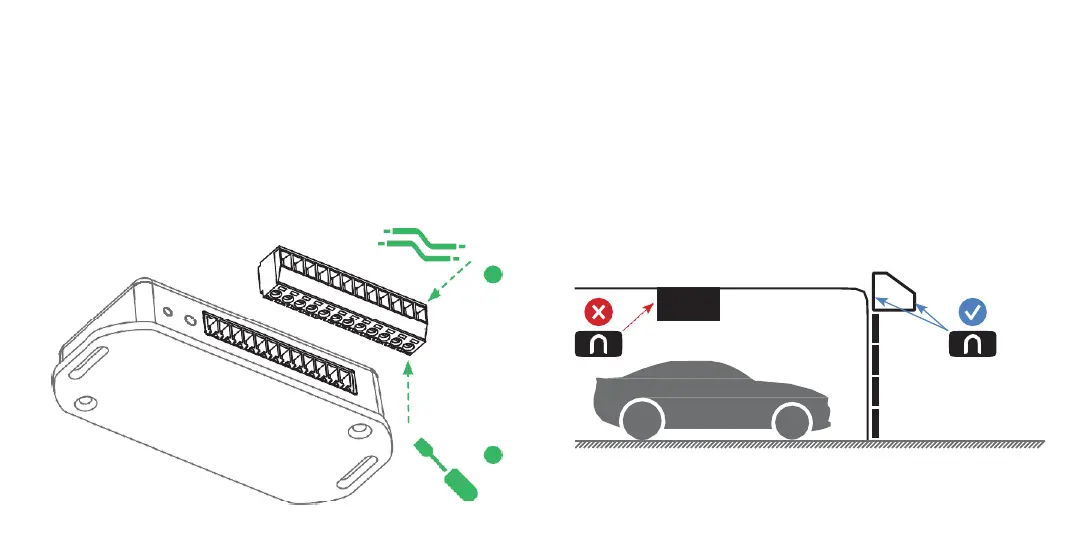

PlugtheconnectorintotheNoldOpendevice
The Nold Open must be connected to the appropriate points according to the connection
drawing,withthe control panel de-energized.
3. Fasten the wires with ascrewdriver
4. Mount NoldOpenon thewallwith2screws.
The device should be installed as close as possible to the entry zone and as far as possible
from metallic elements as they negatively affect the transmission distance of Bluetooth
®
signals. The device can be used both indoors and outdoors. In case of outdoor use, the
device mustbe fitted below aweatherproof protective cover.The device should be installed
at aheightof at least1.5 metres above ground level.
For further information please visit
nold.io/help
