3. Installation
Tools Required
1. Phillips screwdriver (4in)
2. 8mm open-end wrench
3. 10mm open-end wrench
4. 5mm allen wrench
5. 4mm allen wrench
6. 3mm allen wrench
7. 2.5mm allen wrench
Installation
Installation of the Eagle 100 requires placing the tension spring (part number 2201210020) into the
machine and securing it in place using the included caster, spring retainer, and top cover locks.
The screw on the top cap of the speed reducer can be removed for ventilation.
Once strap of the proper size is loaded and the power is connected, operation may begin.

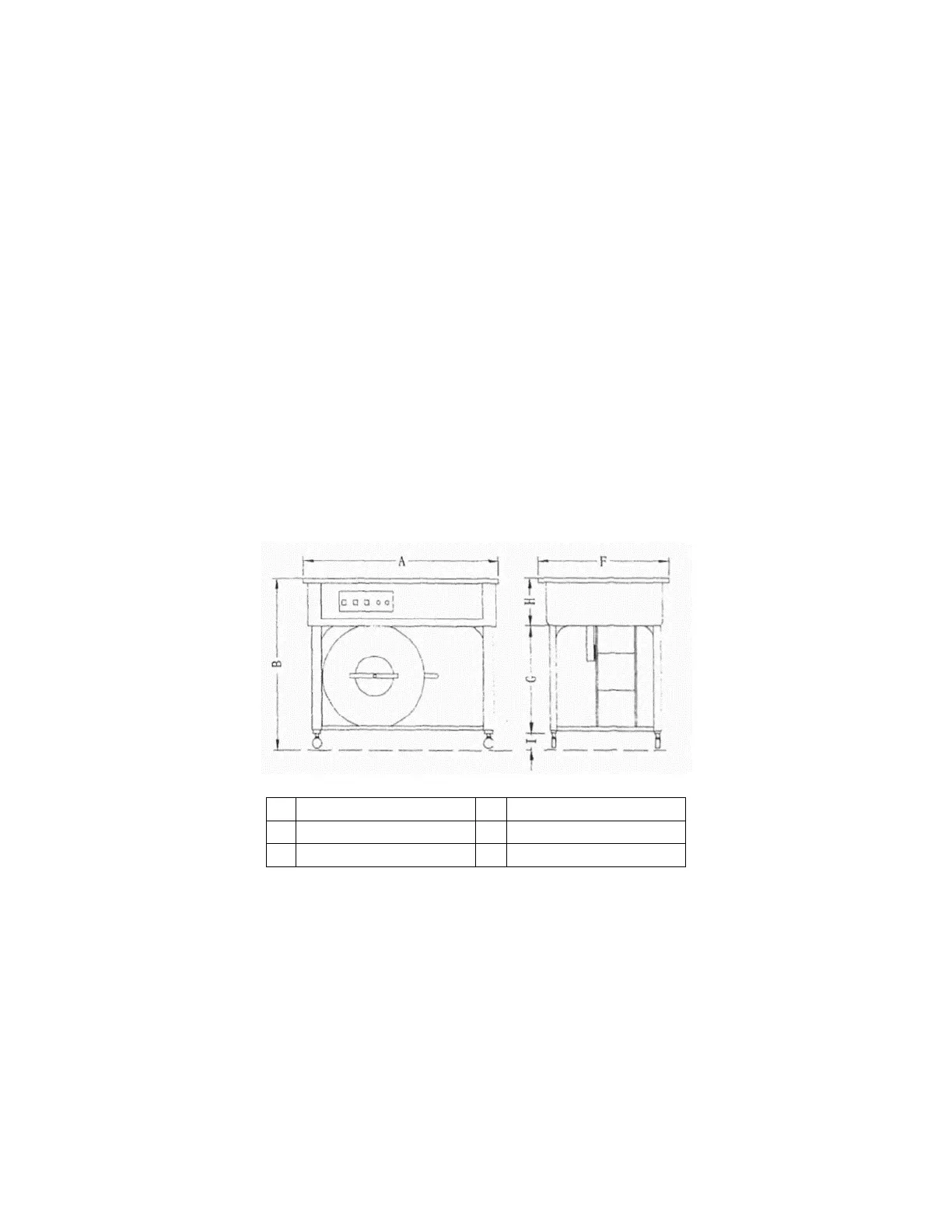

A
895mm
G
400mm
B
740mm
H
230mm
F
565mm
I
110mm
