4. Operation
4.4 Loading Strap

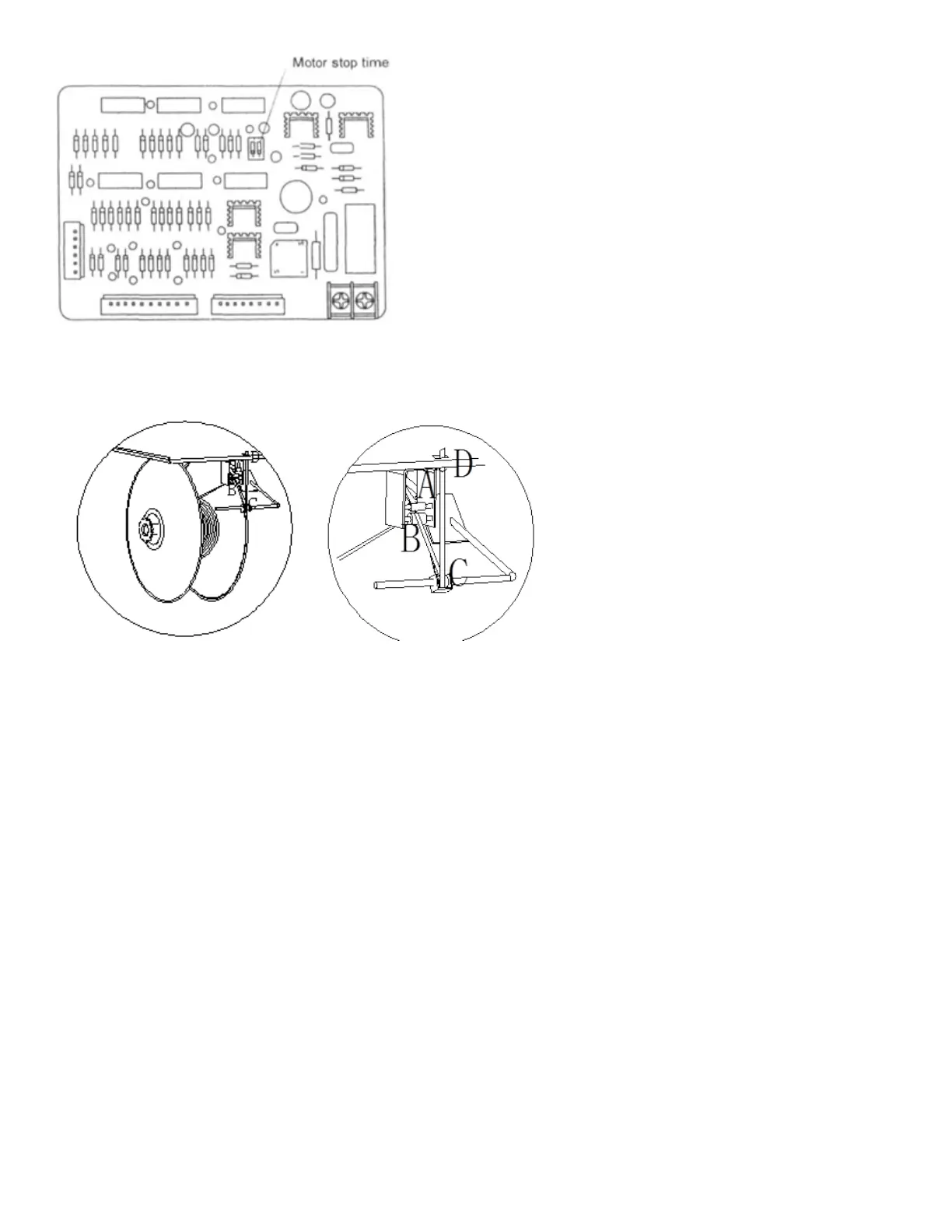

1. Pull strap out from the strap reel and check whether the strap head is down. If not, then the
strap reel needs to be turned such that the strap feeds out from the bottom of pulley “A” and
from the top of pulley “B”.
2. Thread the strap through wheel “C” and thread it up to strap slot “D”.
3. Thread the strap along the guide rail to the opening between the rollers.
4. Press the “Feed” button on the control panel for mechanical output of the strapping material.
