- 22 -

4.2 Turntable Home Switch

BE SURE TO DISCONNECT ALL POWER TO THE MACHINE PRIOR TO

ANY MAINTENANCE WORK

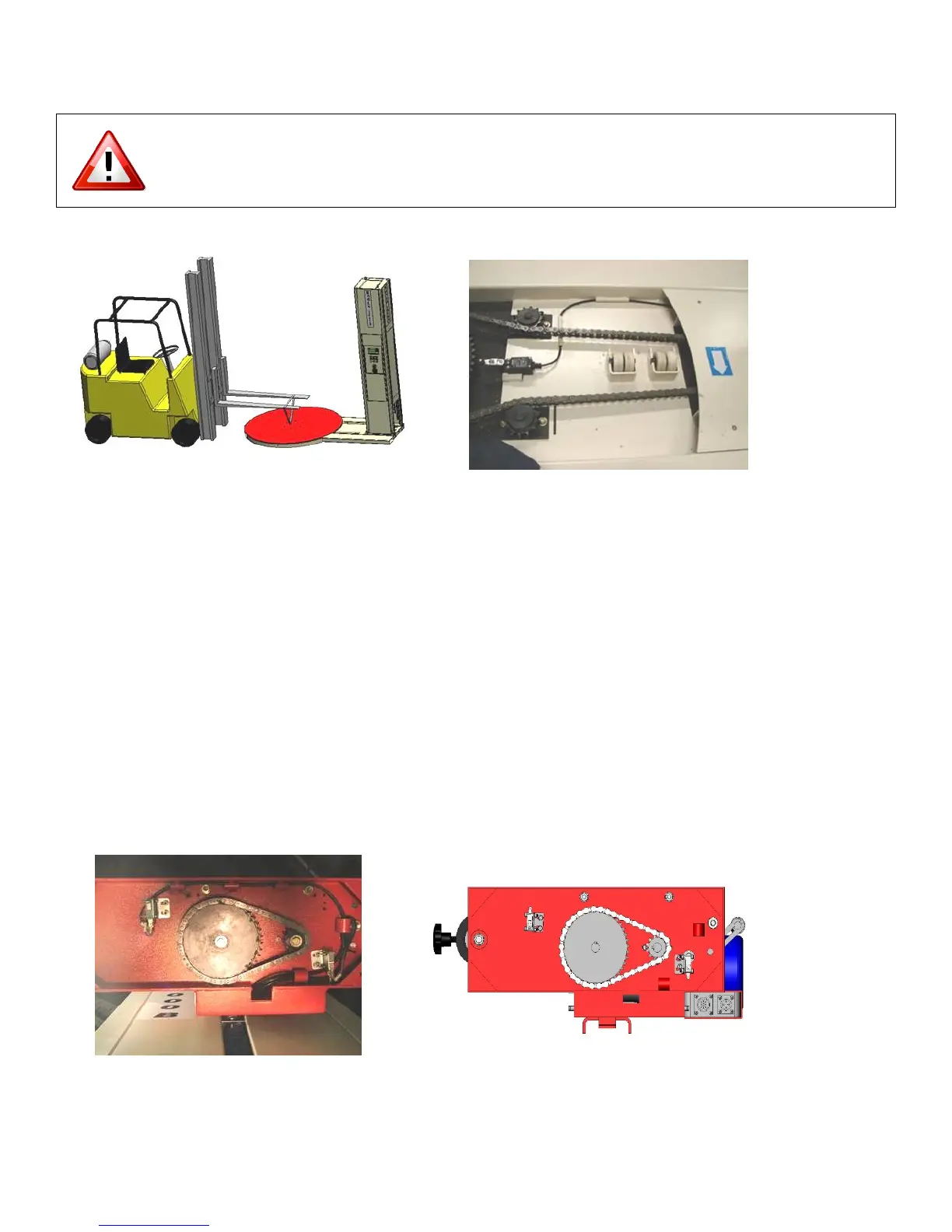

Fig. 4-1

Fig. 4-2

Turntable

▪ Remove the six M10 flat head cap screws in the turn table.

▪ Screw in one M10 eyebolt rated for lifting into the tapped hole in the turn plate. Lift the turn table

using a hoist and chain rated for a 500lb load.

(See Fig. 4-1)

▪ Lift the turntable just clear of the frame and use the forklift to remove the table. For safety reasons,

keep the disk low to the ground.

▪ Lubricate the chain and gears. Inspect the items and clean out any debris.

▪ The chain and gears need lubricated every three months. (See Fig. 4-2)

Pre-Stretch Film Carriage

Fig. 4-3

▪ Lubricate the drive chain of the carriage on a monthly basis. (See Fig. 4-3)
