2.3 Installation

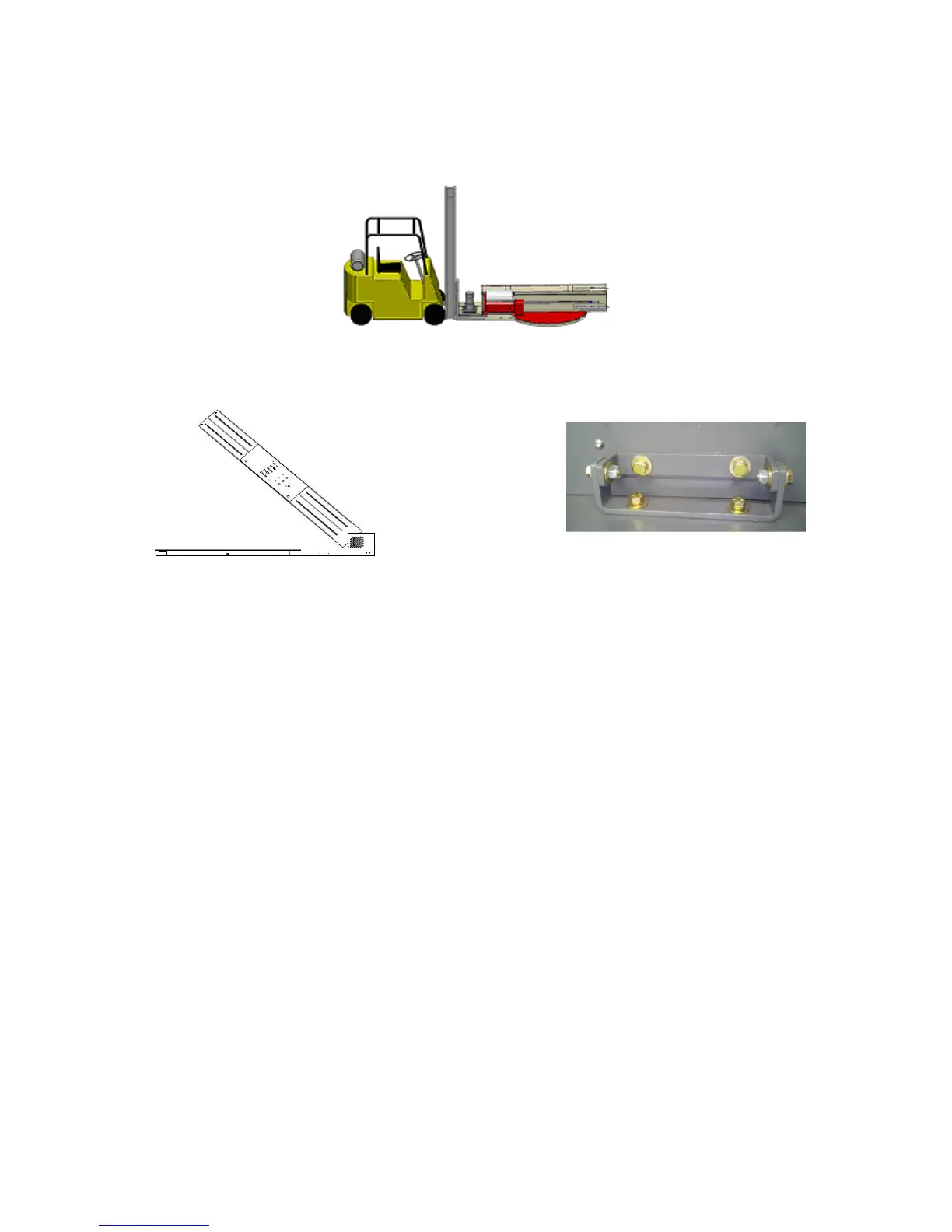

Step 1 - Place the machine in the desired location using a tow motor or crane capable of handling a
load of 3,000lbs. (See Fig. 2-3)
Fig. 2-3
Fig. 2-4a
Fig. 2-4b
Step 2 – While lifting the mast, use caution to ensure that wires and connectors are not pinched.
(See Fig. 2-4a)
Once the machine is fully upright, one individual can stabilize the mast while a second individual
fastens the M8 screws to secure the mast to the base. (See Fig. 2-4b)
