52
2. Open the Route List Window: click
V
IEW
|
R
OUTE
L
IST
.
3. Right-click on the route name. In the pop-up menu, click the
C
REATE
B
ORDERS
A
ROUND
R
OUTE
command.

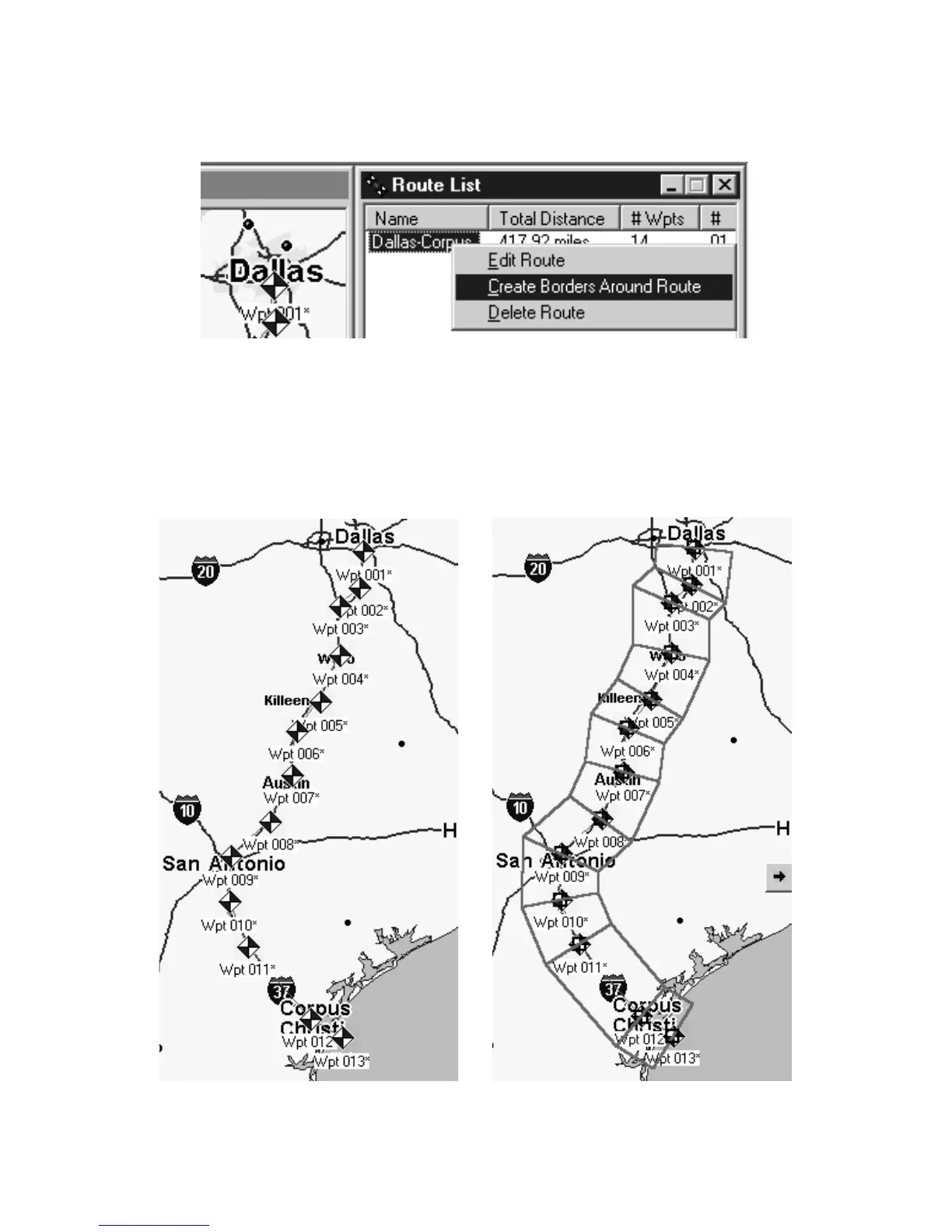

The Create Borders Around Route pop-up menu appears when you
right-click a route name in the Route List Window. In this example, we
are creating a corridor map border for a route from Dallas to Corpus
Christi, Texas. Route name is "Dallas-Corpus."
MapCreate draws a corridor map border following the route. See the
illustrations below, showing the route before and after the command is
performed.
Route from Dallas to Corpus Christi, Texas (left) and the corridor map
created automatically from the route (right).
