7
MAGNA III PORTABLE ASSEMBLY
INSTALLING THE BATTERIES

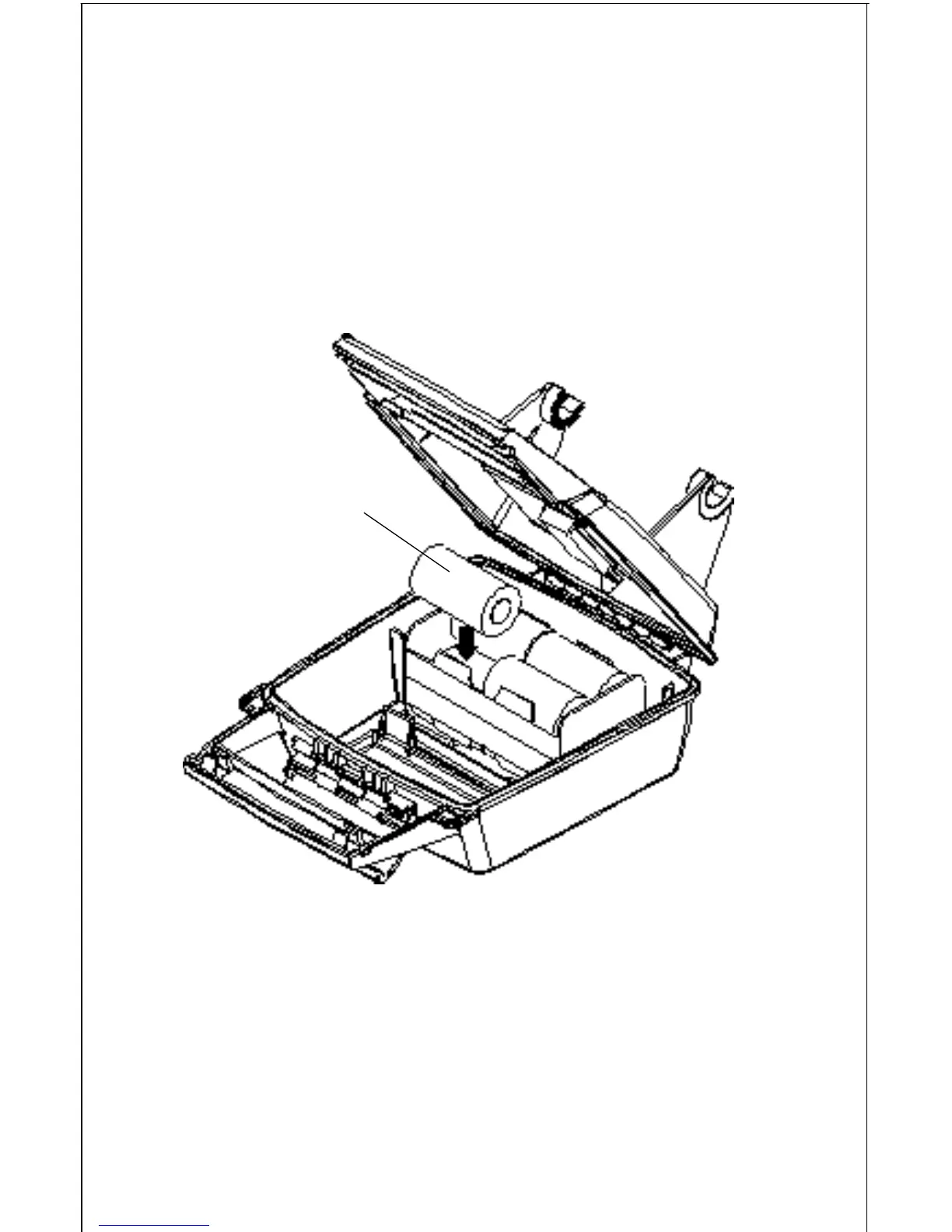

Release the latch on the front of the battery case. Open the compartment
and install four "D" cell batteries into the adapter. For the longest life, we
recommend you use alkaline batteries. This battery case will also hold one
rechargable battery instead of the "D" cells. See the enclosed coupon for
more information on the rechargable battery.
"D" CELL BATTERY
After installing the batteries, close the case and plug the power cable on
the battery case into the Magna III Portable. Plug the adapter cable into
the back of the sonar unit. Turn the sonar unit on. If it doesn't work, make
certain the battery terminals are making good contact against the battery
contacts. Also check the wiring connections on the D-cell battery adapter.
The red wire on the power cable should be attached to the red wire on the
D-cell battery adapter and the power cable's black wire should be con-
nected to the black wire on the D-cell battery adapter. If it still doesn't work,
