STRATA 128 PORTABLE ASSEMBLY
INSTALLING THE BATTERIESINSTALLING THE BATTERIES
INSTALLING THE BATTERIESINSTALLING THE BATTERIES
INSTALLING THE BATTERIES
Release the latch on the front of the battery case. Open the compartment
and install four "D" cell batteries into the adapter. For the longest life, we
recommend you use alkaline batteries. This battery case will also hold one
rechargable battery instead of the "D" cells. See the enclosed coupon for
more information on the rechargable battery.

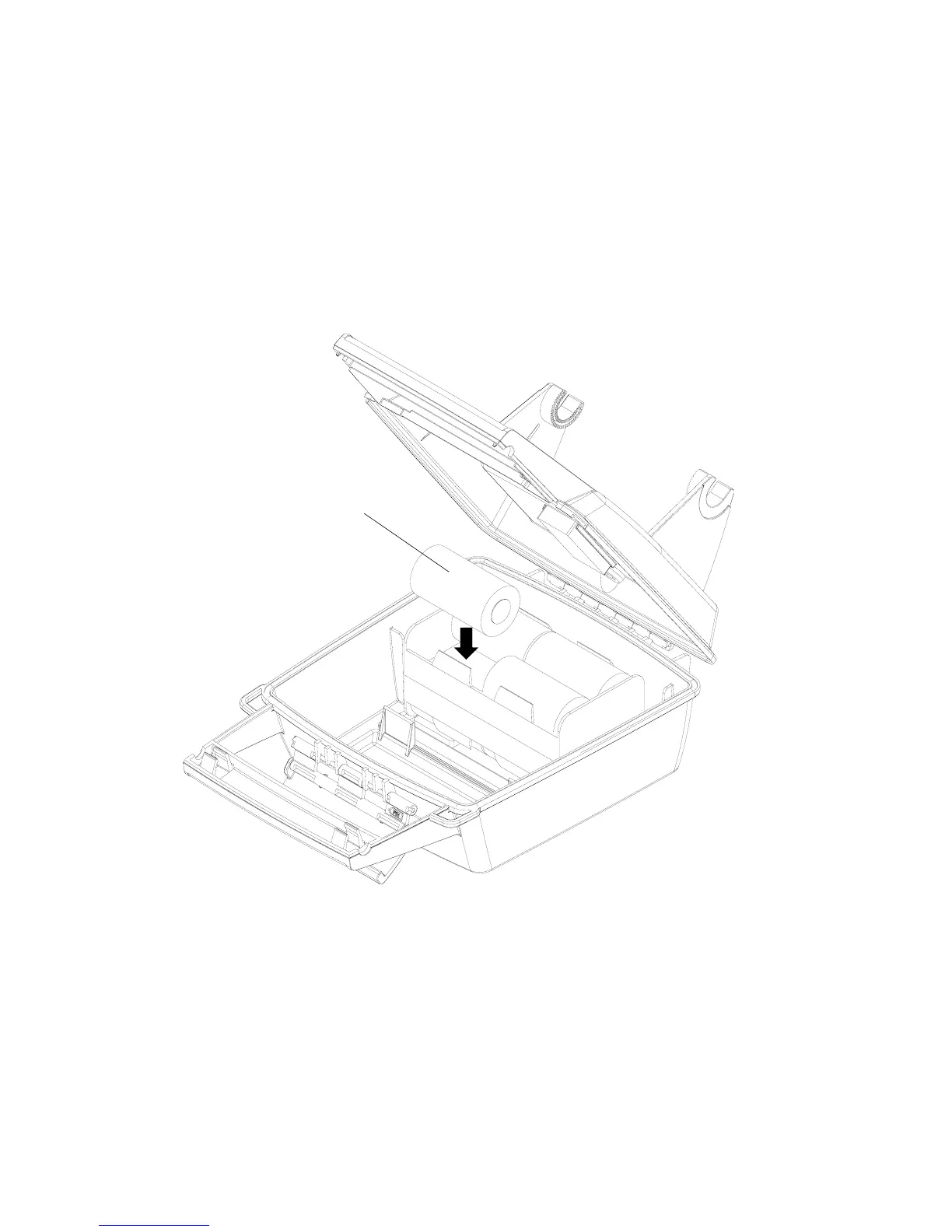

"D" CELL BATTERY
After installing the batteries, close the case and plug the power cable on
the battery case into the Strata 128 Portable. Turn the sonar unit on. If it
doesn't work, make certain the battery terminals are making good contact
against the battery contacts. Also check the wiring connections on the D-
cell battery adapter. The red wire on the power cable should be attached
to the red wire on the D-cell battery adapter and the power cable's black
wire should be connected to the black wire on the D-cell battery adapter.
If it still doesn't work, check the battery voltage. Most of the complaints we
