2. Slide the transducer between the two ratchets. Temporally slide the
bolt though the transducer assembly and hold it against the transom.
Looking at the transducer from the side, check to see if it will adjust so
that its face is parallel to the ground. If it does, then the “A” position is
correct for your hull. If the transducer’s face isn’t parallel with the ground,
remove the transducer and ratchets from the bracket. Place the ratch-
ets into the holes in the bracket with the letter “B” aligned with the dot
stamped in the bracket. Reassemble the transducer and bracket and
place them against the transom. Again, check to see if you can move
the transducer so it’s parallel with the ground. If you can, then go to
step 3. If it doesn’t, repeat step 2, but use a different letter until you can
place the transducer on the transom correctly.

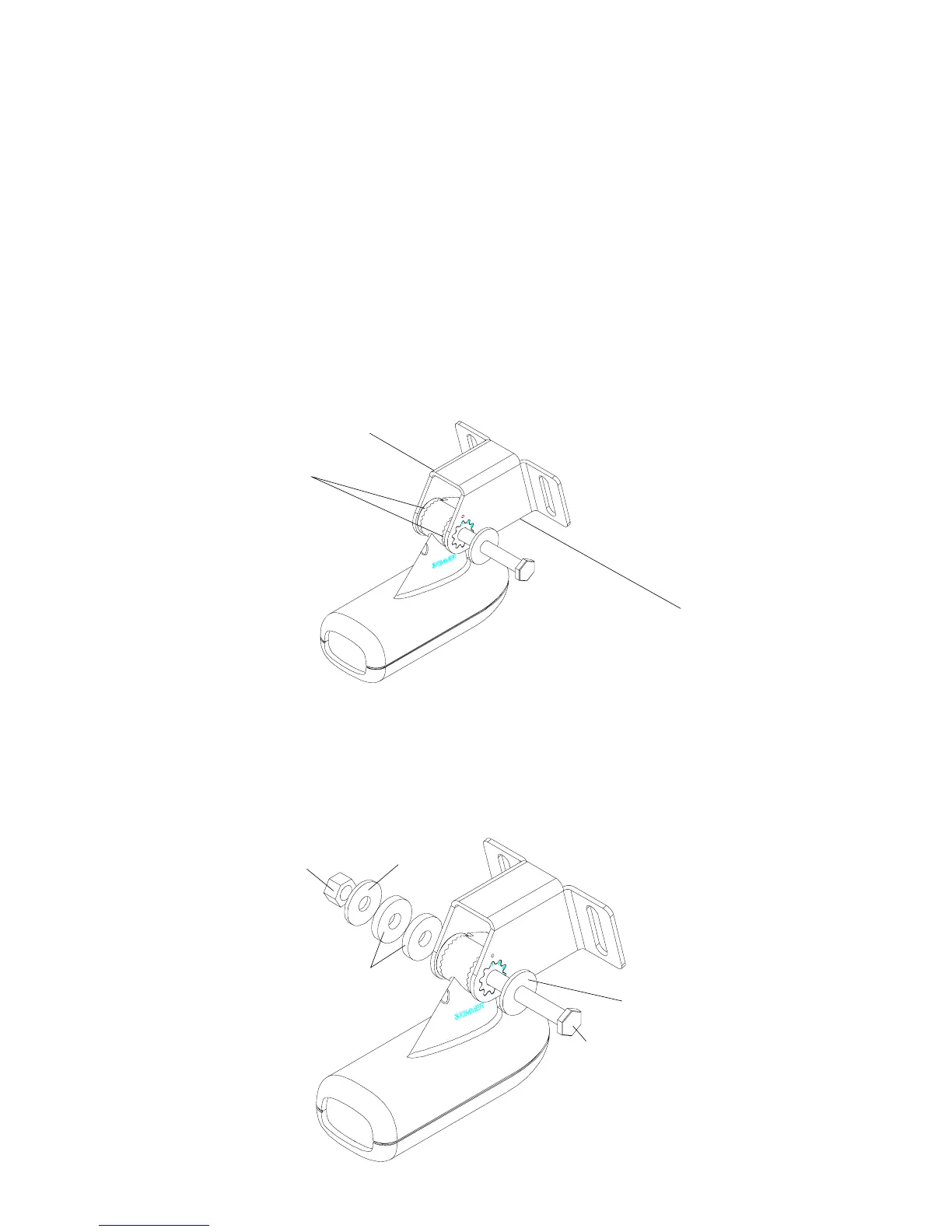

3. Once you determine the correct position for the ratchets, assemble
the transducer as shown at left. Don't tighten the lock nut at this time.
NUT
METAL
WASHER
RUBBER
WASHERS
METAL
WASHER
BOLT
RATCHETS
