9
NUT
FLAT WASHER
BOLT
2. Slide the adjustable strap supplied with the TMB-S through the slot in
the transducer bracket and wrap it around the trolling motor. Position
the transducer to aim straight down when the motor is in the water.
Tighten the strap securely. Route the transducer cable alongside the
trolling motor shaft. Use plastic ties (not included) to attach the
transducer cable to the trolling motor shaft. Make certain there is
enough slack in the cable for the motor to turn freely. Route the cable
to the sonar unit and the transducer is ready for use.

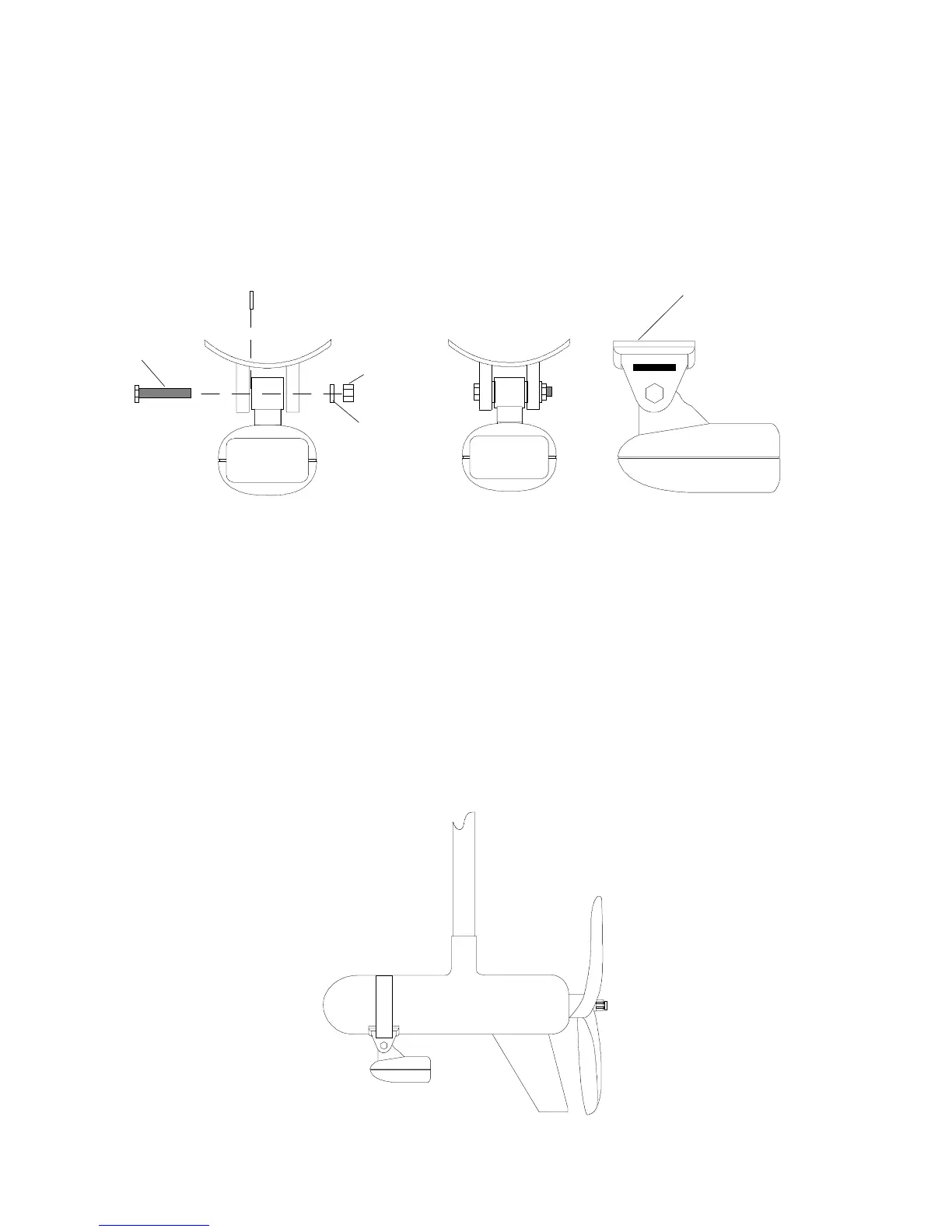

1. Attach the TMB-S bracket to the transducer as shown below using the
hardware supplied with the transducer. (Note: The internal tooth washer
is supplied with the TMB-S.)
INTERNAL TOOTH
WASHER
TMB-S
BRACKET
TROLLING MOTOR BRACKET INSTALLATION
(StrataView Only)
To Next Page
