Operator's Manual
MC25 2-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
20
1
2
3
4,8
5
6
7
8
9
10
11
12
13
14
15

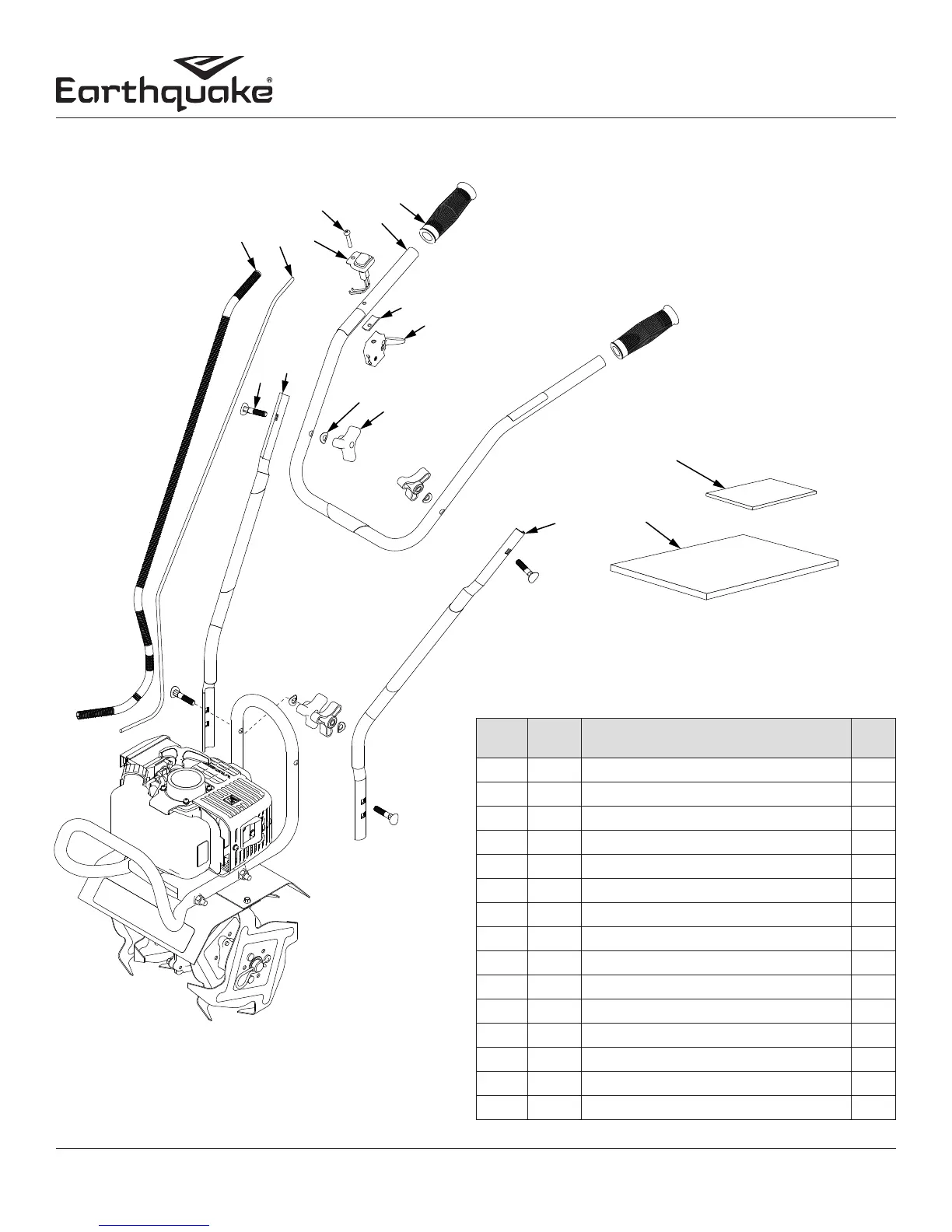

Handlebar Parts Explosion
ITEM
NO.
PART
NO.
DESCRIPTION QT Y.
1 25440 SLEEVE CABLE PROTECTION 1
2 14645 THROTTLE CABLE SWIVEL FERRULE 1
3 26166 ON/OFF SWITCH ASSEMBLY 1
4 10888 BOLT M5 X 0.8 X 30 MM PHILLIPS 1
5 27136 KIT HANDLEBAR UPPER WITH WARNINGS 1
6 4639 HANDLEBAR GRIP 19.5 X 110 MM 2
7 12633 RUBBER PAD 15 X 29 MM 1
8 25988 KIT TRIGGER LONG THROW ASSEMBLY 1
9 25622 KNOB M8 X 1.25 THREE ARM BLACK 4
10 4641 WASHER M8 CURVED 4
11 24883 HANDLEBAR MIDDLE RIGHT BLACK 1
12 4642 BOLT M8 X 1.25 X 35 SADDLE HEAD 4
13 24884 HANDLEBAR MIDDLE LEFT BLACK 1
14 25625 PARTS BAG HARDWARE 1
15 22262 PARTS BAG MANUAL 1
ILLUSTRATED PARTS BREAKDOWN
