EarthQuake MC25 User Manual

Operator's Manual
MC25 2-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
22
15290 DRAG STAKE MOUNT KIT
OPTIONAL ACCESSORY
IMPORTANT
THE 15290 DRAG STAKE MOUNT KIT IS REQUIRED
TO USE THE DK43 DETHATCHER KIT.
The Drag Stake Mount Kit is very eective for adding stability and
depth control to your cultivator. The Drag Stake Mount Kit is a
mandatory accessory for using the DK43 Dethatcher Kit.
1. Flip the ON/OFF switch to the OFF or STOP position. Remove
the cultivating tines or other working tools.
2. Remove nuts and bolts from transmission mount holes and
set aside in a safe place for future use if removing the drag
stake mount kit.
3. Install drag stake mount to transmission using bolts (4649)
and nuts (4650). SEE FIGURE 12
4. Install drag stake and secure to the drag stake using lock pin
(18039) at the desired depth. SEE FIGURE 12
ITEM
NO.
PART
NO.
DESCRIPTION QT Y.
1 18039 LOCK PIN 8 X 40 MM 1
2 4600 DRAG STAKE 1
3 4633 DRAG STAKE MOUNT 1
4 4649 BOLT M6 X 1.0 X 25 MM HEX FLANGE 2
5 4650 NUT M6 NYLOCK 2
NUT
TRANSMISSION
MOUNT HOLES
LOCK PIN
DRAG
STAKE
MOUNT
DRAG STAKE
MOUNT HOLE
BOLT
DRAG STAKE

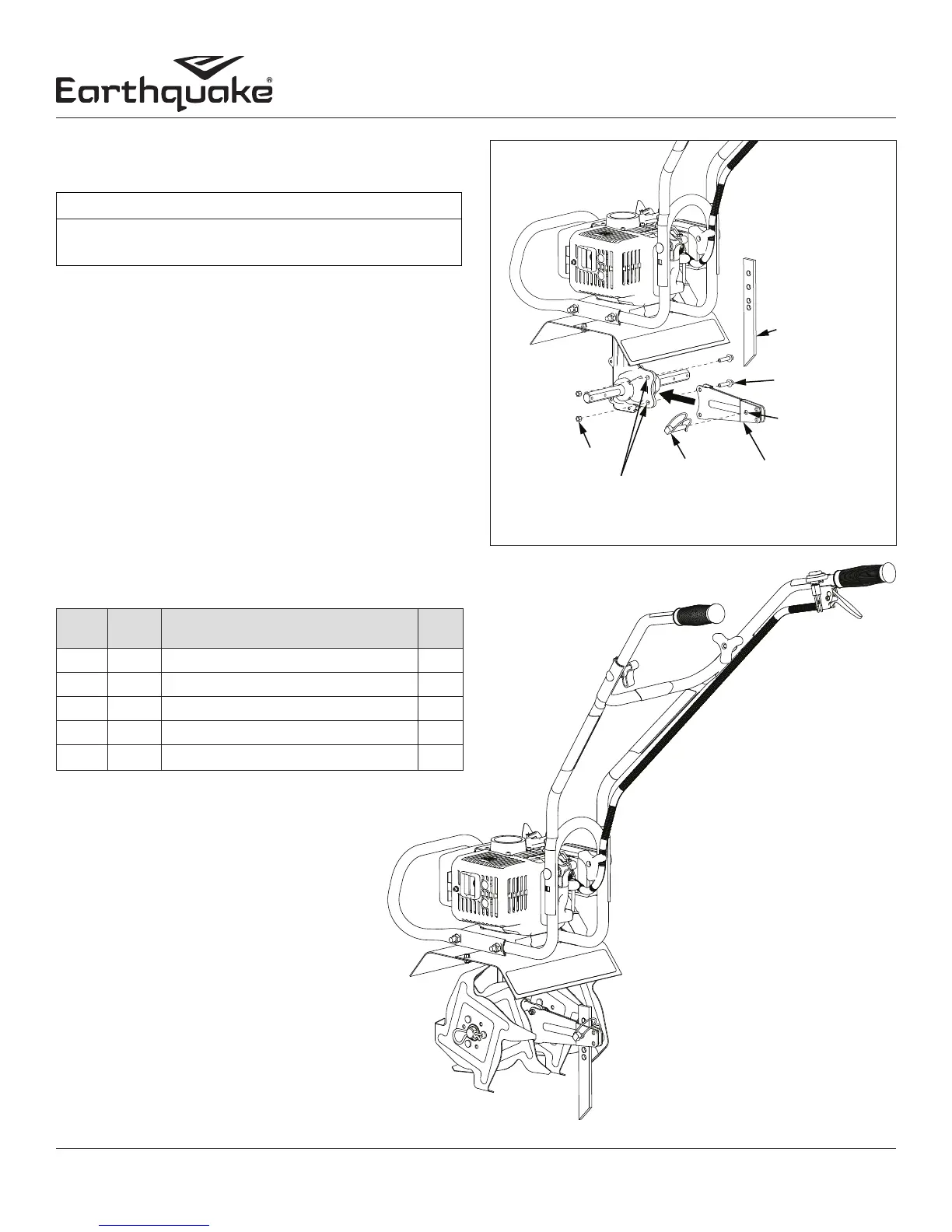

FIGURE 12
