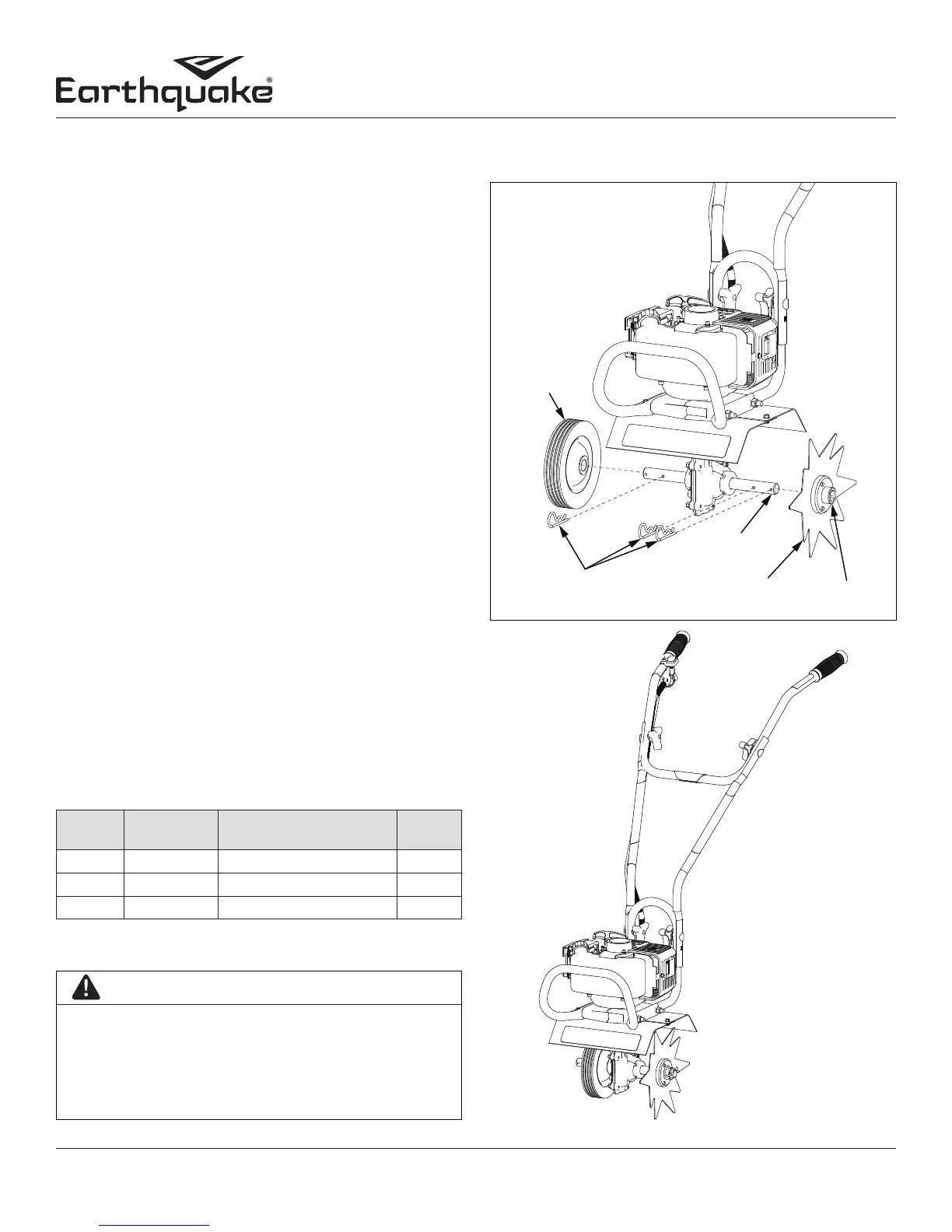

15073 BORDEREDGER KIT INSTALLATION OPTIONAL ACCESSORY
ITEM
NO.
PART NO. DESCRIPTION QT Y.
1 15009 BORDEREDGER TINE 1
2 46131 BORDEREDGER WHEEL 1
3 46134 HAIRPIN 1
PARTS BREAKDOWN
The Border-Edger Kit is a useful tool for making clean cuts in
the lawn along the borders of gardens, ower beds, walkways,
and driveways for a well manicured look. To install the Border-
Edger Kit, do the following:
INSTALLATION
1. Make sure the cultivator is not running by ipping the ON/
OFF switch to the OFF or STOP position.
2. Remove the hairpins from both sides of the tine shaft.
3. Remove the cultivating tines from the shaft, remembering
which direction they are facing.
4. Put the tines in a safe place and save the (2) hairpins, they will
be used on the Border-Edger Kit.
5. Slide the border-edger tine onto either side of the tine
shaft. Make sure that the hub collar of the border-edger tine
faces outward, away from the transmission of the cultivator.
SEE FIGURE 11
6. Take the (2) hairpins saved in Step 4 and insert them through
the inner and outer holes in the tine shaft on each side of the
border-edger tine to secure the tine blade in place on the
shaft. SEE FIGURE 11
7. Slide the border-edger wheel onto the opposite side of the
tine shaft as far as it will go.
8. Insert the remaining (1) hairpin, that came with the kit,
through the inner hole next to the wheel in the middle of the
tine shaft. SEE FIGURE 11
NOTE: A drag stake should not be used when using the
edger kit.
CAUTION
BE AWARE THAT THE CULTIVATOR COULD
UNEXPECTEDLY BOUNCE UPWARD, OR JUMP
FORWARD IF THE TINES STRIKE CONCRETE,
PAVEMENT, OR OTHER HARD SURFACES OR HARD
OBSTACLES BURIED UNDER GROUND.
BORDER
EDGER
WHEEL
BORDER
EDGER TINE
HAIRPIN
TINE SHAFT
HUB
COLLAR
FIGURE 11
