EarthQuake MC25 User Manual

Operator's Manual
MC25 2-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
23

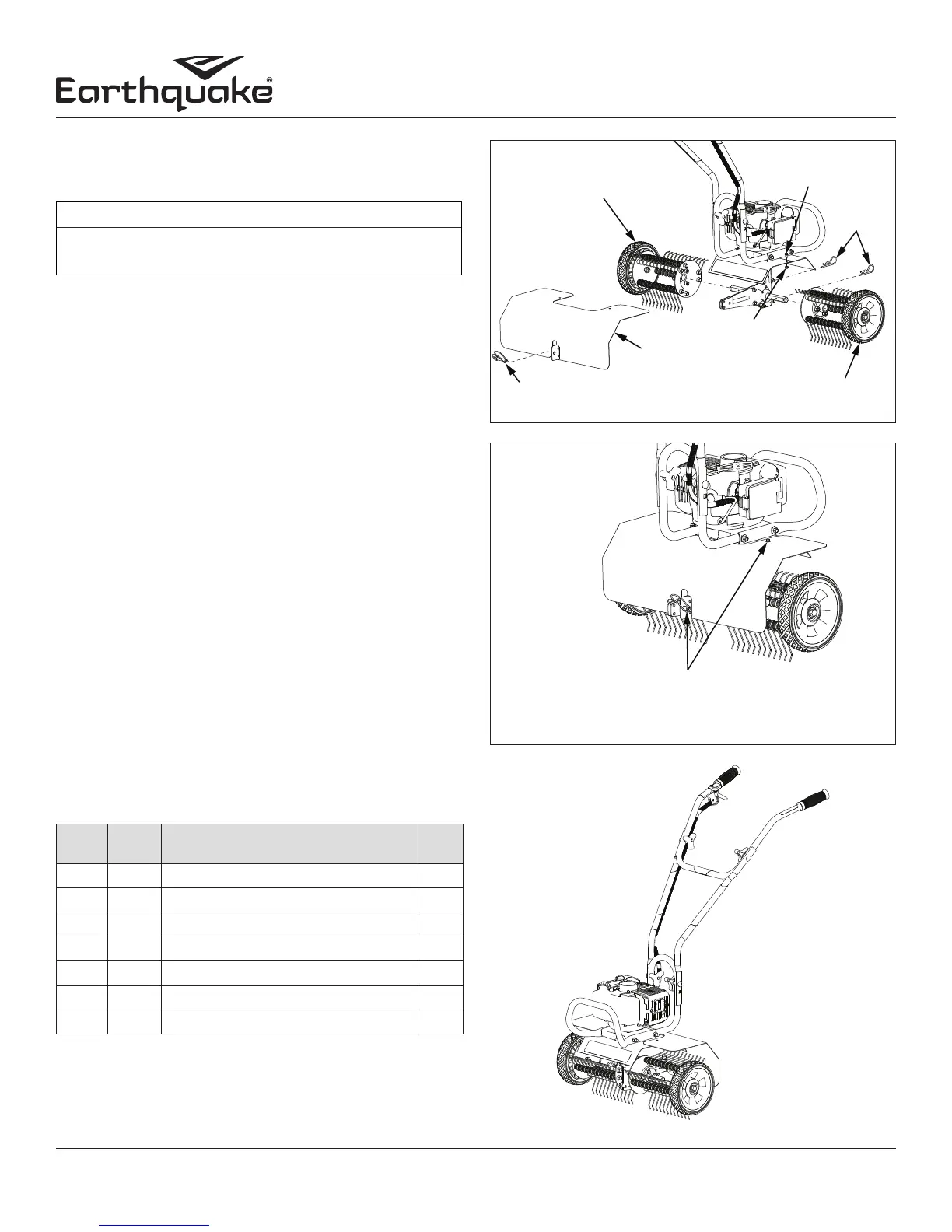

DK43 DETHATCHER KIT INSTALLATION
OPTIONAL ACCESSORY
IMPORTANT
THE 15290 DRAG STAKE MOUNT KIT IS REQUIRED
TO USE THE DK43 DETHATCHER KIT.
The Dethatcher Kit is very eective for lifting away the excessive
matted layers of thatch that can prevent moisture, oxygen and
nutrients from penetrating the soil and can harbor disease and
insects. Use in Spring, Summer, and Fall to bring life and color
back to your lawn. The MC25 unit requires the 15290 Drag Stake
Mount Kit to properly mount and use the DK43 Dethatcher Kit.
1. Flip the ON/OFF switch to the OFF or STOP position. Remove
the cultivating tines or other working tools.
2. Install 15290 Drag Stake Mount Kit according to instructions
but do not attach drag stake.
3. Slide dethatcher shield over the unit’s tine shield from the rear
of the unit and secure using bolts (176) and nuts (400020) from
cultivator tine shield. SEE FIGURES 13 & 14
4. Secure the lower part of the dethatcher shield to the drag stake
mount using the lock pin (18039) from 15290 Drag Stake Kit.
SEE FIGURE 14
6. Wheel extension plate (4676), bolts (46142) and nuts (4650)
are not needed to install dethatcher kit to MC25 unit.
7. Slide the Left and Right Dethatcher Assemblies onto the tine
shaft making sure the Right Assembly is installed on the right
side and Left Assembly is installed on the left side as dened
from the user’s position. SEE FIGURE 13
8. Secure dethatcher assemblies using the hairpins (46134). The
hairpins go through the inner holes of the tine shaft.
NOTE: A drag stake should not be used when using the
dethatcher kit.
ITEM
NO.
PART
NO.
DESCRIPTION QT Y.
1 46134 HAIR PIN 2
2 4647 BOLT M6 X 1.0 X 18 HEX FLANGE 2
3 4650 NUT M6 NYLOCK 2
4 4676 EXTENSION PLATE DETHATCHER 1
5 4707 DETHATCHER ASSEMBLY LEFT 1
6 4708 DETHATCHER ASSEMBLY RIGHT 1
7 4710 DETHATCHER SHIELD 1
*IMPORTANT: The 15290 Drag Stake Mount Kit is required
to use the DK43 Dethatcher Kit.
LOCK PIN
DETHATCHER SHIELD
LEFT DETHATCHER
ASSEMBLY
RIGHT DETHATCHER ASSEMBLY
HAIR
PIN
BOLT
NUT
SHIELD SECURED WITH
LOCK PIN AND TINE
SHIELD BOLTS
FIGURE 13
FIGURE 14
