EarthQuake MC25 User Manual

Operator's Manual
MC25 2-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
19
ITEM
NO.
PART
NO.
DESCRIPTION QT Y.
1 22256 TRANSMISSION ASSEMBLY 32:1 1
2 25186 BOLT M6 X 1.0 X 18 HEX FLANGE 6
3 18250 BOLT M6 X 1.0 X 20 HEX FLANGE 2
4 46144 DUST CAP 2
5 4606 WASHER FIBER 19 X 38 X 4 MM 2
6 4646 SEAL 19 X 32 MM TINE SHAFT 2
7 25159 BUSHING M19 X 25.5 MM D SHAPE 2
8 4610 SHIM 32 X 19 X 2.2 MM TINE SHAFT 2
9 25173 DRIVE SHAFT WORM 1
10 4616 SPACER 22 X 11 X 2.2 MM BUSHING 1
11 4614 BUSHING M11 X 19 MM D SHAPE 2

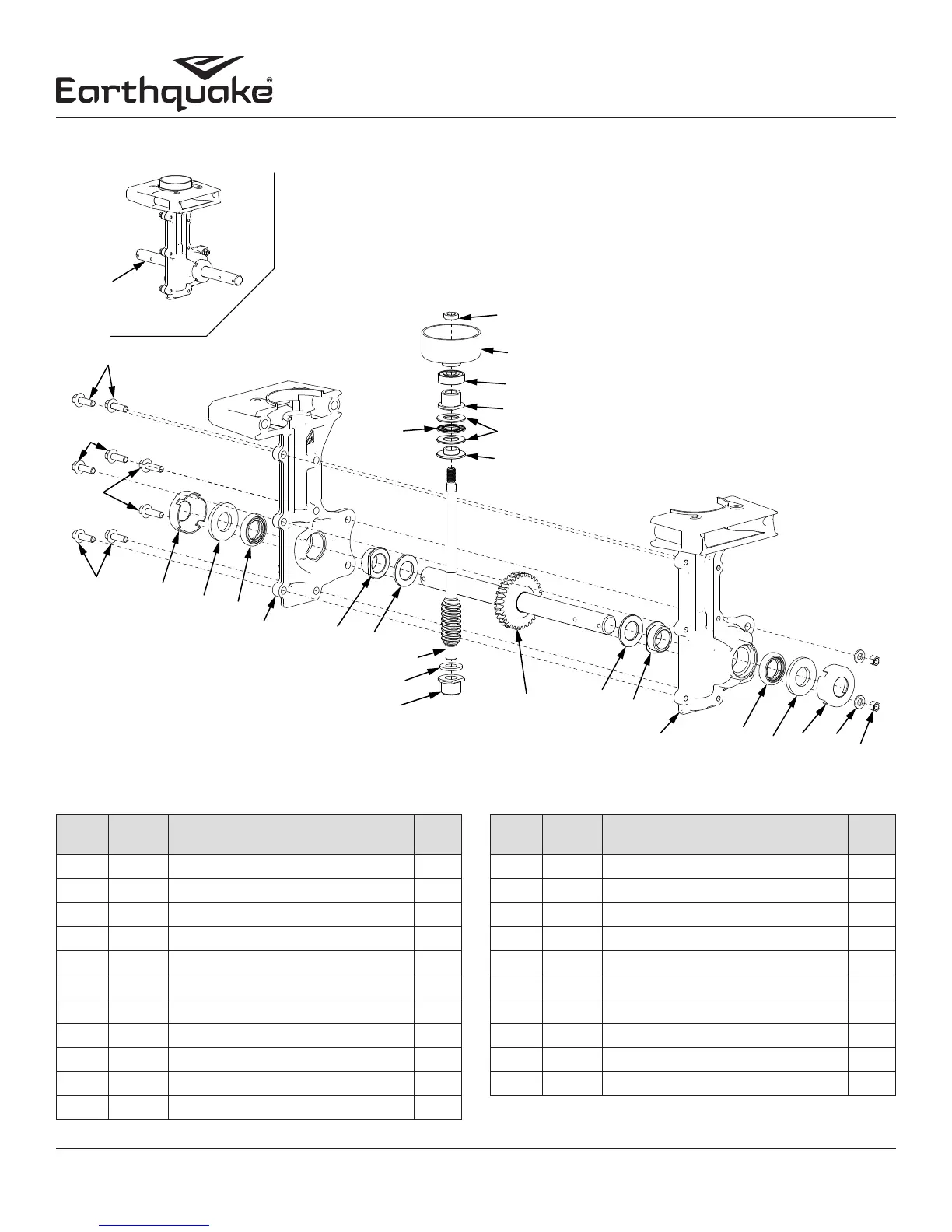

ILLUSTRATED PARTS BREAKDOWN 
Transmission Parts Explosion
ITEM
NO.
PART
NO.
DESCRIPTION QT Y.
12 4620 JAM NUT M8 X 1.25 HEX 1
13 25158 CLUTCH DRUM M8 THREADED 1
14 4623 BALL BEARING 9 X 26 MM 1
15 4618 WASHER 15 X 28 X 1.5 MM 2
16 4615 KIT THRUST BEARING 1
17 4619 THRUST BEARING 28 X 15 X 2 MM 1
18 4617 THRUST BEARING REDUCER 1
19 4651 TINE SHAFT WITH GEAR ASSEMBLY 1
20 WASHER M6 X 13 X 1.75 MM 2
21 4650 NUT M6 X 1.0 NYLOCK 2
1
2
2
3
2
4
5
6
1
8
9
10
11
12
13
14
11
15,16
16,17
18
19
1
20
21
8
6
5
4
7
7
W1200117
