EarthQuake MC25 User Manual

Operator's Manual
MC25 2-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
18
ITEM
NO.
PART
NO.
DESCRIPTION QT Y.
1 24808 FRONT BUMPER BLACK 1
2 4652 COTTER PIN 5/8 X 3/4 IN 2
3 4604 TINE "D" ASSEMBLY 1
4 4602 TINE "C" ASSEMBLY 1
5 24513 BOLT M8 X 1.25 X 165 HEX HEAD 2
6 4641 WASHER M8 CURVED 4
7 22254 ENGINE 25CC VIPER 1
8 26794 HANDLEBAR LOWER BLACK 1
9 400023 NUT M8 X 1.25 NYLOCK 2
10 4603 TINE "B" ASSEMBLY 1
11 4601 TINE "A" ASSEMBLY 1
12 22256 TRANSMISSION ASSEMBLY 32:1 1
13 176 BOLT M5 X 0.8 X 10 HEX FLANGE 2
14 27134 TINE SHIELD WITH WARNING 2
15 400020 NUT M5 X 0.8 NYLOCK FLANGE 2
16 25188 BOLT M5 X 0.8 X 40 HEX FLANGE 4
ILLUSTRATED PARTS BREAKDOWN 

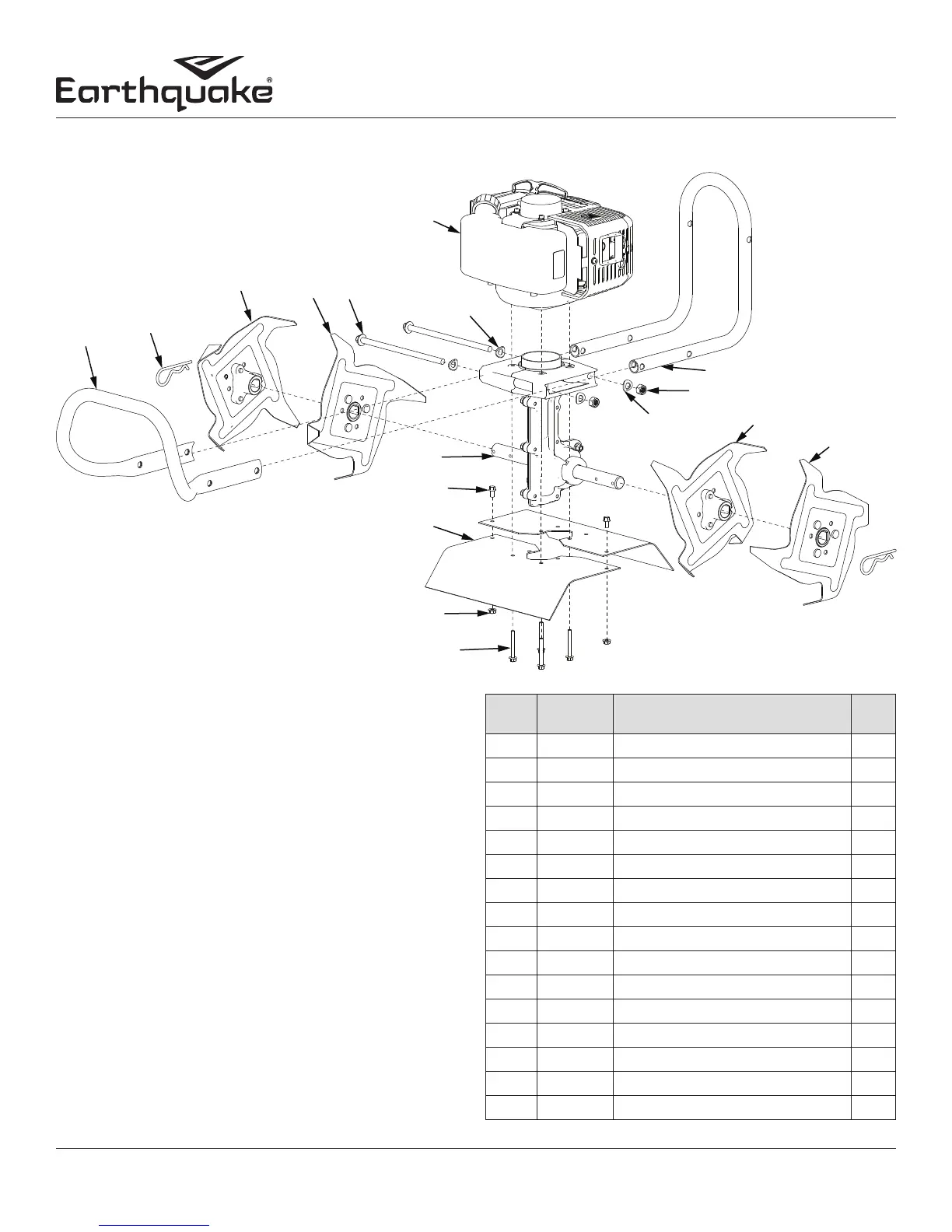

Hood & Tines Parts Explosion
1
2
3
4
5
6
7
8
9
6
10
11
12
13
14
15
16
