EarthQuake MC43 User Manual

Operator's Manual
MC43 Series Mini-Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 21
13
7
2
12
8
9
10
3
4
5
1
4
11
3
4
5
6
4

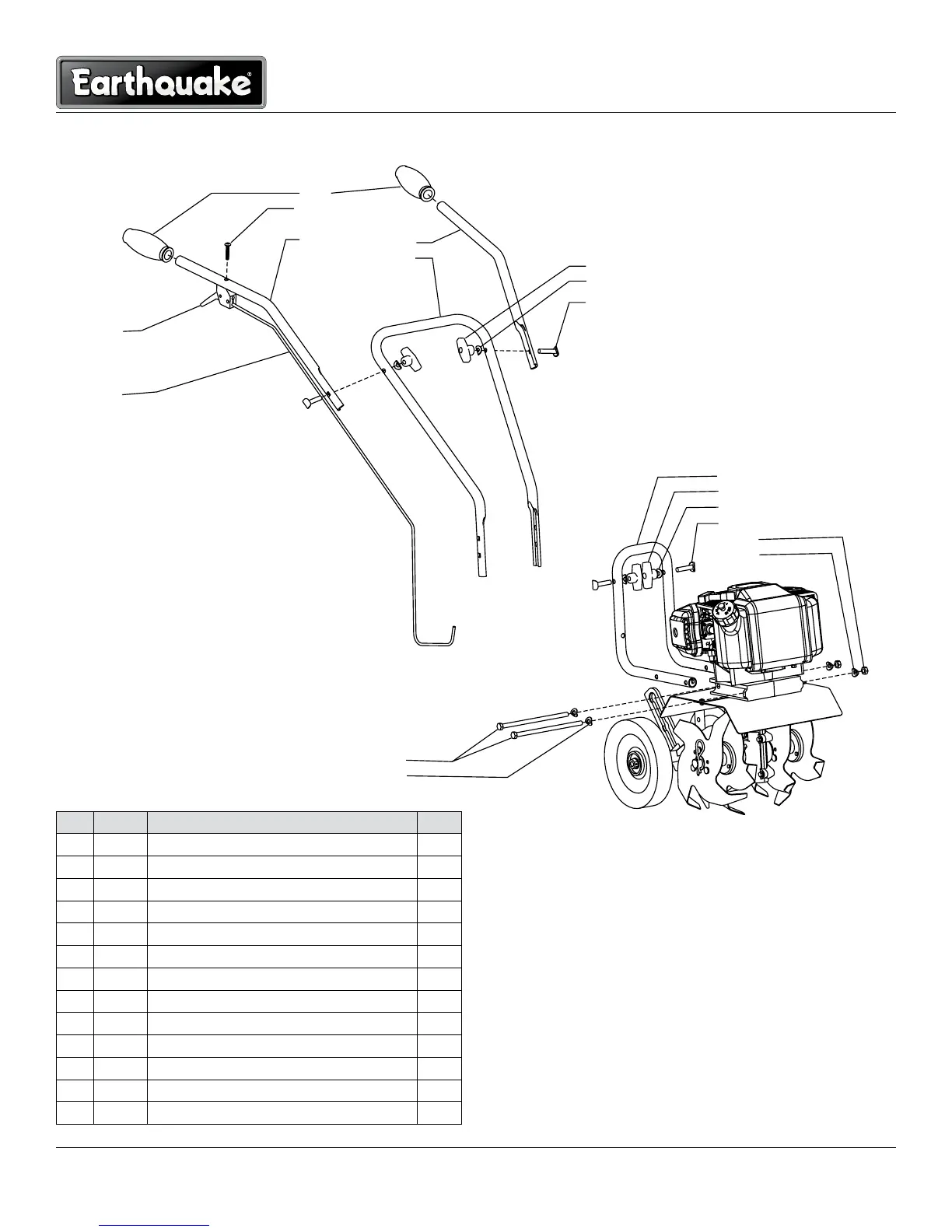

MC43 HANDLEBAR PARTS EXPLOSION
KEY PART # DESCRIPTION QT Y.
1 46141 BOLT, HEX HD M8 X 1.25 X 160MM 2
2 4639 GRIP, HANDLEBAR 2
3 4640 NUT, THANDLE 4
4 4641 WASHER 8
5 4642 BOLT, HANDLE CLAMP 4
6 4655 NUT, HEX HD M8 X 1.25 2
7 4667 THROTTLE CABLE 1
8 4689 HANDLEBAR, UPPER RIGHT 1
9 4690 HANDLEBAR, UPPER LEFT 1
10 4693 HANDLEBAR, MIDDLE 1
11 4695 HANDLEBAR, LOWER 1
12 4814 BOLT, PHILLIPS TRUSS HD ZN 1024 X 11/4 1
13 4819 TRIGGER ASSEMBLY, LONG THROW W/O CABLE 1

EarthQuake MC43 Specifications

General

Engine Displacement	43cc
Tilling Depth	up to 8 inches
Tilling Width	6 to 10 inches
Fuel Capacity	0.21 gal (0.8 L)
Warranty	5-Year Limited
Engine Type	4-Cycle OHV
