Operator's Manual
MC43 Series Mini-Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 27
DK43 Dethatcher Kit (ts both Models MC43 & MC43E or stand-alone as MD43)
46145
Detent Pin
Nuts/Bolts (4 each)
4650/46142
4676
Plate Wheel Extension
The Dethatcher Kit is very eective for lifting away the excessive matted layers of thatch that can prevent moisture, oxygen and
nutrients from penetrating the soil and can harbor disease and insects. Use in Spring, Summer, and Fall to bring life and color back
to your lawn.

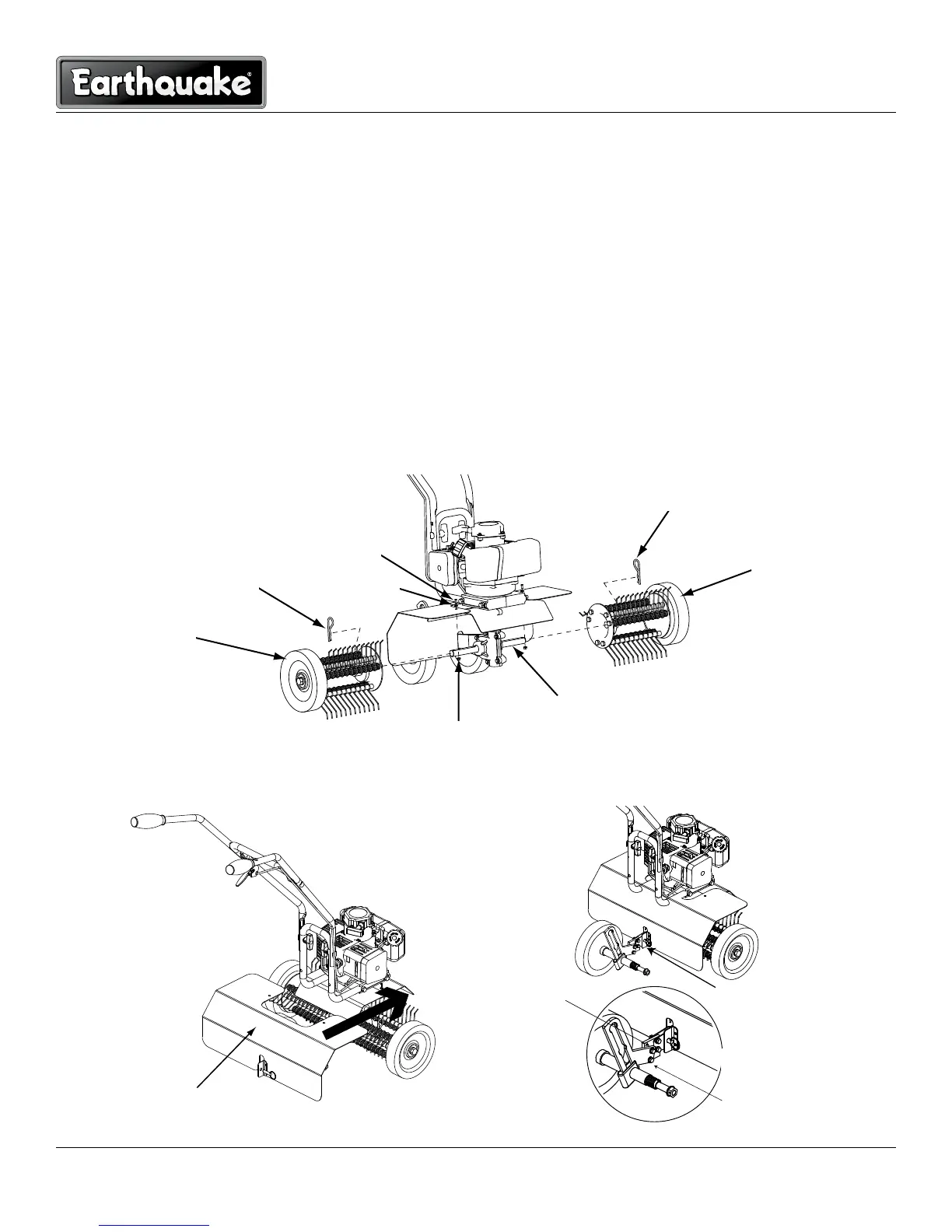

1. Disconnect spark plug wire from spark plug. Remove the cultivating tines (if so equipped). Refer to exploded view below for
detailed assembly.
2. Slide the Left and Right Dethatcher Assemblies onto the tine shaft making sure the Right Assembly is installed on the right side
and Left Assembly is installed on the left side as dened from the user’s position.
3. Secure dethatcher assemblies using the hairpins (46134).
4. Slide dethatcher shield over the unit’s tine shield from the rear of the unit and secure using bolts (4694), washers (4692), and nuts (4694).
5. Secure the lower part of the dethatcher shield to the drag stake mount using the detent pin (46145). Re-connect spark plug wire.
6. Install wheel extension plate (4676) using additional bolts (46142) and nuts (4650).
NOTE: The drag stake should not be used when using the dethatcher kit.
4708
Right Side
Dethatcher
Assembly
4707
Left Side
Dethatcher
Assembly
46134
Hairpin
4691
Bolt
4694
Nut
4692
Washer
46134
4651
Tine Shaft
DK43 DETHATCHER KIT INSTALLATION OPTIONAL ACCESSORY
4691
bolt
4692
washer
4707
left side
dethatcher
assembly
4651
tine shaft
4694
nut
4708
right side
dethatcher
assembly
46134
hairpin
46134
slide shield forward
4676
plate wheel extension
446145
detent pin
4650/46142
nuts/bolts (4 each)
