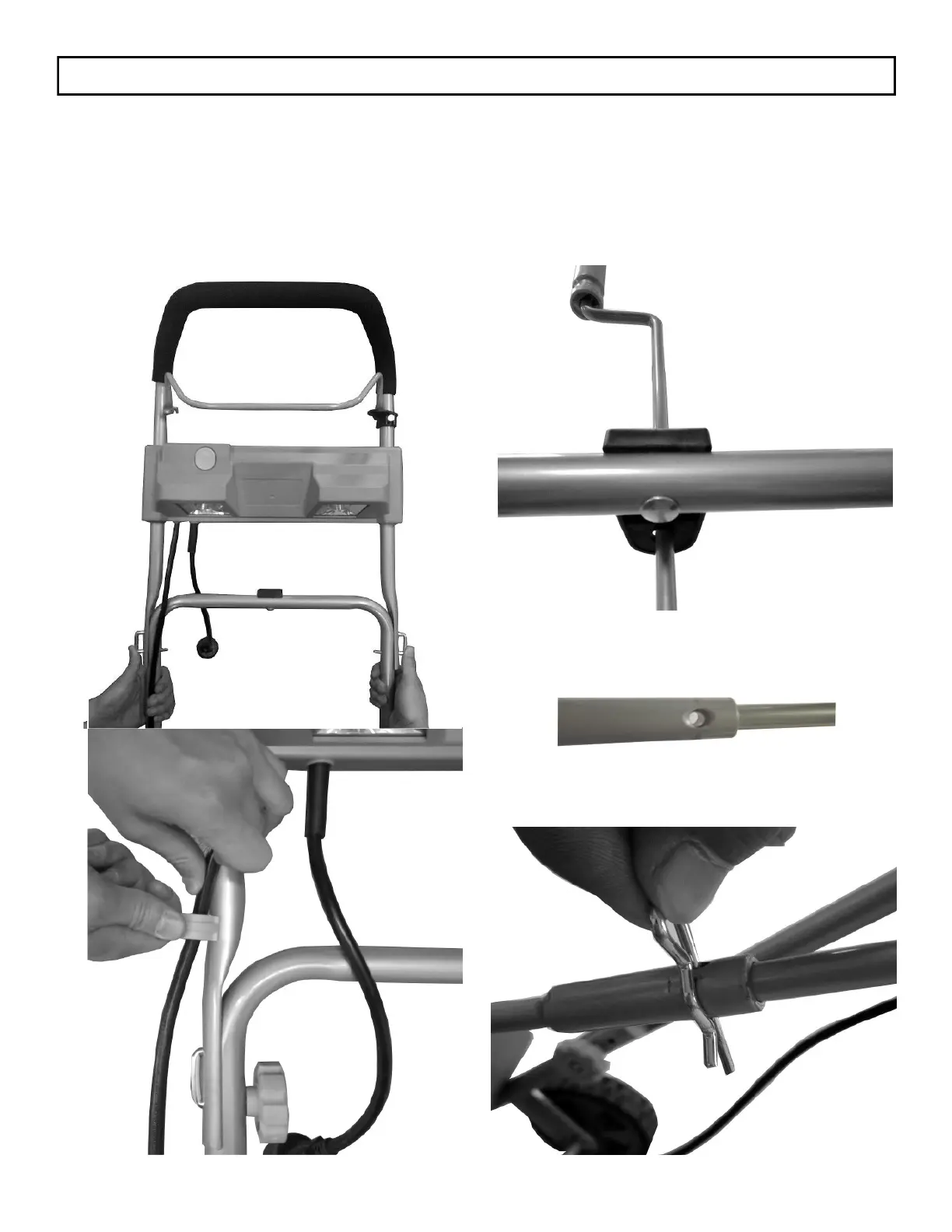

INSTALLING CHUTE CRANK
Install the upper chute crank through the bracket
located on the center handle. (See Fig 8)
Align the holes in the upper and lower cranks and
insert the cotter pin through the holes as shown to
secure. (See Fig 9 and Fig 10)
Turn the lever left and right to verify the proper
functioning of the crank and the chute.
ASSEMBLY
7
Model SN71022
INSTALLING UPPER HANDLE
Align the holes on the upper handle with the holes in
the center handle as shown. (See Fig 6)
Insert threaded end of J bolt through both handles with
the threaded end facing inside.
Install the handle knob and tighten secure.
Repeat on the opposite side.
Secure the cable clip to handles. (See Fig 7).
Fig. 8
Fig. 9
Fig. 10
Fig. 7
Fig. 6
To Next Page
