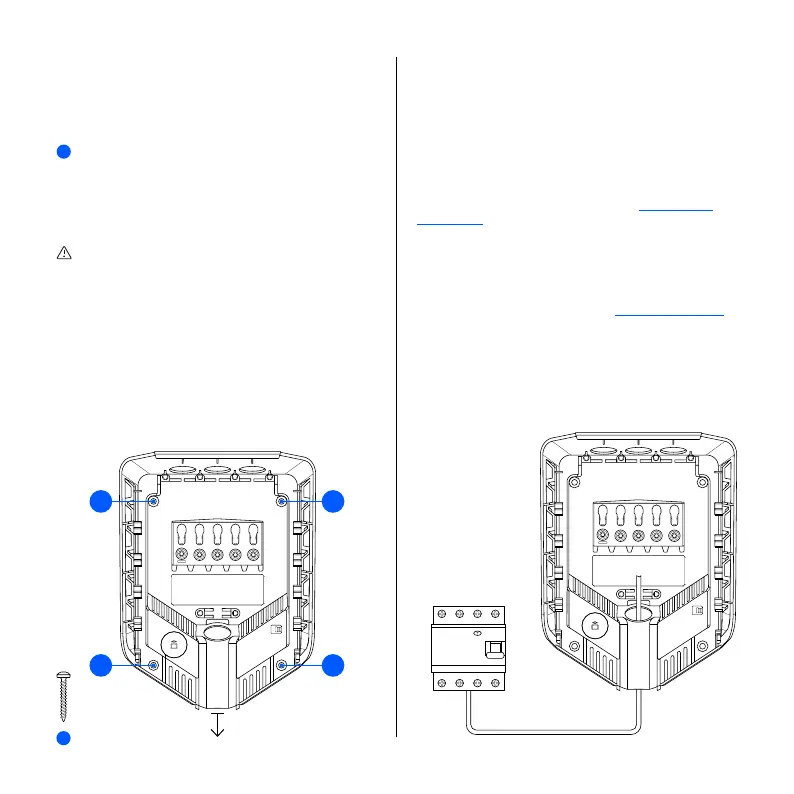

Fix the backplate to a solid, non-perforated wall
or structure with sufficient load-bearing capacity
using the 4 wall screws provided in the mounting kit.
Use suitable wall plugs for mounting and observe
the local regulations for recommended installation
height.
CAUTIONS
— The installation wall must cover the entire back of
the product. If this is not possible to achieve, it is
possible to use the Easee Mount.
— The area should not be exposed to direct rain, direct
sunlight or explosive gases. A physical barrier is
recommended to protect the charger.
— Install at a height of 130–140cm, with an angle no
more than +/- 3 degrees from vertical. Suggested
installation height for accessibility: 80–95 cm.
1
Backplate
Mounting
2
1
1
Fuse box / enclosure
Adding external
protection
3
External Type A RCD protection is required for each
backplate with Charge Lite. The RCD must meet the
regulations and requirements stated in Planning the
installation.
NOTE
If you will have multiple charging points at the same
time, you must have a requisite external Type A RCD
protection for each backplate with an Charge Lite
charger. Examples can be found at support.easee.com.
1
x 4
1
1
Installation height
