C
INSTALLSTION DATA SHEET
TERRIER SERIES SWING GATE OPENER USER MANUAL
3

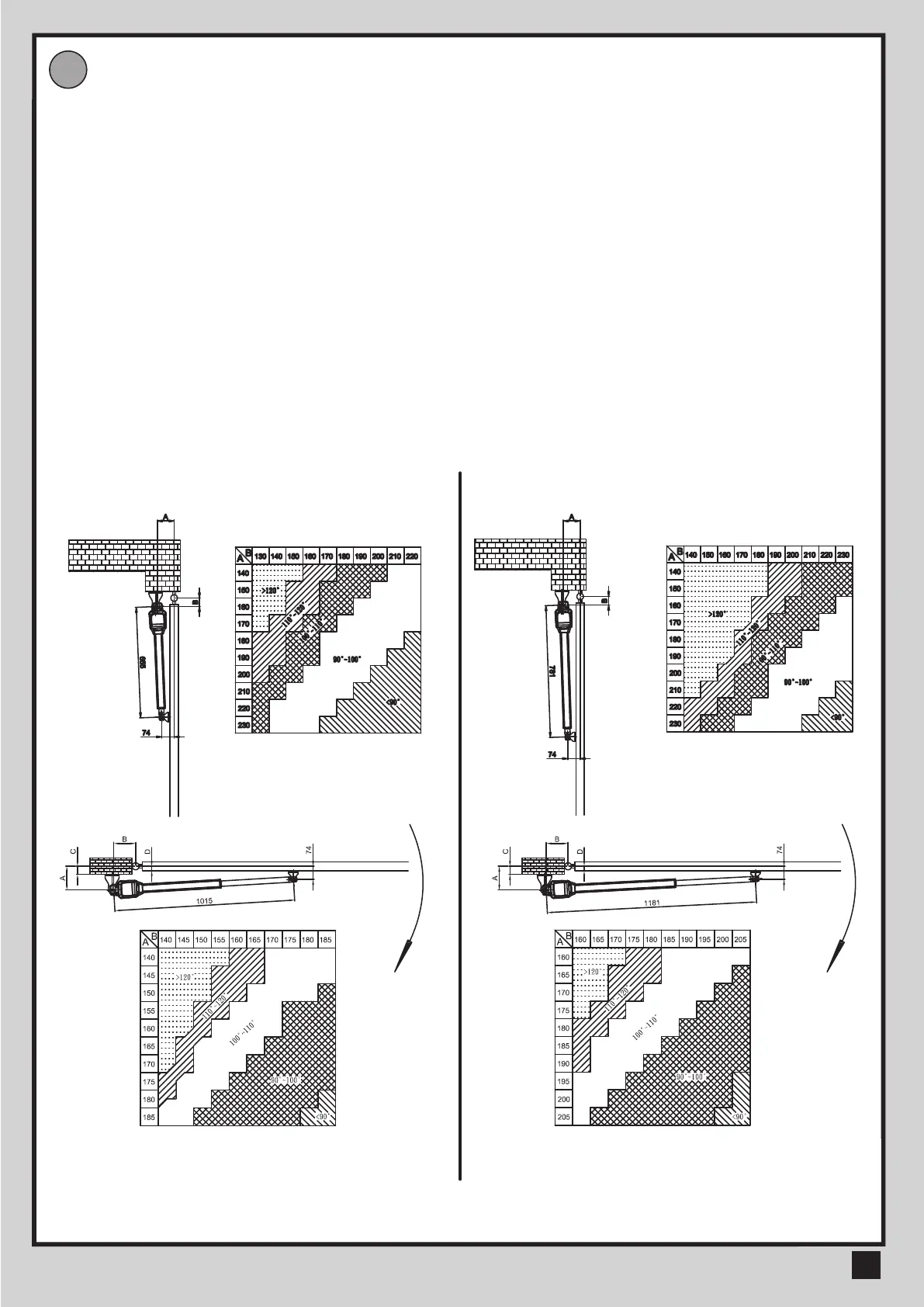

Comply with the measures shown on the chart for proper installation. Adjust the gate structure
to fit it for best automation, if necessary.
Before preceding the installation, be sure that gate moves freely and that:
1) Hinges are properly positioned and greased.
2) No obstacles in the moving area.
3) No frictions between two gate leafs or with the ground while moving
4). “C” value is 88mm.
5). “D” can be measured from the gate easily.
6). “A” = “C” + “D”
7). The value of “B” can be calculated from the value of “A” and the leaves opening angle.
Ex. If “A”=160mm with the leaves opening angle of 100 degrees, then the value of “B” is
approximate 200mm.
**Please make sure “B” and “A” are similar or the same in value that the leaves can be operated
smoothly, also to reduce the burden of the motor.
TERRIER150 TERRIER200
