5Toxin Shield+ | Installation & Service Manual
Before Starting Installation (Cont’d)
PLAN HOW YOU WILL INSTALL THE FILTER
» You must rst decide how to run in and out pipes to the lter. Look at the house main water
pipe at the point where you will connect the lter. Is the pipe soldered copper, glued plastic or
threaded brass/galvanized? What is the pipe size?
» Determine the direction of the water ow in the home, then turn off incoming water supply valve.
Plumb the incoming water line into the bypass valve side marked “IN”. Plumb the line leaving
the lter into the bypass valve side marked “OUT”.

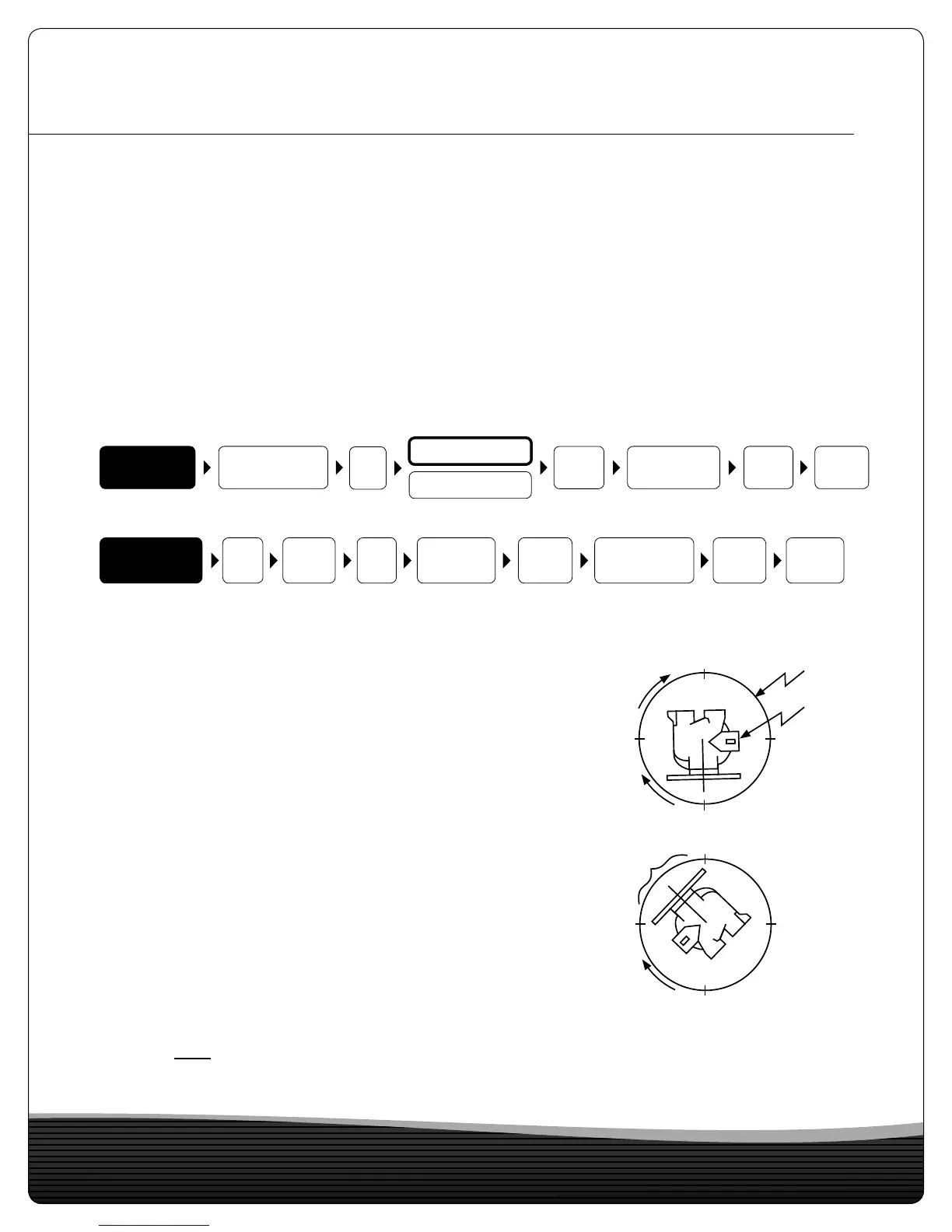

PRODUCT INSTALLATION SEQUENCE
Unless special equipment is available to mechanically torque
the valve to the tank, please follow the steps below:
1) Hand spin the valve onto the tank, ensuring the threads
are not cross-threaded. Note: All Fleck valves are right-
hand threads, or clockwise, to install.
2) Rotate the valve freely without using force until it comes to a
stop (this position is considered zero).
3) Rotate valve clockwise from zero to between ¼ turn and ½
turn (see diagram to the right).
¼ Turn
Tank
Valve
½ Turn
Zero
¼ Turn
Good
Zone
Rotation
½ Turn
Zero
INSTALLING VALVE HEAD ON TANK
DO NOT exceed 25 ft lbs of torque when installing this
product. Exceeding this limit may damage the threads
and cause failure.
Note: Do NOT use the drain connector to tighten the valve on the tank. This can break the
drain connection or crack the valve.
Municipal
Water Main
City Water
Water
Pump
Pressure
Tank
Acid
Shield
Acid
Shield
Toxin Shield+
Toxin Shield Cartridge
Lead
Shield
Lead
Shield
No-Salt Conditioner
1100/2200/3500
No-Salt Conditioner
1100/2200/3500
Bacteria
Shield
Bacteria
Shield
Iron Shield+
1000/2000
RevitaLife
RevitaLife
Private Well Water
