Instruction Book
Effective: November 2017 Page 18
For more information visit: www.Eaton.com IB131016EN

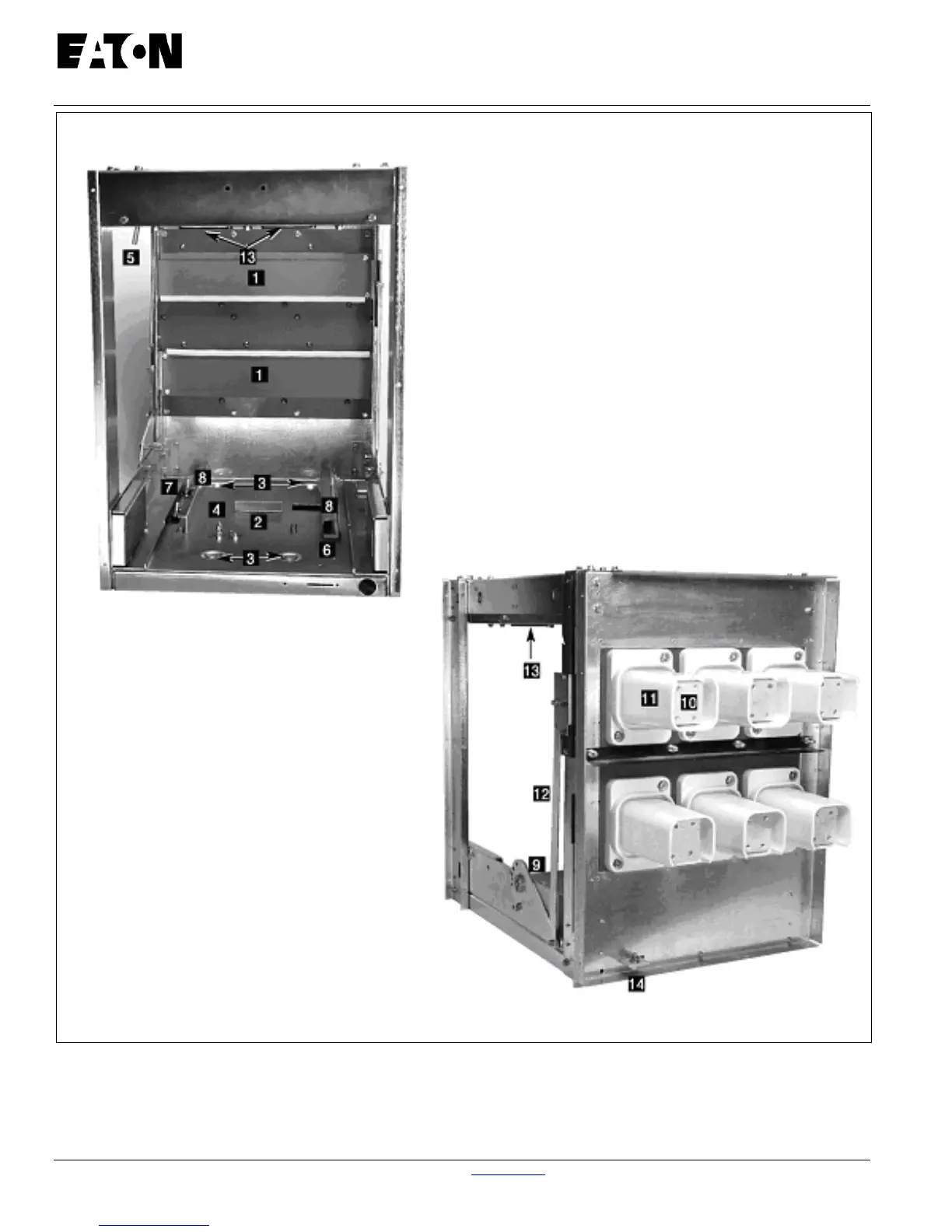

Figure 3-7 Front and Rear Views Drawout Cassette (except 25kA, 2000A and all 31.5/40kA, breaker compartment
barrier not shown)
8. Anti-tilt Channel - 70D3220H06
9. Breaker Position and Safety Shutter
Padlocking Mechanism - 68B3216H04
10. Primary Connection Pad - 68B3219H01
11. Primary Insulating Tube (Spout)
70D3211H01
12. Safety Shutter Operating Arm
68B3332H01
13. Secondary Umbilical Cord Connector
Cell Wiring Harness - 69C3259G01
Male Connector Secondary Block
73477JAA01
14. Customer Earth Connection - 69C3266H01
1. Automatic Primary Safety
Shutters (Closed Position)
69C3219H04
2. Cradle Stop/Hook Stop
68B3315G01
3. Mounting Holes
(Base Tray Assembly) - 69C3339G01
4. Rejection Interlock Pins
68B3049G01
5. Interlock Lever (Secondary
Contact) - 67A3277H23
6. Earthing Bar - 69C3266H01
