6 EATON EP Control for Heavy Duty Series 2 Piston Pumps Parts & Service 08-10-0002-EN-0901 September 2001

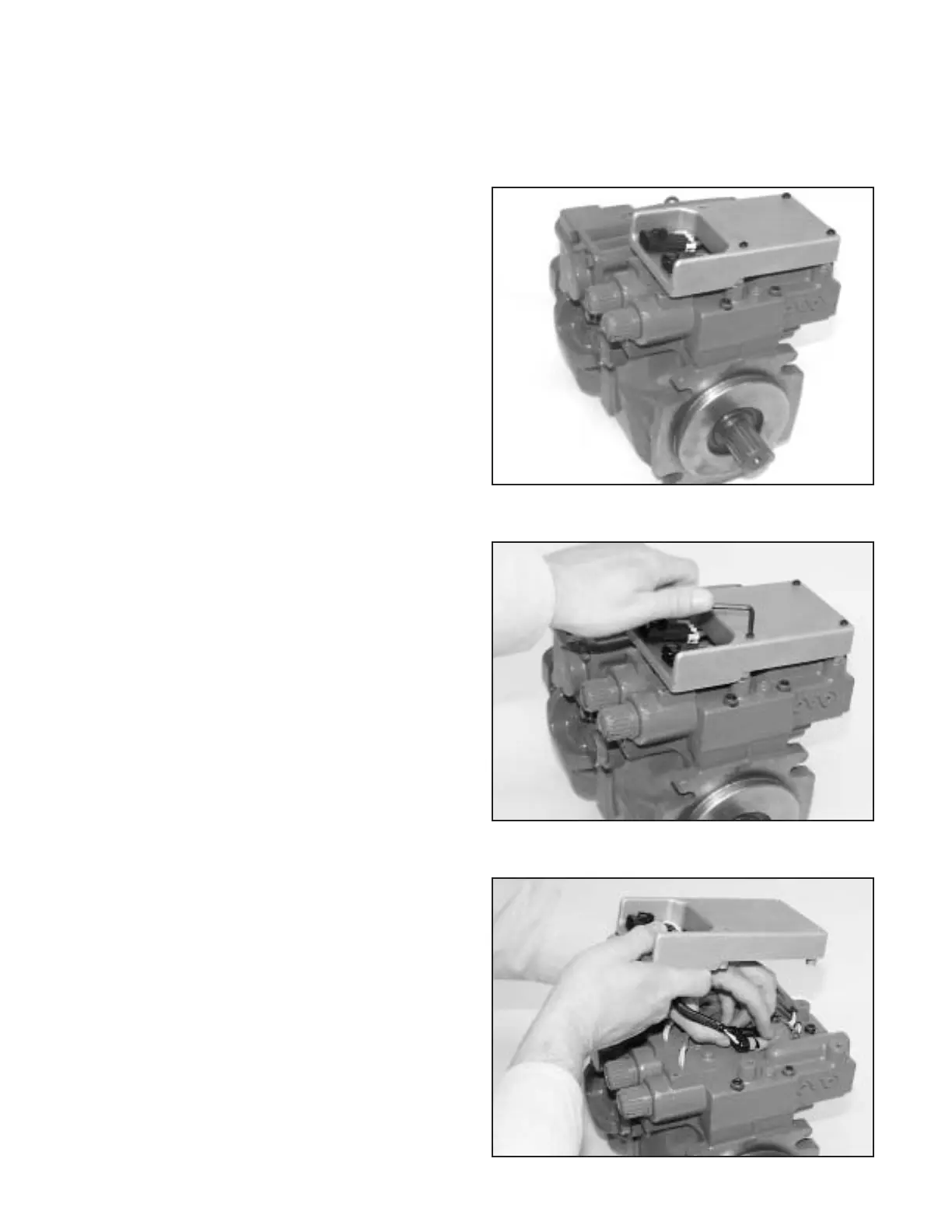

Disassembly
Step 1
Disconnect all power to the
input device. Carefully
disconnect the three-pin
connector between the EP
Control electronics module and
the command input device by
releasing the connector latches.
Thoroughly clean the outside of
the EP Control and surrounding
pump surface.
Step 3
Disconnect the four-pin
connector between the EP
Control electronic module and
the solenoid coils. Caution must
be used when disconnecting
these connectors as they are
latched with keepers.
Step 2
Using a 1/8" bit socket or hex
key, remove the three 10-24
button head cap screws and
lockwashers.
