21OPERATION AND INSTALLATION INSTRUCTIONS MN280075EN July 2018
Form 6 microprocessor-based rack-mount recloser control
9. All control programming entered and verified by
appropriate personnel.
ote:N Refer to Refer to Service Information S280-70-4
(ProView 4.X.X) or S280-70-21 (ProView 5.X.X)
Form 6 Control Programming Guide for for
additional information.
10. Customer connections for remote and supervisory
operation checked and completed in accordance with
proper shielding and surge protection.
NOTICE
External leads must be shielded and the shield must
be grounded at both ends. Terminate each lead with
a 320 VAC, 150 Joules metal oxide varistor (MOV), or
equivalent, at the remote end. Attach MOVs between
the leads and ground. Failure to properly shield and
protect leads can result in equipment damage and/or
unintentional operation.
IMPORTANT
Shielding and Surge Protection of Supervisory Cables
All supervisory operation and control monitor leads must
be protected within shielded cables. Refer to Figure15 or
Figure16 as appropriate.
SS1
TB1
1
2
35
7
91113151719
4
68
10
12
14
16 18
CI1
CI2 CI3
SS1 CO1
CO2CO3
CO4
CI1 CI2 CI3
CO1
CO2
CO3
CO4
Remote Trip and Lockout
Supervisory Trip and Lockout
Supervisory Close
Control
Lockout
Status
(Not
Lockout)*
Recloser
Status
(Recloser
Open)*
A
B
Hotline
Tag
Status
(Hotline
Tag Off)*
Control
OK
Status
(Control
Not OK)*
Ground Trip
Blocked
Status
(GRD TRIP
Normal)*
Customer Wiring
Remote/Supervisory Common
Customer-Supplied
Voltage Inputs**
**Whetting voltage is also available from
the Form 6 Recloser Control on
Terminal Block TB5. Refer to Figure 16.
Note: Contact output relays revert to
de-energized positions as shown
upon downloading new schemes
or Workbench files.
*Relay Contacts shown
for Indicated Status.
**Whetting voltage is also available from the
Form 6 Recloser Control on Terminal Block
TB5. Refer to Figure15 or Figure16, as
appropriate.

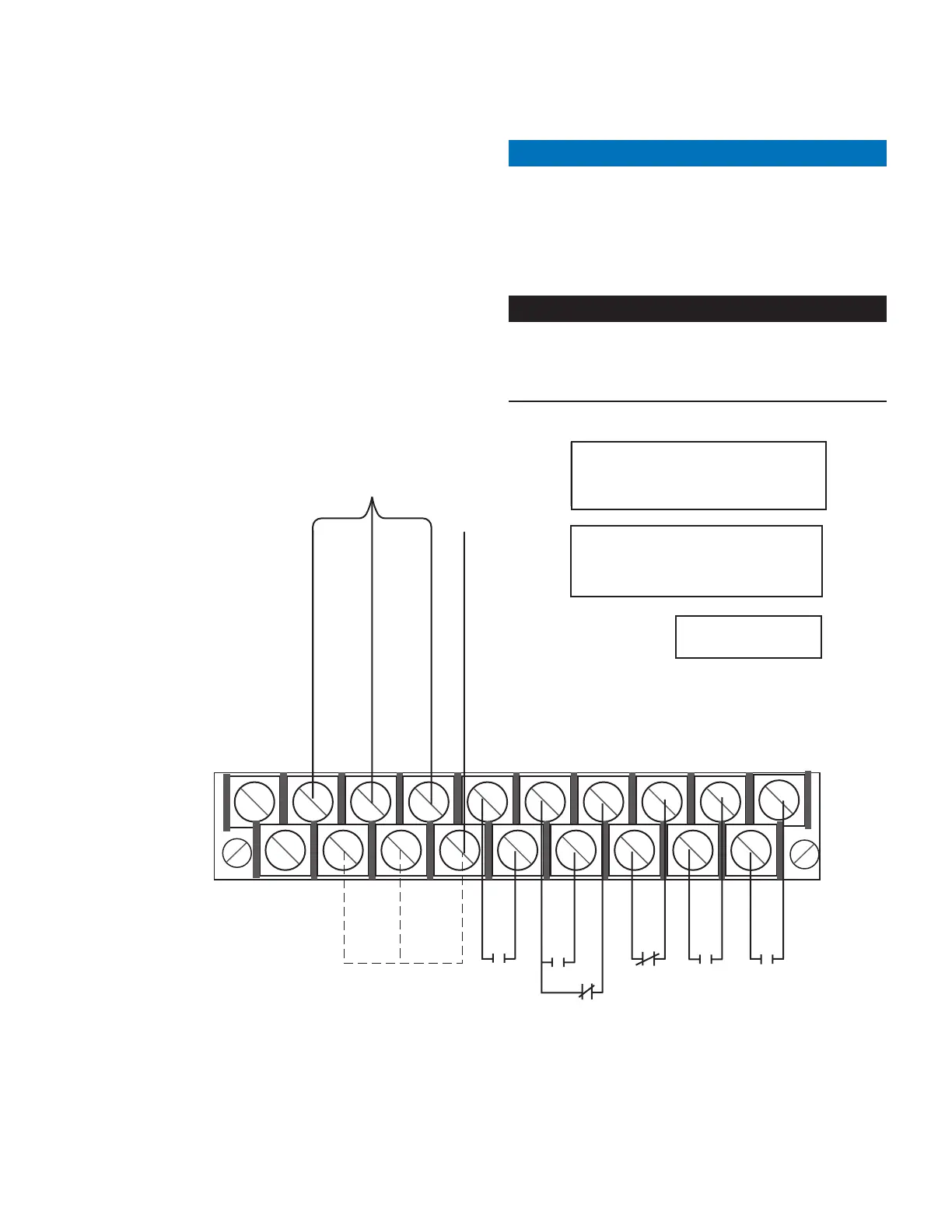

Figure13. Form 6 recloser control standard discrete interface board and default configurations. These default contact
input/outputs are completely configurable via the idea workbench
