Eaton 600 A 15 kV class push-OP Assembly/Installation Instructions

Catalog data MN650002EN
Effective February 2019
Deadbreak apparatus connectors
Step 7.
Clean insulation
ote:N Do not apply solvent directly to cable.
•
Clean insulation thoroughly with solvent dampened rag,
wiping from conductor end toward insulation shield.
(Refer to Figure 8.)
•
Ensure that all traces of conductive residue are re moved.
Step 8.
Lubricate and install cable adapter
•
Lubricate exposed cable insulation.
•
Lubricate inside of cable adapter.
•
Slide small end of cable adapter over cable using twisting
motion until small end is flush with tape marker. (Refer to
Figure 9.)
•
After sliding the cable adapter into position make sure
that no bulge is present (see Figure 10).
Equipment Damage/Personal Injury. Improperly
positioned cable adapter may result in equipment
damage or personal injury.

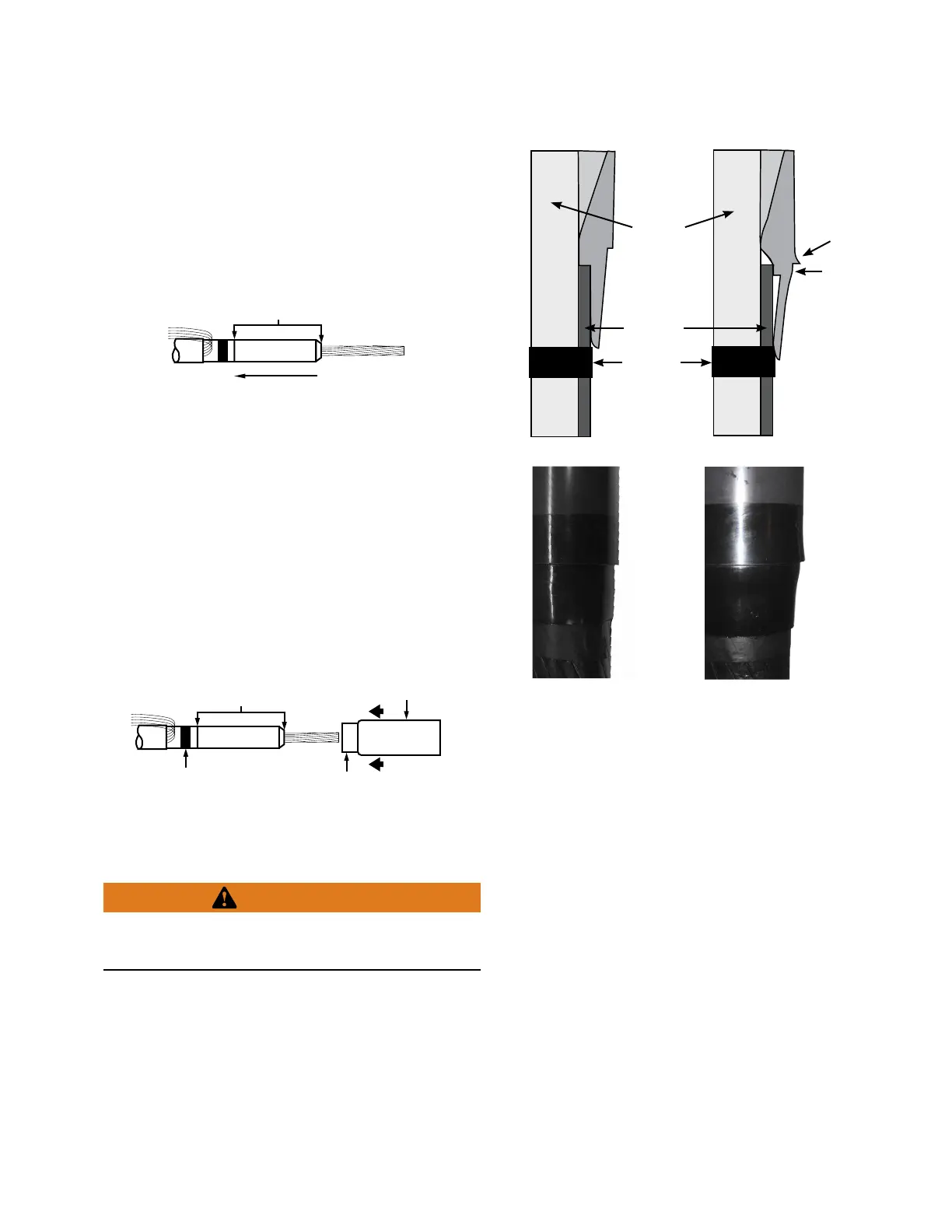

Figure 9. Line illustration of insulation cable adapter.
Lubricate Insulation
Lubricate
Cable Adapter
Tape Marker
Straight
Straight
Not Straight
Not straight
bulge
Correct positioning
Cable
insulation
Cable
insulation
shield
Tape
marker
Incorrect positioning
Major OD
flared out
Figure 10. Cross sectional view of cable adapter
positioning.
Figure 8. Line illustration of insulation cleaning.
Wiping Direction
Wipe Insulation
WARNING
5
600 A 35 kV class BOL-T connector assembly installation instructions MN650002EN February 2019
