5. Remove the strain relief screw (retain the screw and
strain relief device) and disconnect the white connector
from the side of the CL-7 control panel. See Figure 37.
6. Using a 3/8-inch wrench, remove the green ground wire
from the side of the panel; retain the wire, washer, and
nut. See Figure 37.

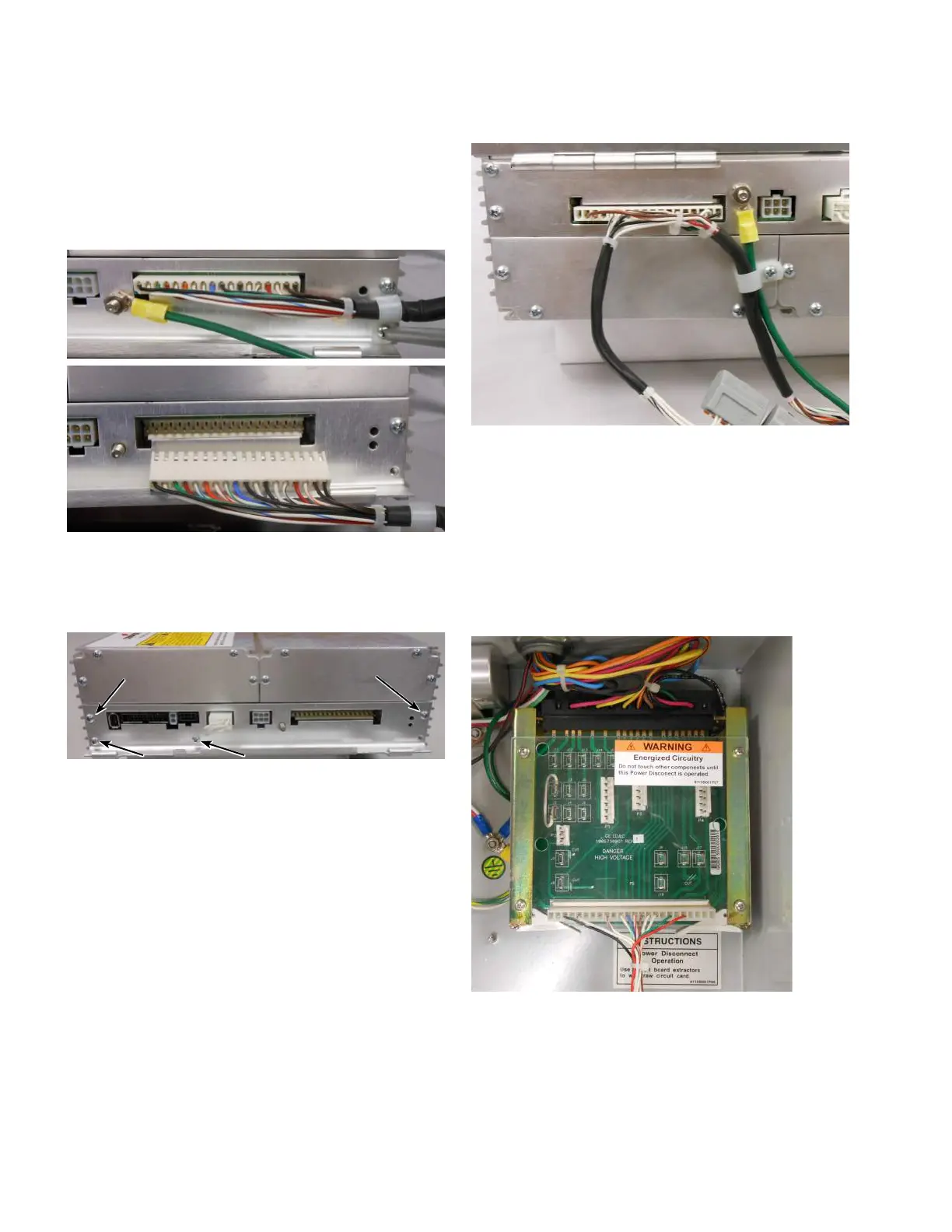

Figure 37. Removal of existing ground wire and wiring
harness
7. Remove the remaining four screws holding on the
hinged side panel; retain the screws. See Figure 38.
Figure 38. Removal of hinged side panel from CL-7
control
8. Install the General Electric hinge bracket on the right
side of the control using the screws retained from
Step 5 and the last step. See Figure 36.
9. Install the General Electric pin-style wiring harness
(Item1). See Figure 39.
10. Install the green ground wire using the washer and nut
retained from Step 6. See Figure 39.
11. Route the wiring harness through the strain relief
device retained in Step 5. Secure using a screw as
shown in Figure 39.
Figure 39. Installing ground wire and General Electric
pin-style wiring harness
12. Install the CL-7 control panel into the control box by
mounting it onto the existing hinges using the hinge
pins retained from Step 1.
13. Connect the green ground wire to the enclosure
ground.
14. Install the wiring harness pin connector into the
terminal plug on the circuit board removed in Step 2.
See Figure 40.
Figure 40. General Electric circuit board with pin
connector
15. Reinstall the circuit board into the back panel of the
enclosure by lining up the circuit board and pressing up
firmly. Refer to Figure 40.
14
CL-7 Control Panel Retrofit
InstallatIon InstructIons MN225018EN April 2018
