Assembly

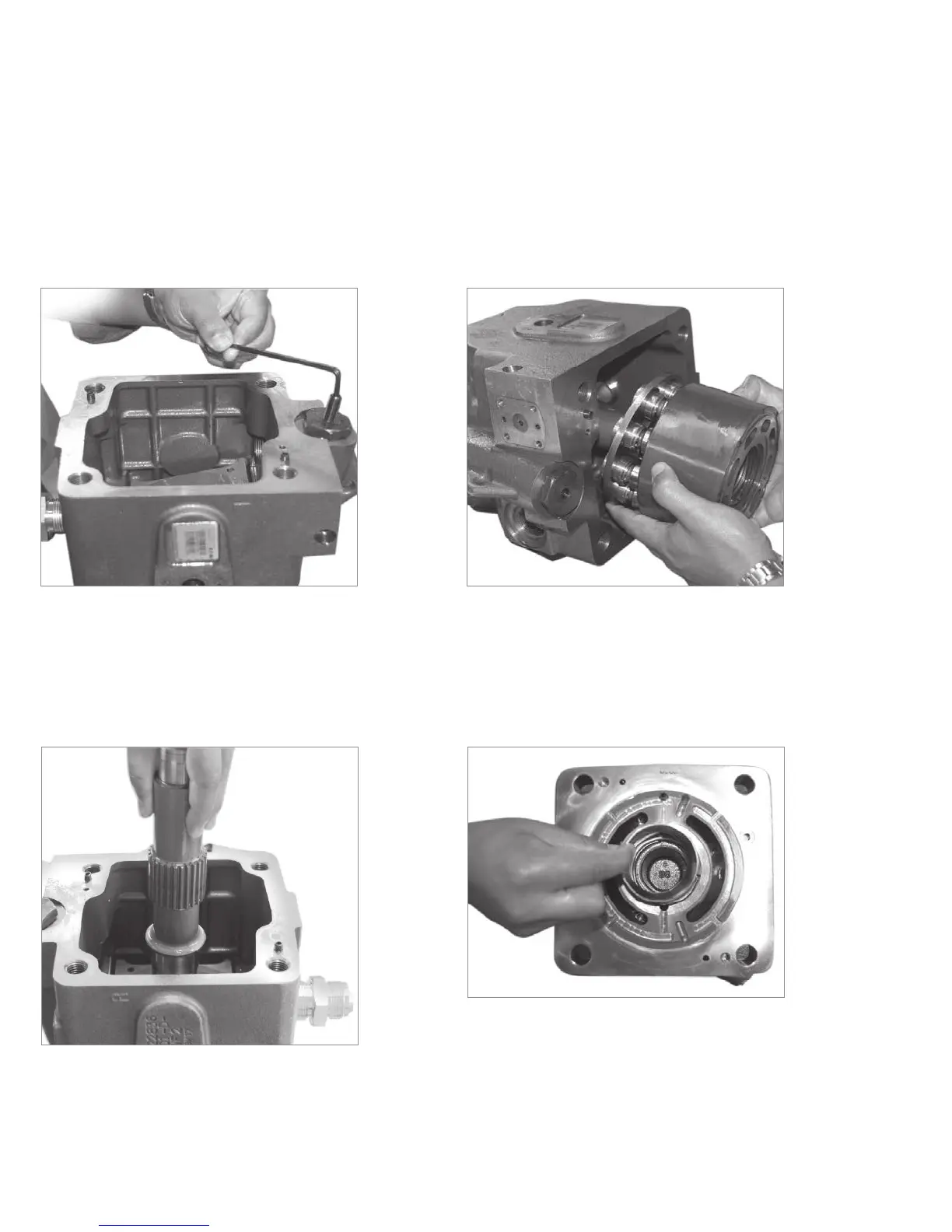

11. Install shaft
Note: Install Swashplate Locator Tool 9900773-001
and adjust the screw until the swashplate is near neutral
(will look flat in housing).
Caution: Use care while inserting shaft end
through shaft seal.
10. Install swashplate locator tool and adjust
Note: Carefully install Rotating Group. Ensure
shaft is engaged with bearing race while installing
Rotating Group.
12. Install the rotating group
13. Install bearing race
Note: Install shims, if required, and the bear-
ing race to ensure correct number of shims are
used to get the correct end play. Shim installation
instructions are on page 26.
To Next Page
